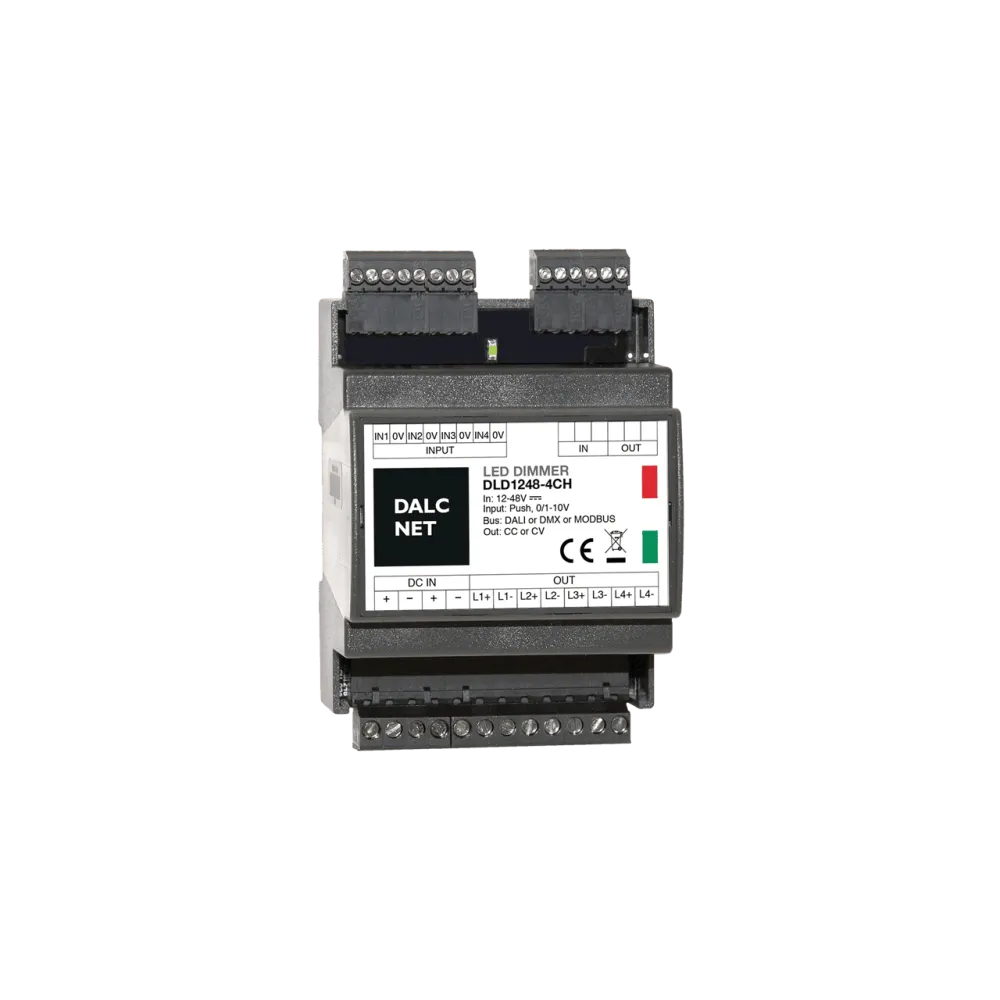

About the product
Output: 4 channels
BUS+SEQUENCER+FADER+DIMMER+DRIVER
Input: DC 12/24/48 Vdc
Output 4x700mA – 1×2.8A
BUS Command: DMX
LOCAL Command: 4x N.O. push button (with or without memory), 0-10V, 1-10V
and Potentiometer 10KOhm
Controls: Dimmer, Dim to Warm, Tunable White, RGB, RGBW
Control outputs and Current outputs for R-L-C loads
Typical efficiency > 95%
Adjusting the brightness up to completed off (Dim to Dark)
Level minimum of brightness: 0.1% (1% in push)
D-PWM Modulation
Adjusting D-PWM frequency: 300 / 600 / 1200 Hz
Adjusting output curve: Linear / Quadratic / Exponential
Soft start and soft stop
Soft dimming regulation
Master / Slave Function (DMX variant)
Extended temperature range
100% Functional test
5 years warranty
Product specifications
| Control | DMX, Low Voltage Push, Resistor, 0-10V, 1-10V |
| Length | 72 mm |
| IP protection | IP20 |
| Height | 62 mm |
| Manufacturer warranty | 5 years |
| Manufacturer | DalcNet |
| Width | 92 mm |
| Output current per channel (A) | 0.7 |
| Connection | Screw terminal |
| Channels | 4 |
| Input voltage range (VDC) | 12-48 V |
| Application | RGB, RGBW, Single color, Tunable white |
| Output voltage range (VDC) | 12-48 V |
Data sheets
