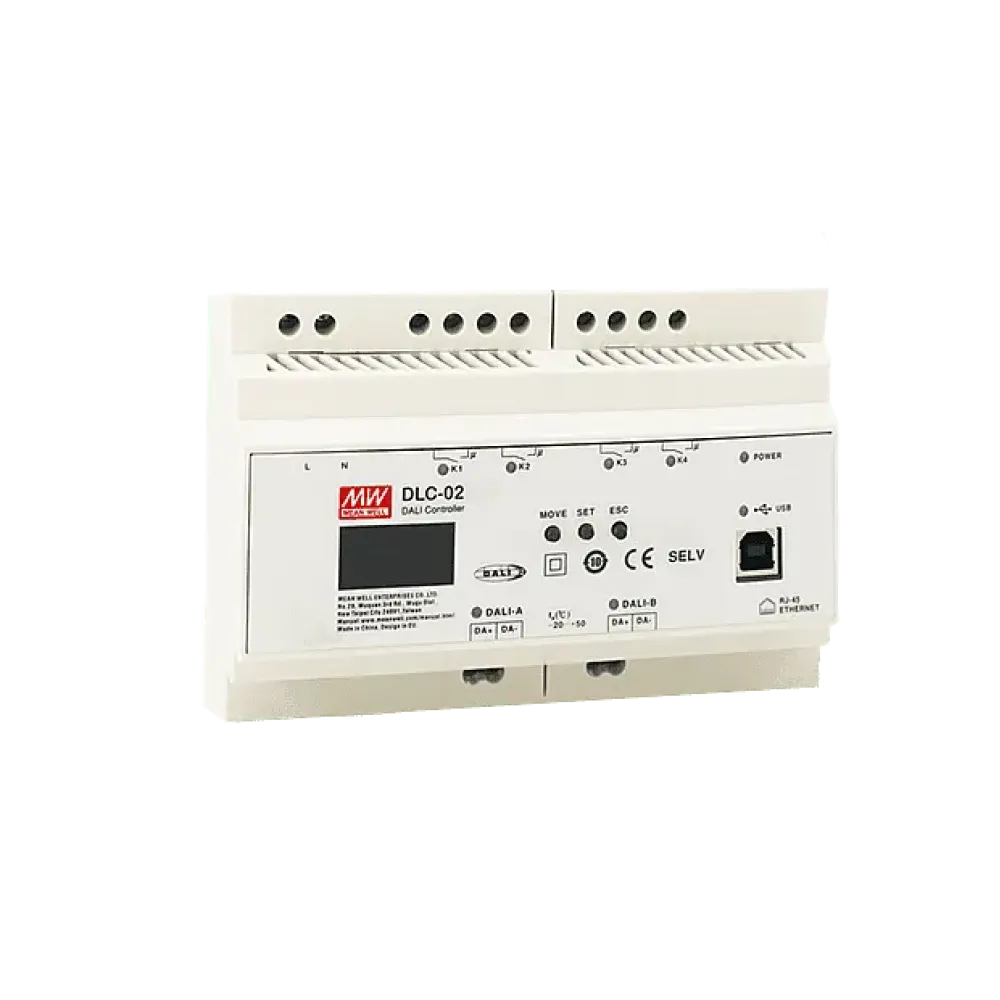

2-channel DALI 2.0 controller for 2×64 DALI drivers, single color, Tunable White, RGBW

DLC-02 is a DALI 2.0 controller for controlling DALI 2.0 installations.

The control unit has 2 DALI channels. Each channel can be connected to a maximum of 64 ballasts and 12 DALI input devices. In addition, the DLC-02 series has 4 relays, which can be controlled via the latest DALI-2 relay control function.

With the latest firmware version, color control of DALI DT8 devices with Tunable White and RGBW is now also possible.

Technical data

• Simple configuration and installation
• 2x DALI 2.0 bus channels for the operation of 2 x 64 DALI drivers and 2 x 12 input devices.
• DALI DT6, DALI DT8 (Tunable White, RGBW,xy-coordinate)
• Integrated DALI power supply (up to 250mA per channel)
• LCD display
• Programming directly via buttons on the control unit, or via integrated web server
• 2 x 16 DALI groups / 2 x 16 DALI scenes
• 4 relay contacts 250V/5A built-in
• Dimensions 144 x 90 x 58.3mm (W x H x D)
• 5 year guarantee
