About the product

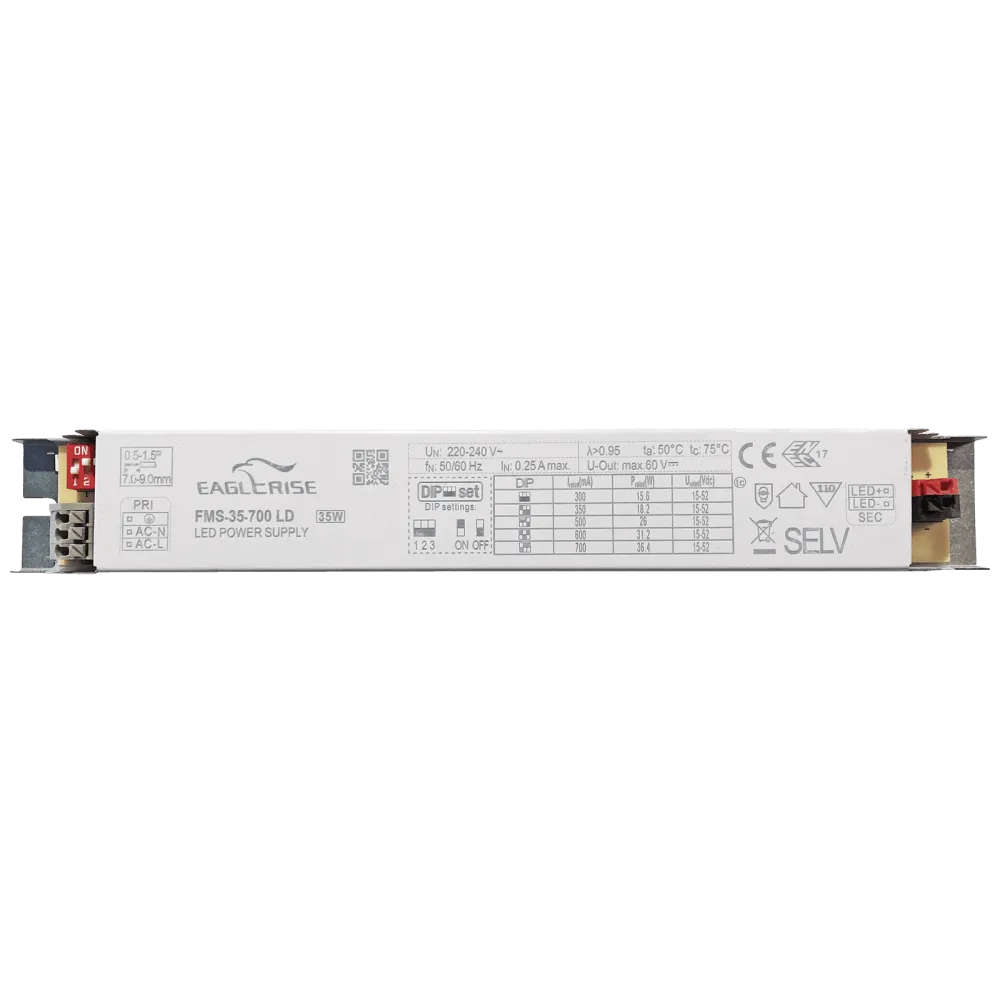

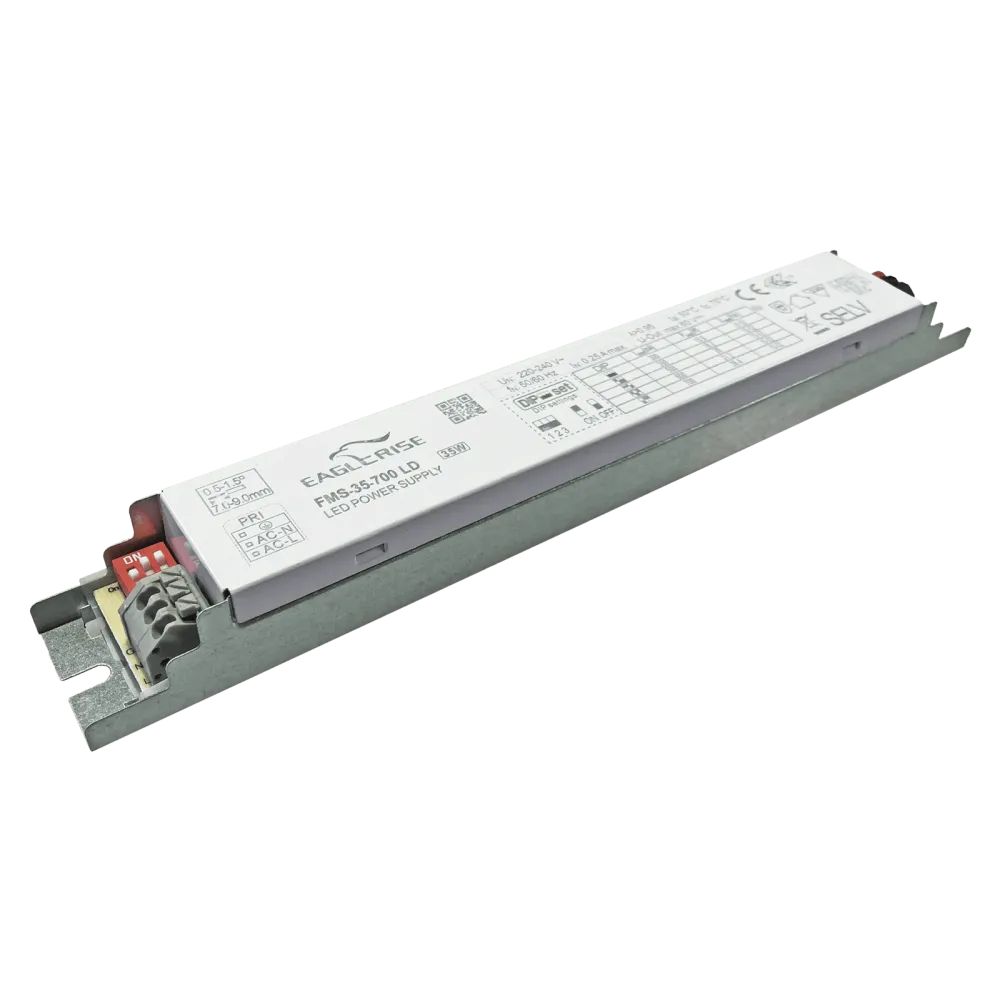

FMS-35-700 LD is an 35W constant current LED driver with 300 to 700mA output and a forward voltage range from 15 to 52Vdc. The output current is selectable by DIP switch.
Technical data
- Input voltage 176 bis 264Vac

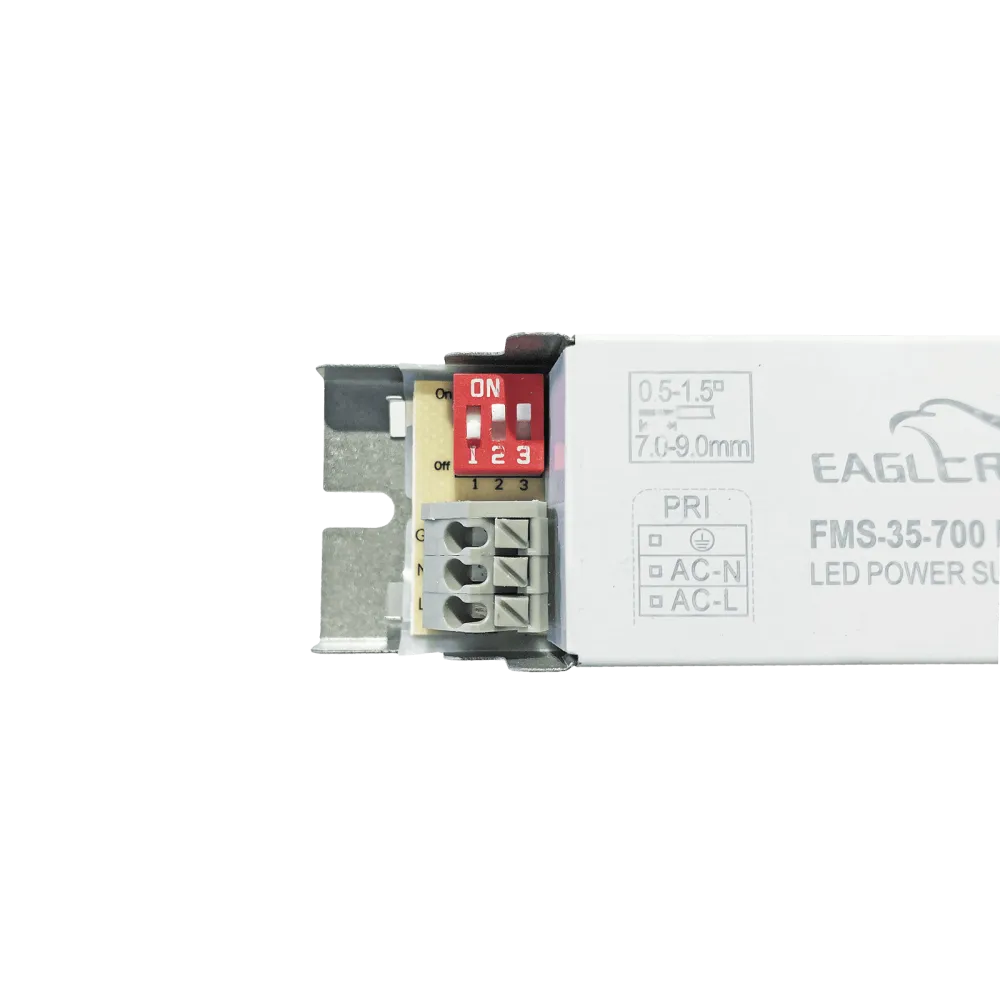

- Output current 300 / 350mA / 500mA / 600mA / 700mA (Factory setting) selectable by DIP switch
- Vf range 15 to 52Vdc
- Dimensions 220 x 30 x 21mm (L x W x H)
- 5 years warranty
- Manufacturer: Eaglerise
Product specifications
| Power | 35 W |
| Output current | 300-700 mA |
| Manufacturer | Eaglerise |
| Manufacturer warranty | 5 years |
| Connection | Push-in terminal |
| IP protection | IP20 |
| Height | 21 mm |
| Width | 30 mm |
| Length | 220 mm |
| Application | Single color |
| Current setting | DIP switch |
| Channels | 1 |
| Control | Non-dimmable |
| Output voltage range (VDC) | 15-52 V |
