About the product

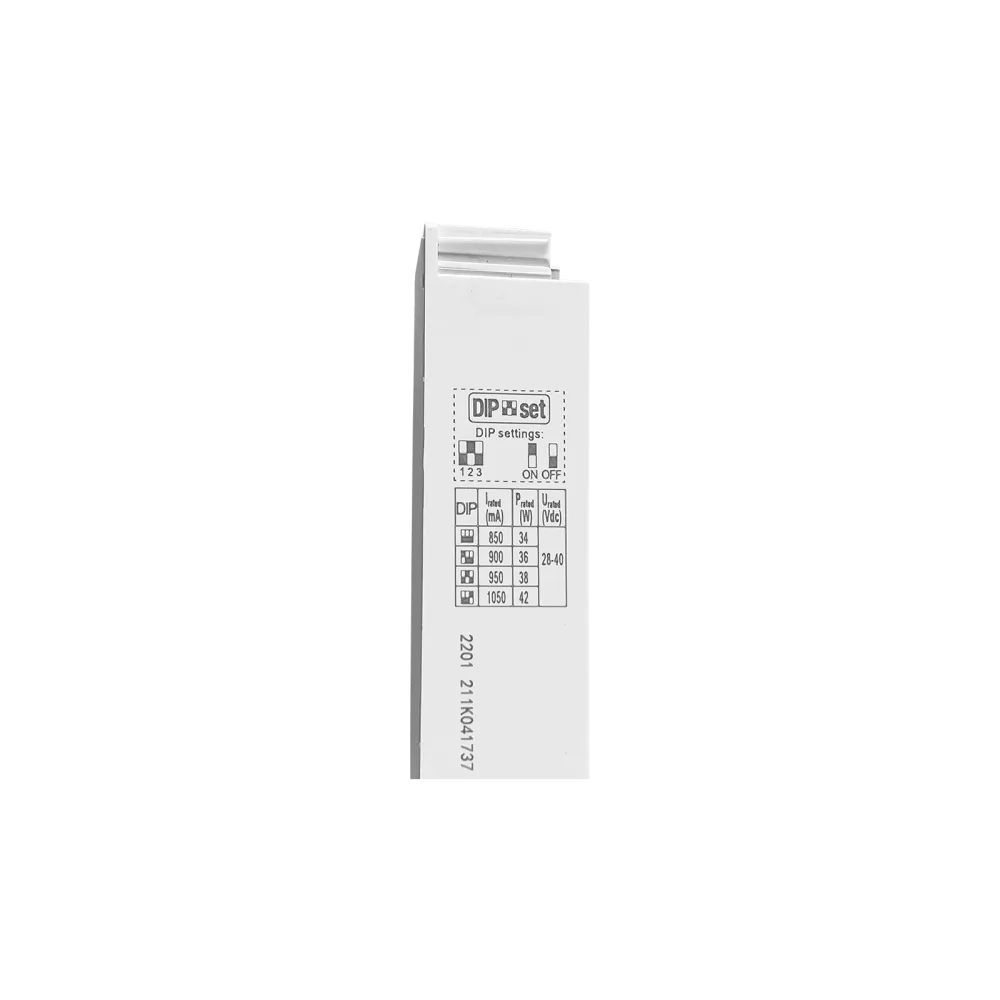

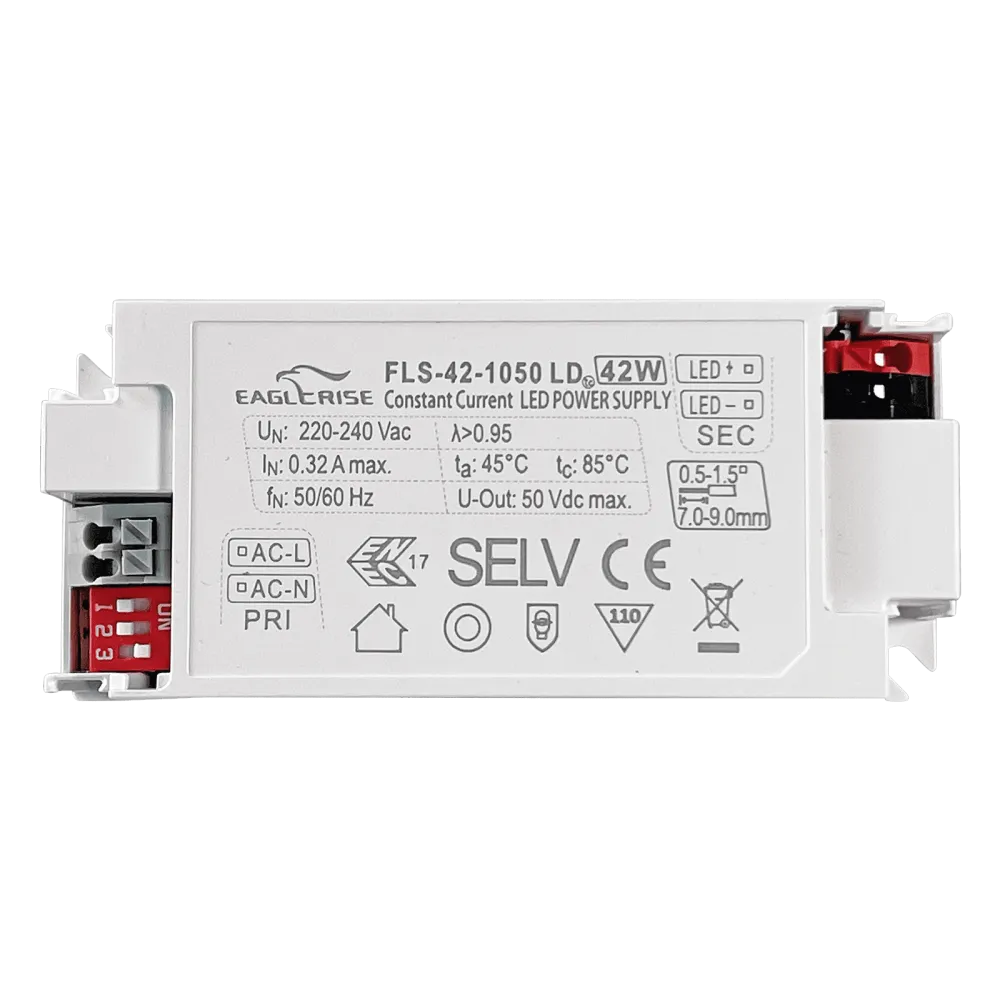

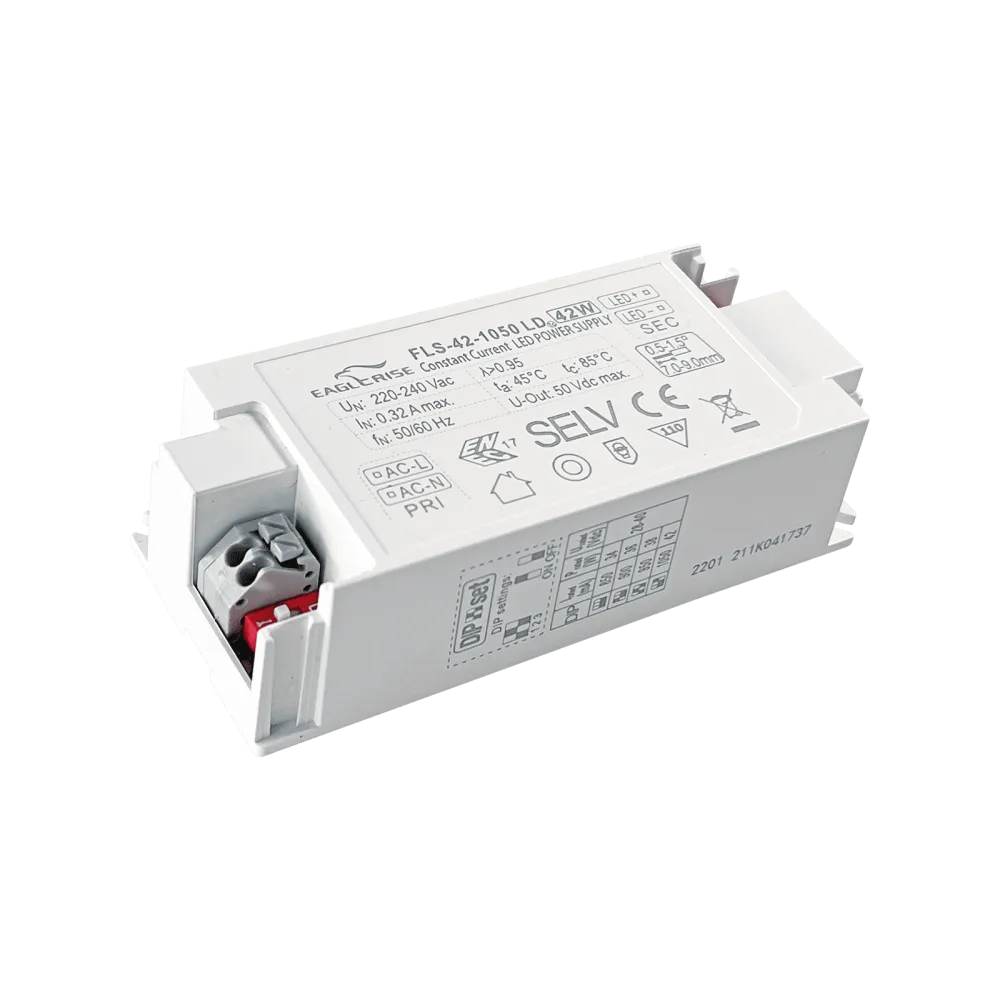

FLS-42-1050 LD is a 22W constant current LED driver with 850 to 1050mA output for a forward voltage range from 28 to 40Vdc. The output current is selectable by DIP switch. Together with the optional side covers it is also suitable as independent LED driver.
Product specifications
| Power | 42 W |
| Output current | 850-1050 mA |
| Manufacturer | Eaglerise |
| Manufacturer warranty | 5 years |
| Connection | Push-in terminal |
| IP protection | IP20 |
| Height | 26 mm |
| Width | 43 mm |
| Length | 97 mm |
| Application | Single color |
| Channels | 1 |
| Control | Non-dimmable |
| Output voltage range (VDC) | 28-40 V |
