About the product

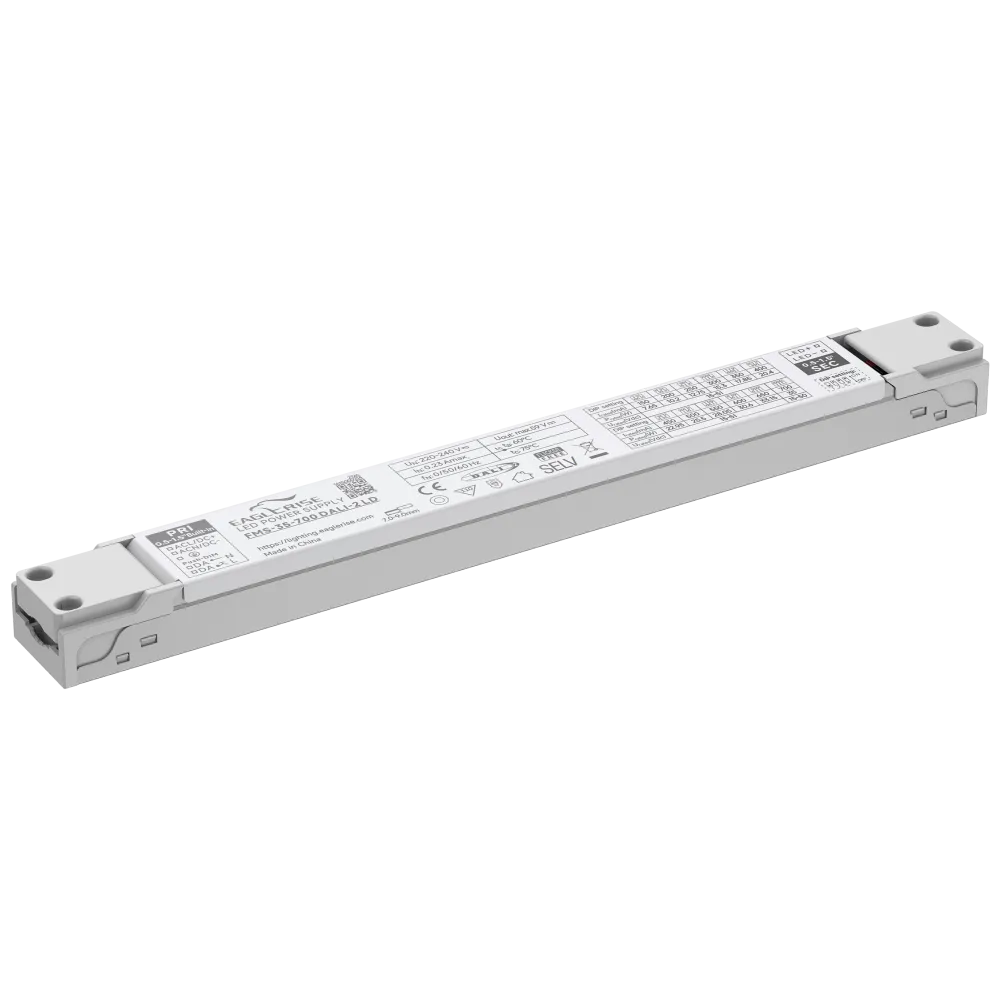

The LED driver FMS-35-700 DALI2 LD with constant current output is designed for the operation of LED lighting applications from 150 to 700mA in the voltage range from 15 to 51Vdc. The output current can be set using the DIP switch on the device. The dimming range is 1 to 100% and can be controlled via AC Push or DALI.
Technical data
- Forward voltage range 15 to 51Vdc
- Adjustable output currents 150mA / 200mA / 250mA / 300mA / 350mA / 400mA / 450mA / 500mA / 550mA / 600mA / 650mA / 700mA (Factory Setting)
- Dimming range 1 to 100% from 250 to 700mA and minimum dimming level 4mA at 150 to 250mA
- Supports DALI Maintenance (Part 251,252,253)
- Dimensions 280 x 30 x 21mm (L x W x H)
- 5 years warranty
- Manufacturer: Eaglerise
Product specifications
| Power | 35 W |
| Output voltage range (VDC) | 15-51 V |
| Output current | 150-700 mA |
| Manufacturer | Eaglerise |
| Manufacturer warranty | 5 years |
| Connection | Push-in terminal |
| IP protection | IP20 |
| Height | 21 mm |
| Width | 30 mm |
| Length | 280 mm |
| Application | Single color |
| Current setting | DIP switch |
| Channels | 1 |
| Control | DALI, AC Push Dimming |
| Efficiency | 90.00% |
