About the product

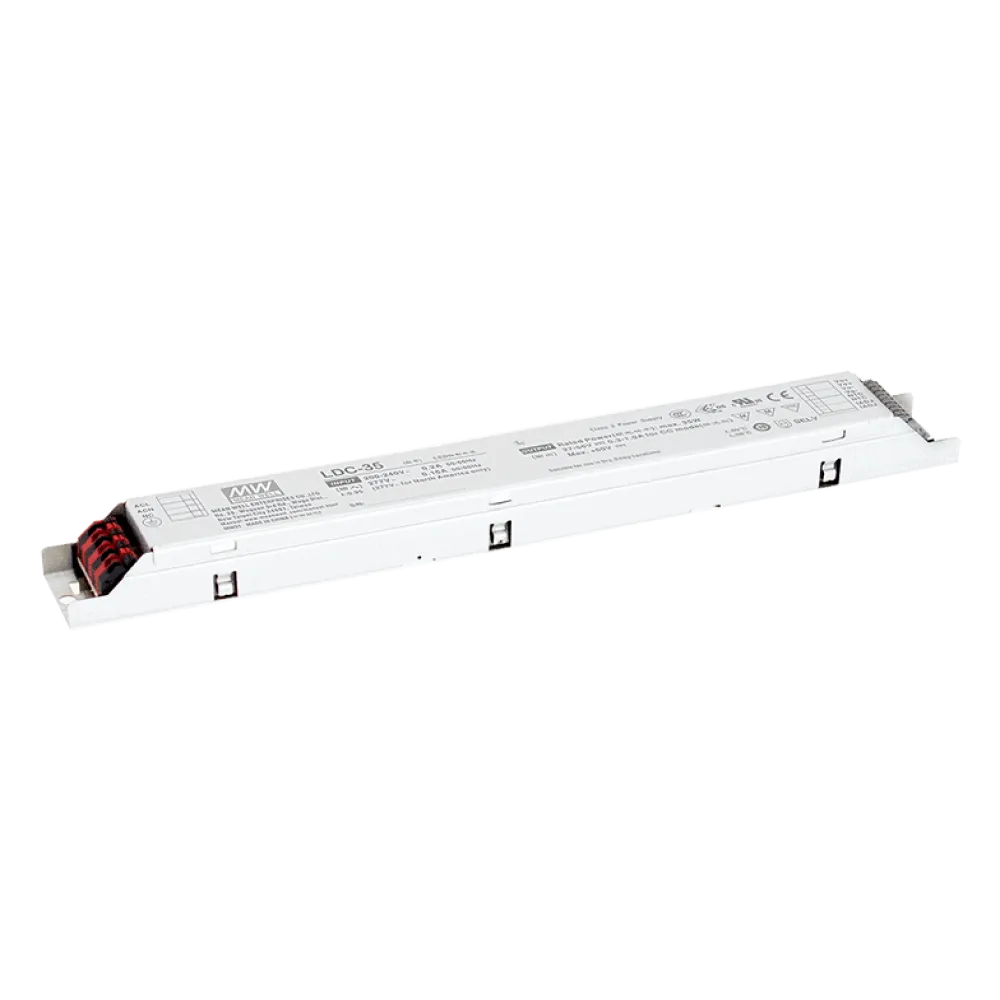

LDC-35 LED driver with constant power output is designed to drive LED lighting applications with 300mA to 1000mA in the voltage range of 27 to 56Vdc. Due to the constant power topology, the full 35W is available in the current range from 625mA to 1000mA. Without dimming function.
Resistance values for current setting
| Output current | Resistance value | Article number |
| 300mA | interruption | – |
| 350mA | 300kOhm | MBA02040C3003FCT00 |
| 400mA | 150kOhm | MBB02070C1503FCT00 |
| 450mA | 100kOhm | MBA02040C1003FCT00 |
| 500mA | 68kOhm | MBA02040C6802FCT00 |
| 600mA | 47kOhm | MBA02040C4702FCT00 |
| 700mA (ex work) | 33kOhm | MBA02040C3302FCT00 |
| 800mA | 24kOhm | MBA02040C2402FCT00 |
| 950mA | 18kOhm | MBA02040C1802FCT00 |
Technical data
- Universal AC Input 180 to 295Vac
- Constant Power Design
- Output Voltage Region 27 – 56Vdc
- Full Power Current range 625mA – 1000mA
- Current adjustable from 300mA to 1000mA
- Output current level pre-settable by resistor set
- No load power consumption 0.5W
- SELV and Isolated
- Dimension 280 x 30 x 21mm (L x W x H)
- 5 years warranty
- Manufacturer: MEAN WELL
Product specifications
| Power | 35 W |
| Output voltage range (VDC) | 27-56 V |
| Output current | 300-1000 mA |
| Input voltage range (VAC) | 200-240 V |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 5 years |
| Additional functions | Constant power |
| Connection | Push-in terminal |
| IP protection | IP20 |
| Height | 21 mm |
| Width | 30 mm |
| Length | 280 mm |
| Application | Single color |
| Current setting | Resistor |
| Channels | 1 |
| Control | Non-dimmable |
| Product series | LDC |
