About the product

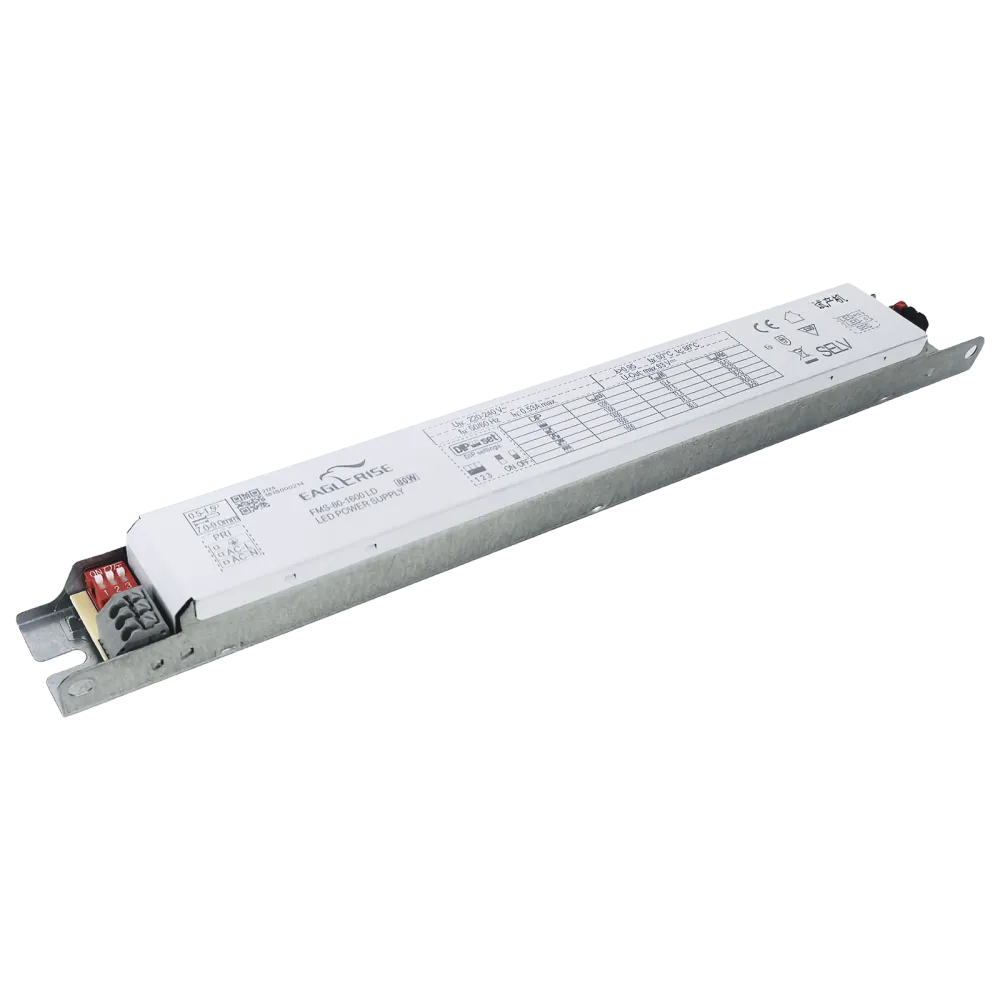

FMS-55-1050 LD is an 55W constant current LED driver with 800 to 1050mA output and a forward voltage range from 36 to 52Vdc. The output current is selectable by DIP switch.
Technical data
- Output current 800mA / 900mA / 950mA / 1000mA / 1050mA (Factory Setting) selectable by DIP switch
- Vf range 36 to 52Vdc
- Dimensions 280 x 30 x 21mm (L x W x H)
- 5 years warranty
- Manufacturer: Eaglerise
Product specifications
| Power | 55 W |
| Output current | 800-1050 mA |
| Manufacturer | Eaglerise |
| Manufacturer warranty | 5 years |
| Connection | Push-in terminal |
| IP protection | IP20 |
| Height | 21 mm |
| Width | 30 mm |
| Length | 280 mm |
| Application | Single color |
| Current setting | DIP switch |
| Channels | 1 |
| Control | Non-dimmable |
| Output voltage range (VDC) | 36-52 V |
