About the product

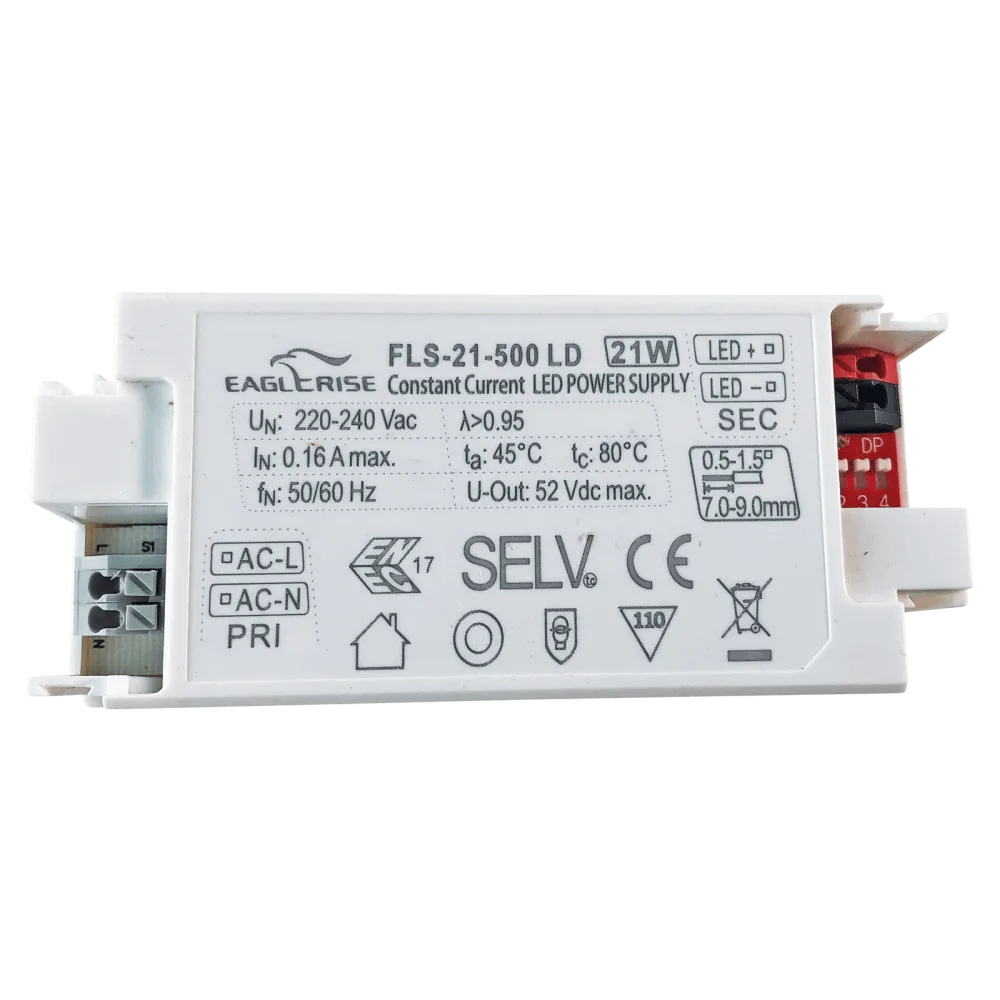

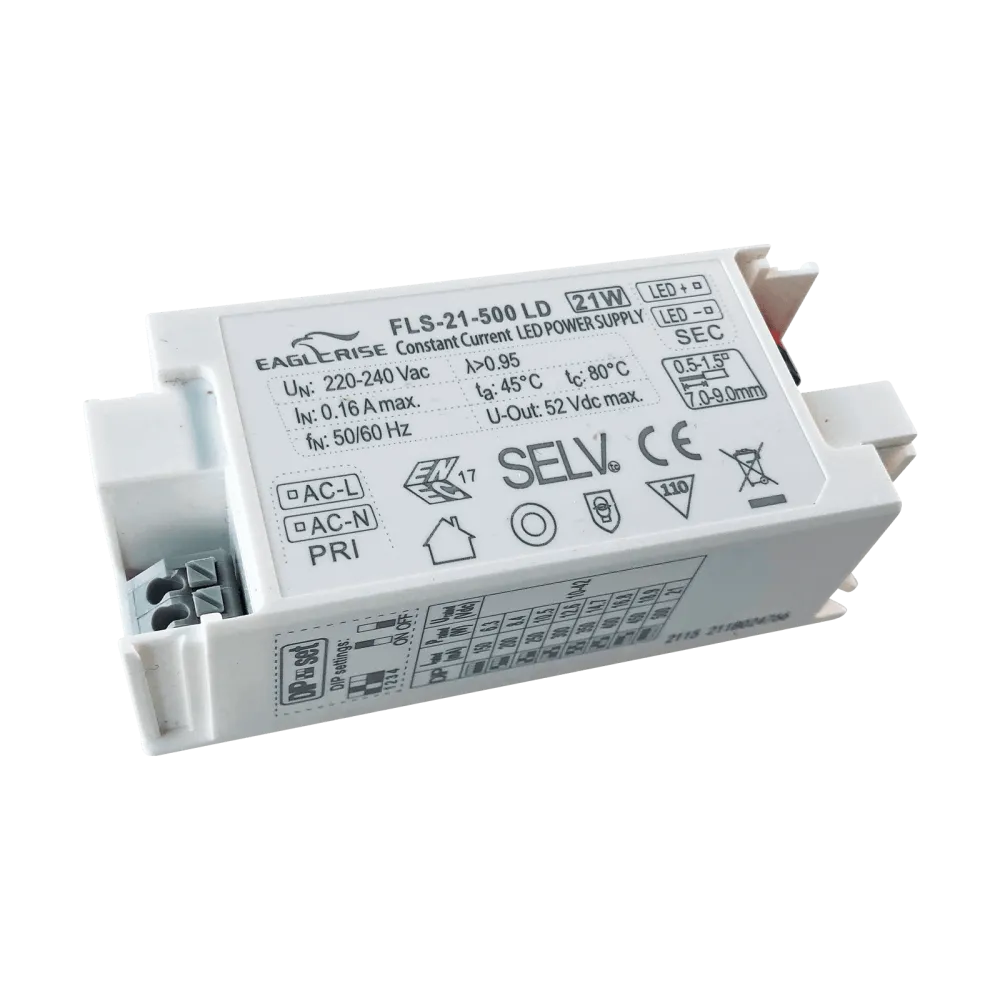

FLS-21-500 LA is an 21W constant current LED driver with 150 to 500mA output and a forward voltage range from 10 to 42Vdc. The output current is selectable by DIP switch. Together with the optional side covers it is also suitable as independent LED driver.
Technical data
- Input voltage 176 bis 264Vac

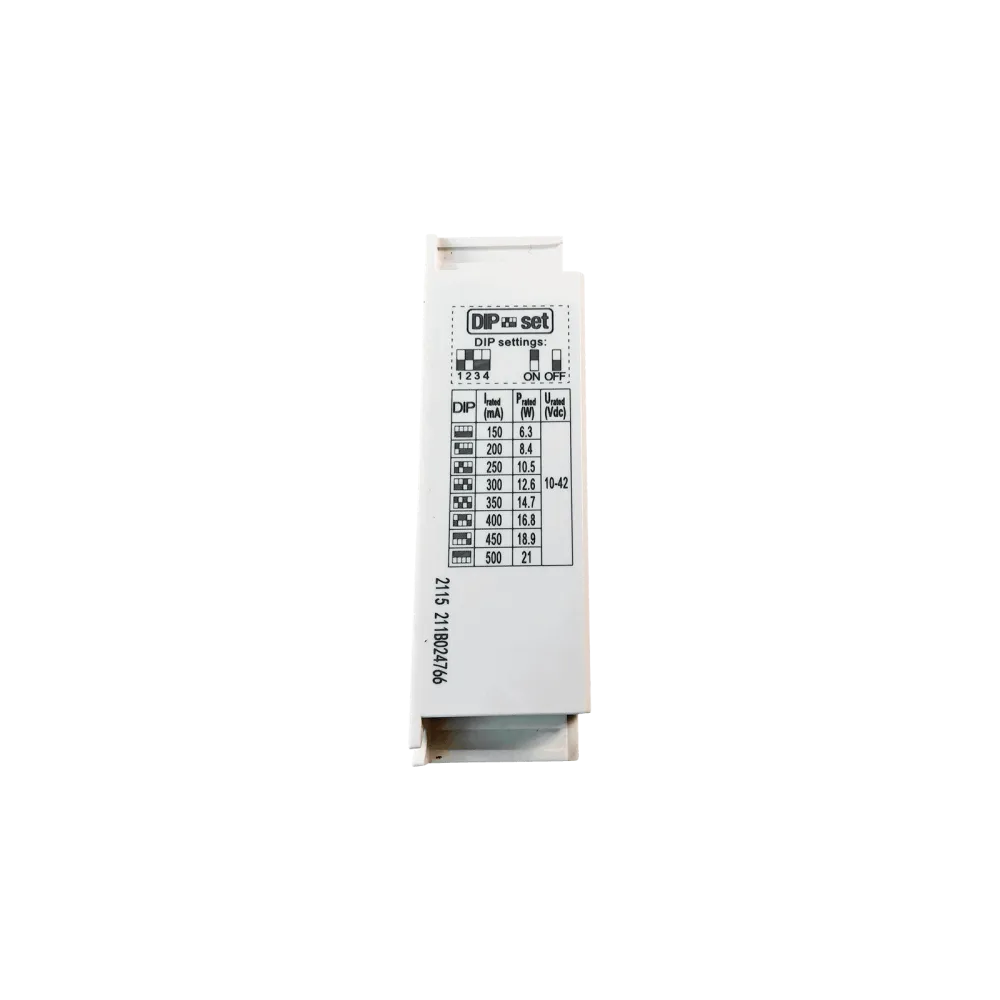

- Output current 150mA / 200mA / 250mA / 300mA / 350mA / 400mA / 500mA selectable by DIP switch
- Vf range 10 to 42Vdc
- Dimensions 97 x 43 x 30mm (L x W x H) without side cover / 130x43x30mm with side cover
- 5 years warranty
- Manufacturer: Eaglerise
Product specifications
| Power | 20 W |
| Output voltage range (VDC) | 10-42 V |
| Output current | 150-500 mA |
| Input voltage range (VAC) | 200-240 V |
| Manufacturer | Eaglerise |
| Manufacturer warranty | 5 years |
| Connection | Push-in terminal |
| IP protection | IP20 |
| Height | 30 mm |
| Width | 43 mm |
| Length | 97 mm |
| Application | Single color |
| Current setting | DIP switch |
| Channels | 1 |
| Control | Non-dimmable |
| Product series | FLS |
