25W LED Driver CC 350/500/600/700/900/1050mA, DALI2

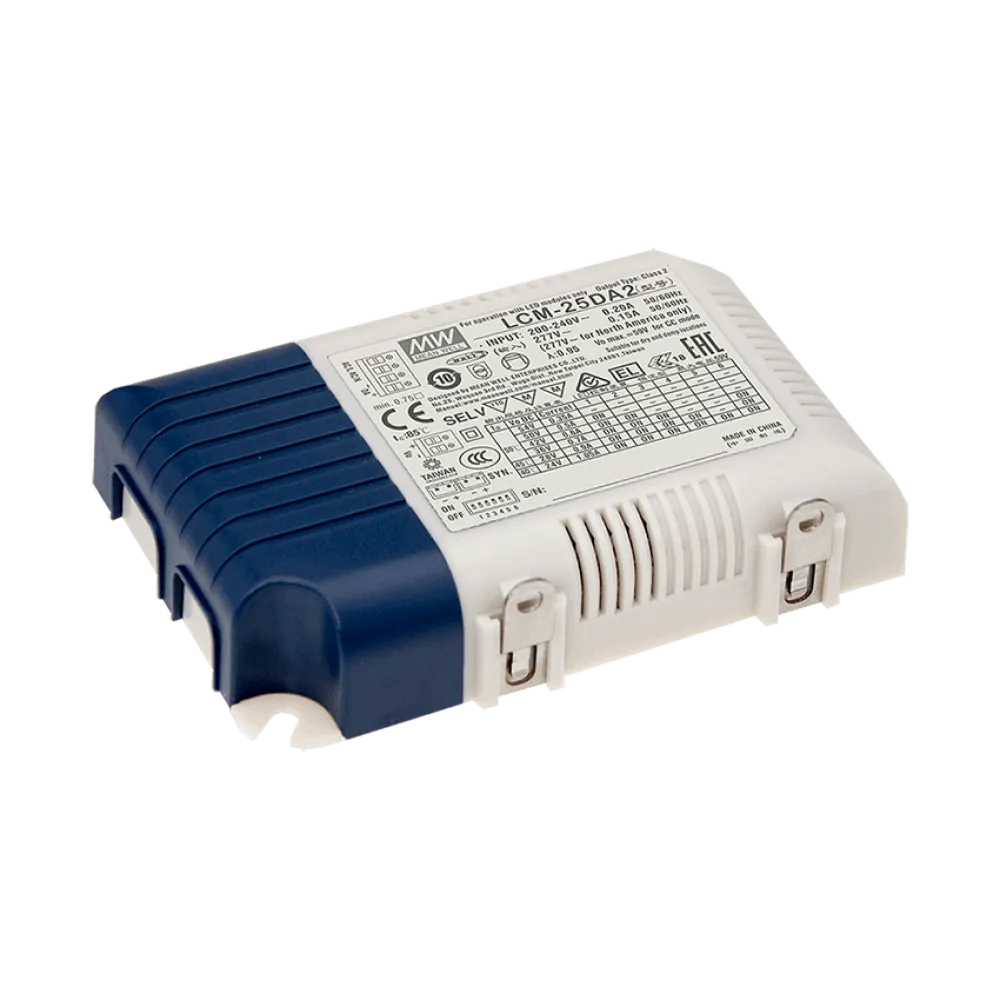

LCM-25DA2 is a flexible, dimmable LED converter with a constant current output. The power supply can be controlled via DALI2 or AC Push.

Highlights

• The output current can be selected on the power supply using a DIP switch.
• A wide voltage range of 6-54Vdc also enables small loads to be operated.
• Can be controlled with DALI and AC Push
• Flicker-free dimming with current regulation, no PWM at the output
• Up to 10 LCMs can be synchronised in master/slave mode (additional SYNC cable required)

Commande

• DALI2
• AC Push

Adjustment range

The adjustment range is 6% to 100% of the output current.

Technical data

• AC input 180 to 277Vac
• Output current selectable by DIP Switch 350mA / 500mA / 600mA / 700mA / 900mA / 1050mA
• Built-in DALI 2.0 interface and push dimming function
• Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
• Dimming by current reduction, No PWM output
• Class II power unit, no FG
• Synchronization function up to 10 units (additional SYNC cable required)
• No load power consumption 0.5W
• Easy installation by spring terminal blocks
• Dimension 105 x 68 x 23mm (L x W x H)
• 3 years warranty
