About the product

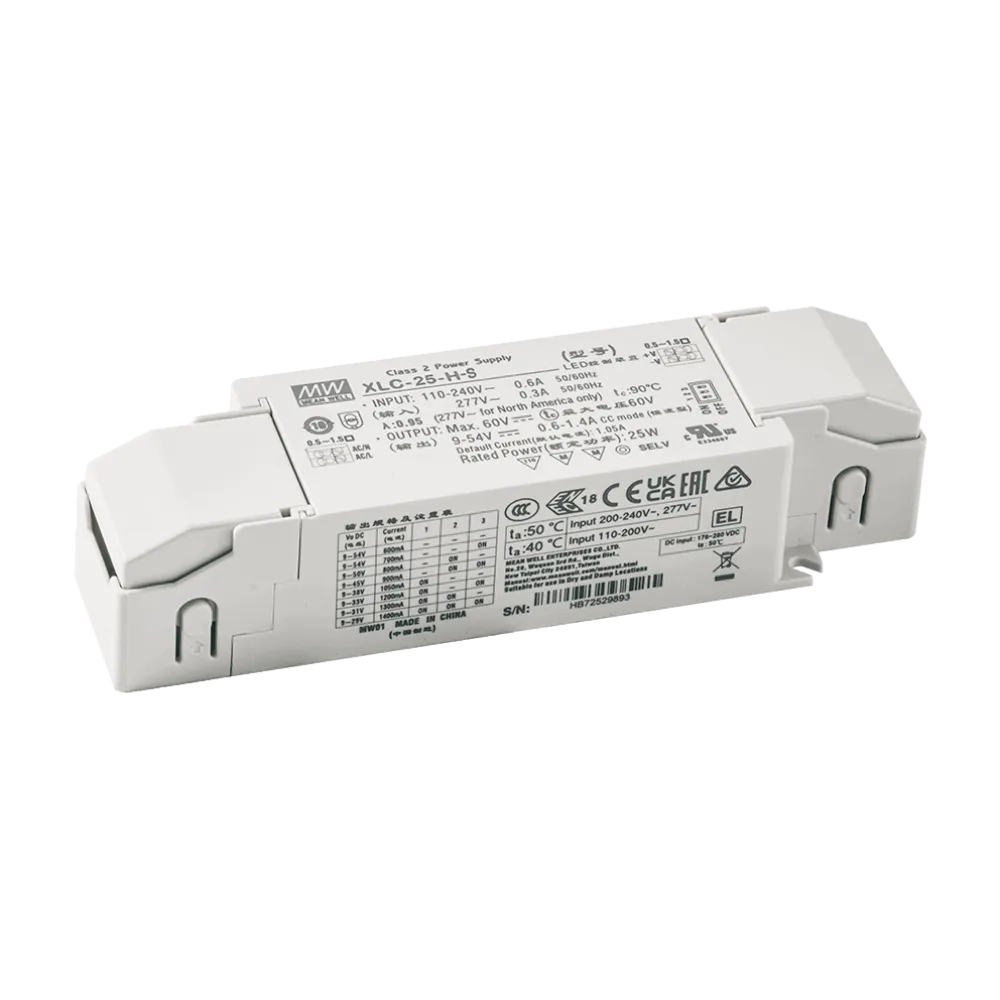

XLC-25 Series is a 25W constant current LED driver. It can operate from 110 to 305Vac and 176 to 280Vdc. Thanks to high efficiency up to 88%, it is able to operate for -25°C to 90°C case temperature under free air convection. XLC-25 is designed based on latest safety regulations with DALI and AC Push dimming. The output current is selectable via DIP switch which provides design flexibility for LED Lighting applications.
Independant type
Technical data
- Constant power mode output
- Multiple output current, selectable via DIP switch
- DALI 2.0 and AC Push dimming
- Minimum dimming level 0.1%
- Plastic housing with class II/2 and PFC design
- Flicker free, complying with IEEE1789/ErP
- Standby power consumption <0.5W
- Meet emergency lighting (EL) application
- 5 years warranty
Product specifications
| Power | 25 W |
| Output voltage range (VDC) | 9-54 V |
| Output current | 300-1050 mA |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 5 years |
| Additional functions | Constant power, EL mark |
| Connection | Push-in terminal |
| Height | 32 mm |
| Width | 40 mm |
| Length | 147 mm |
| Application | Single color |
| Dimming method | Current regulation |
| Current setting | DIP switch |
| Channels | 1 |
| Control | DALI DT6, DALI2, DALI, AC Push Dimming |
| Efficiency | 88.00% |
