About the product

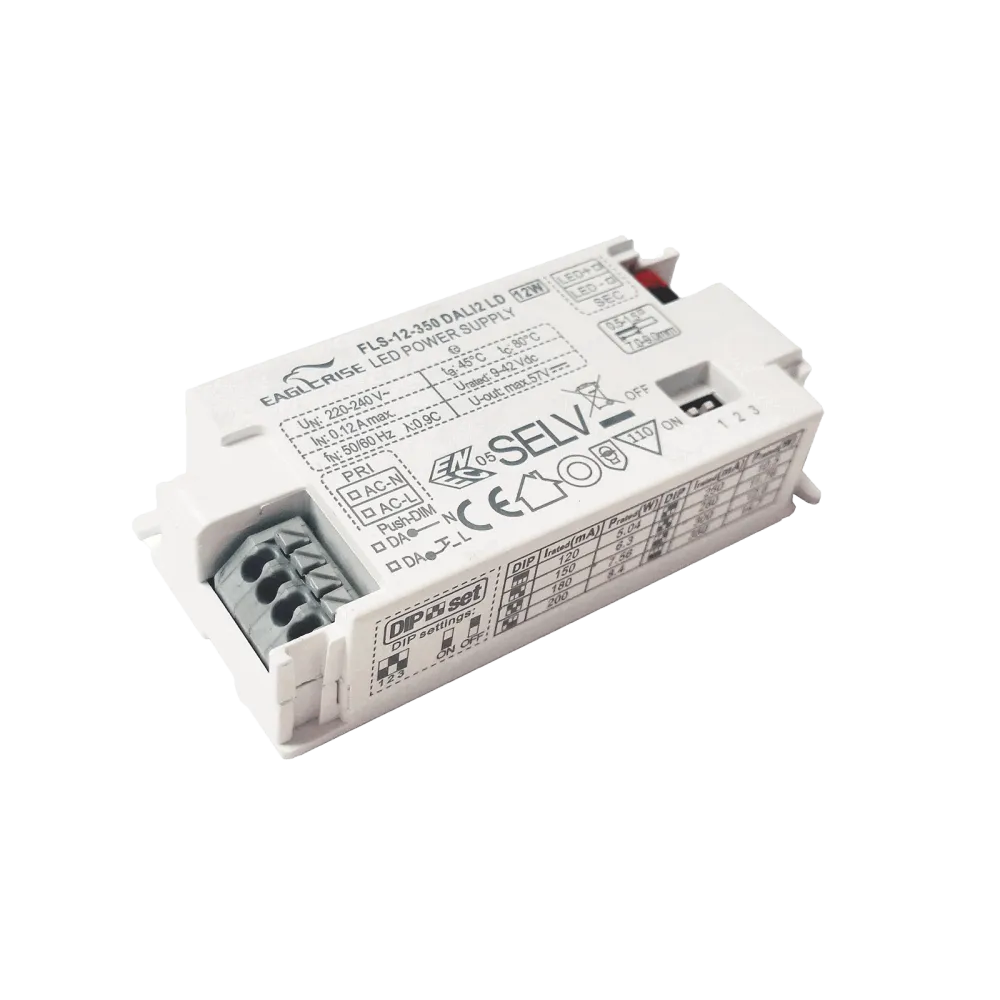

FLS-12-350 DALI2 LDC is a 12W constant current LED driver with 150 to 350mA output current and a forward voltage range from 9 to 42Vdc. The output current is selectable by DIP Switch. With it’s dimensions from 85x 40 x 21.5mm and the DALI2 and Push dimming interface it is easy to integrate in LED Panel, spot and down light products.

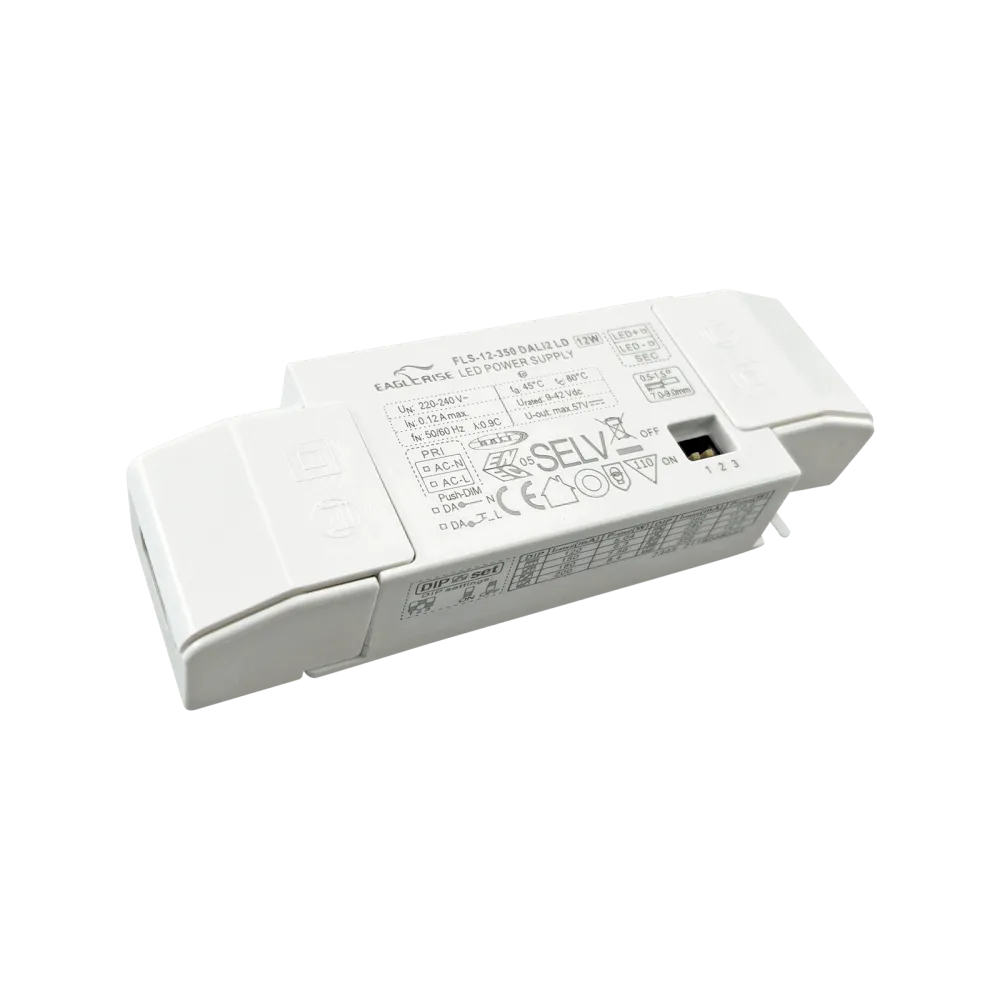

Side Cover Set for operation outside the luminaire is already installed.
Technical data
- Input voltage 198 to 264Vac
- Output current 120mA / 150mA / 200mA / 250mA / 300mA / 350mA selectable by DIP switch
- DALI2 and AC push dimming interface
- Dimming range 1…100% with linear current dimming (no PWM)
- Vf range 9 to 42Vdc

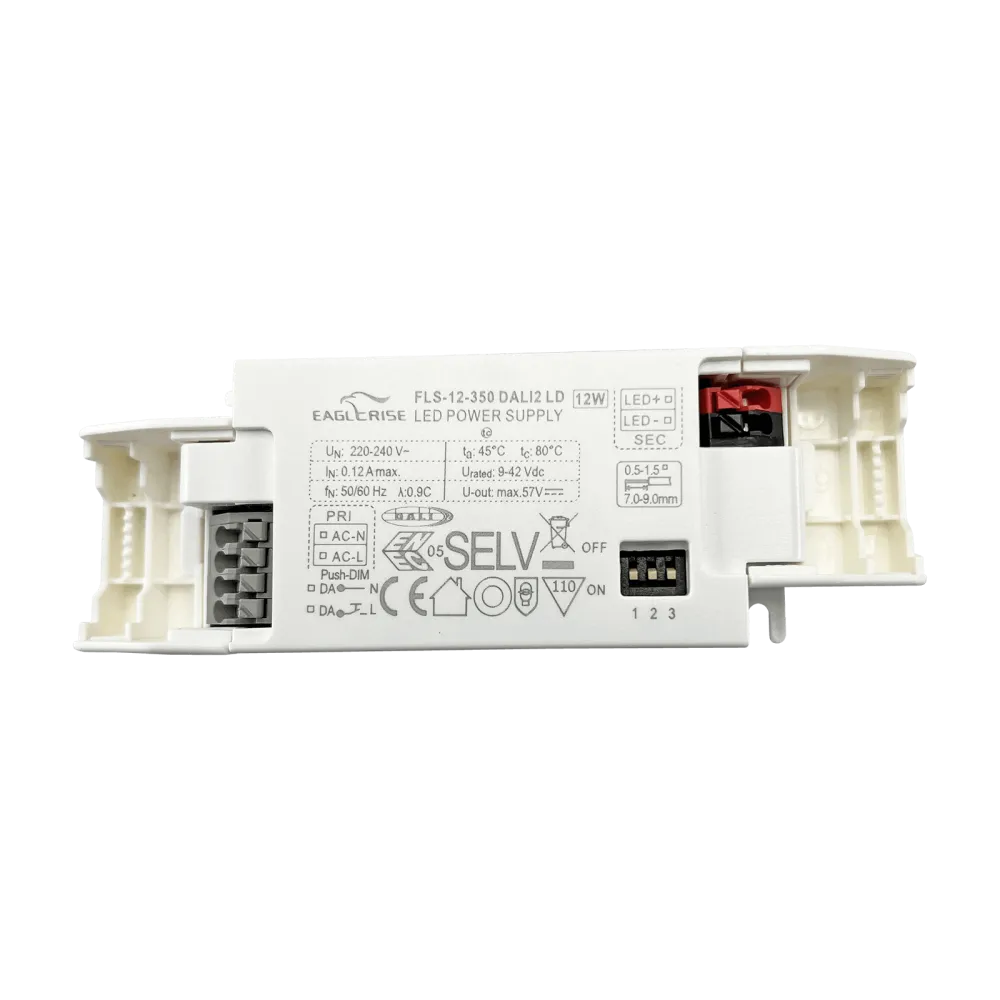

- Dimensions 85 x 40 x 21,5mm (L x W x H) without side cover / 119x40x21,5mm with side cover (factory assembled)
Product specifications
| Power | 12 W |
| Output current | 120-350 mA |
| Product series | FLS |
| Input voltage range (VAC) | 200-240 V |
| Manufacturer | Eaglerise |
| Manufacturer warranty | 5 years |
| Additional functions | Corridor function |
| Connection | Push-in terminal |
| IP protection | IP20 |
| Height | 21.5 mm |
| Width | 40 mm |
| Length | 85 mm |
| Application | Single color |
| Dimming method | Current regulation |
| Current setting | DIP switch |
| Channels | 1 |
| Control | DALI2, DALI, AC Push Dimming |
| Output voltage range (VDC) | 9-42 V |
