About the product

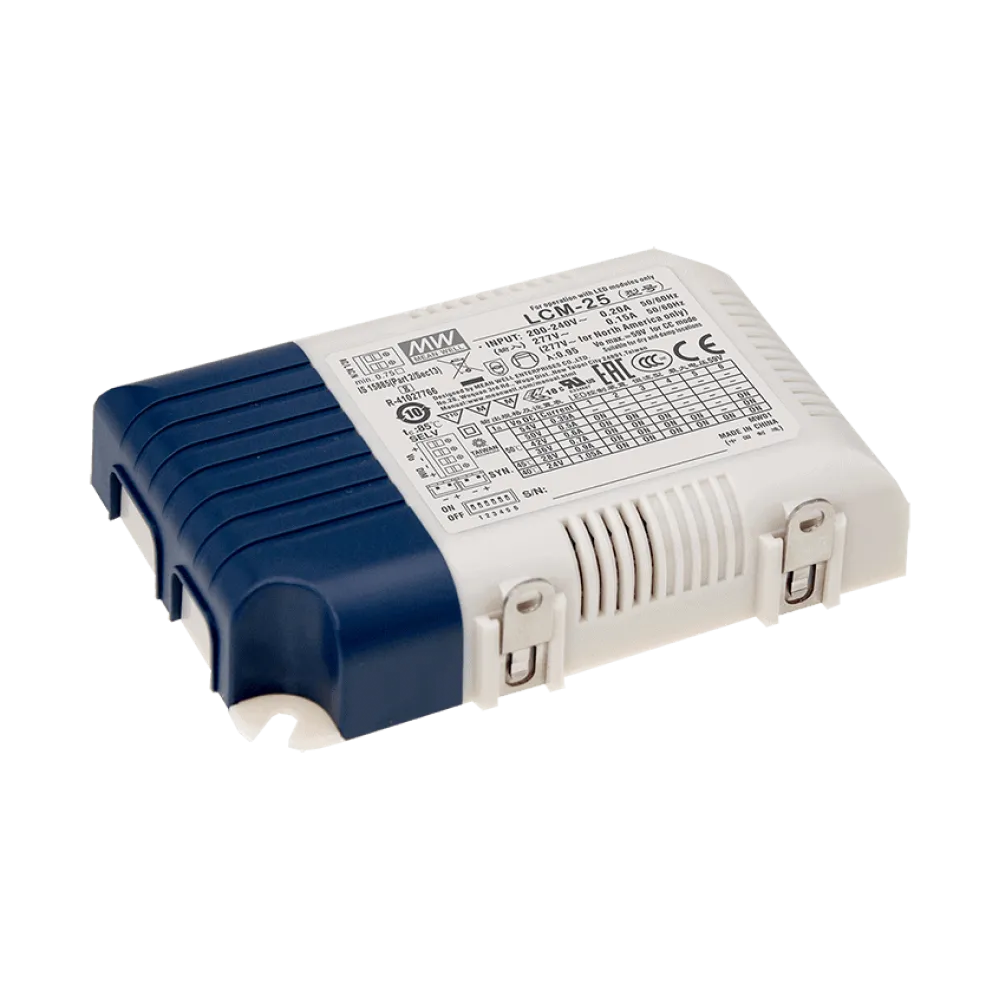

25W LED Driver CC 350/500/600/700/900/1050mA
Technical data
- AC input 180 to 277Vac
- Output current selectable by DIP switch
- Built-in 0-10Vdc or PWM signal or resistance dimming function
- Dimming by current reduction, No PWM output
- Class II power unit, no FG
- Synchronization function up to 10 units (additional SYNC cable required)
- No load power consumption 0.5W
- Easy installation by spring terminal blocks
- Dimension 105 x 68 x 23mm (L x W x H)
- 3 years warranty
- Manufacturer MEAN WELL
Product specifications
| Power | 25 W |
| Output voltage range (VDC) | 6-54 V |
| Output current | 350-1050 mA |
| Input voltage range (VAC) | 200-240 V |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 3 years |
| Connection | Push-in terminal |
| IP protection | IP20 |
| Height | 23 mm |
| Width | 68 mm |
| Length | 105 mm |
| Application | Single color |
| Dimming method | Current regulation |
| Current setting | DIP switch |
| Channels | 1 |
| Control | Resistor, 0-10V, 1-10V, PWM control signal |
| Product series | LCM |
