About the product

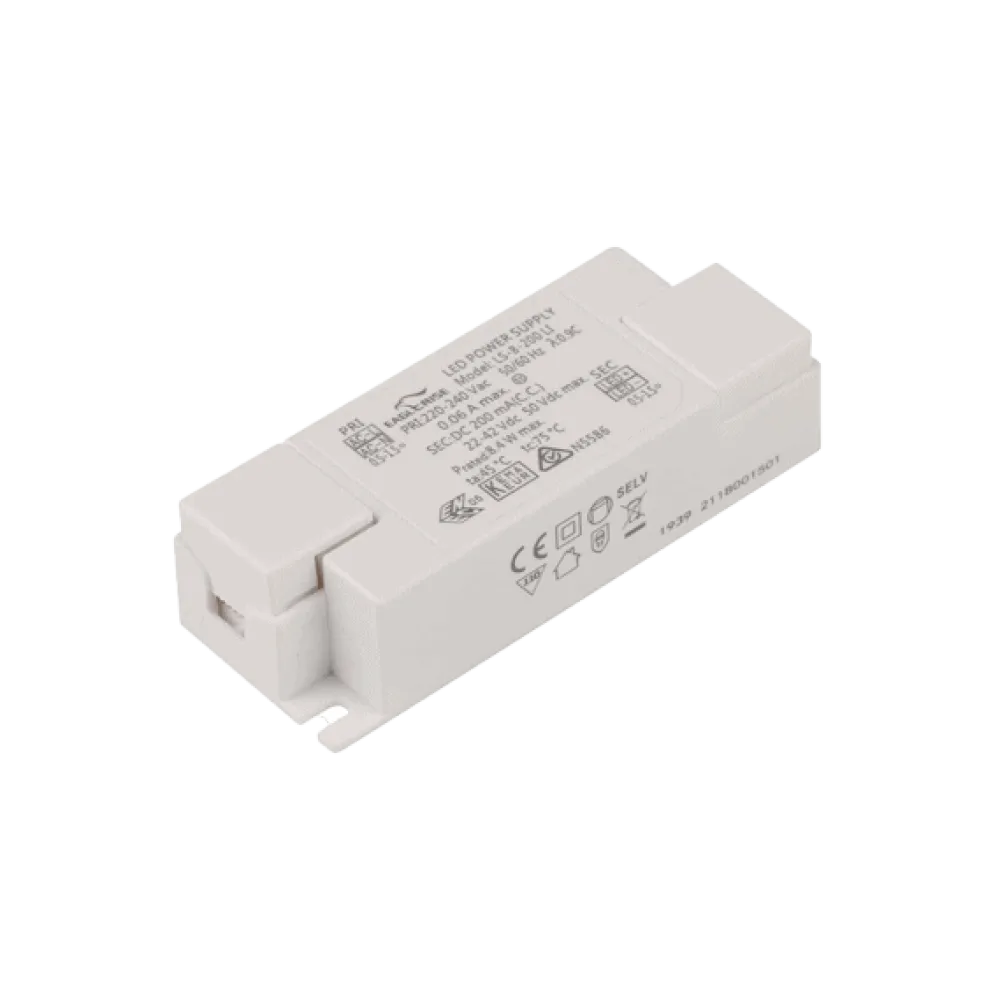

LS-12-350 LI2 is a 12W constant current LED driver with 350mA output. The class II design (without FG) accepts input from 176 to 264Vac. With it’s compact design it is easy to integrate in LED panel and downlight products
Technical data
- Input voltage 176 to 264Vac
- Lifetime >30’000 hours at full load and 45°C ambient temperature
- Operating temperature range from -20°C to +45°C
- Dimensions 100 x 38 x 25mm (L x W x H)
- 5 year warranty
- Manufacturer: Eaglerise
Product specifications
| Power | 12 W |
| Product series | LS |
| Output voltage range (VDC) | 18-35 V |
| Input voltage range (VAC) | 200-240 V |
| Manufacturer | Eaglerise |
| Manufacturer warranty | 5 years |
| Connection | Screw terminal |
| IP protection | IP20 |
| Height | 25 mm |
| Width | 38 mm |
| Length | 100 mm |
| Application | Single color |
| Channels | 1 |
| Control | Non-dimmable |
| Output current | 350 mA |
