About the product

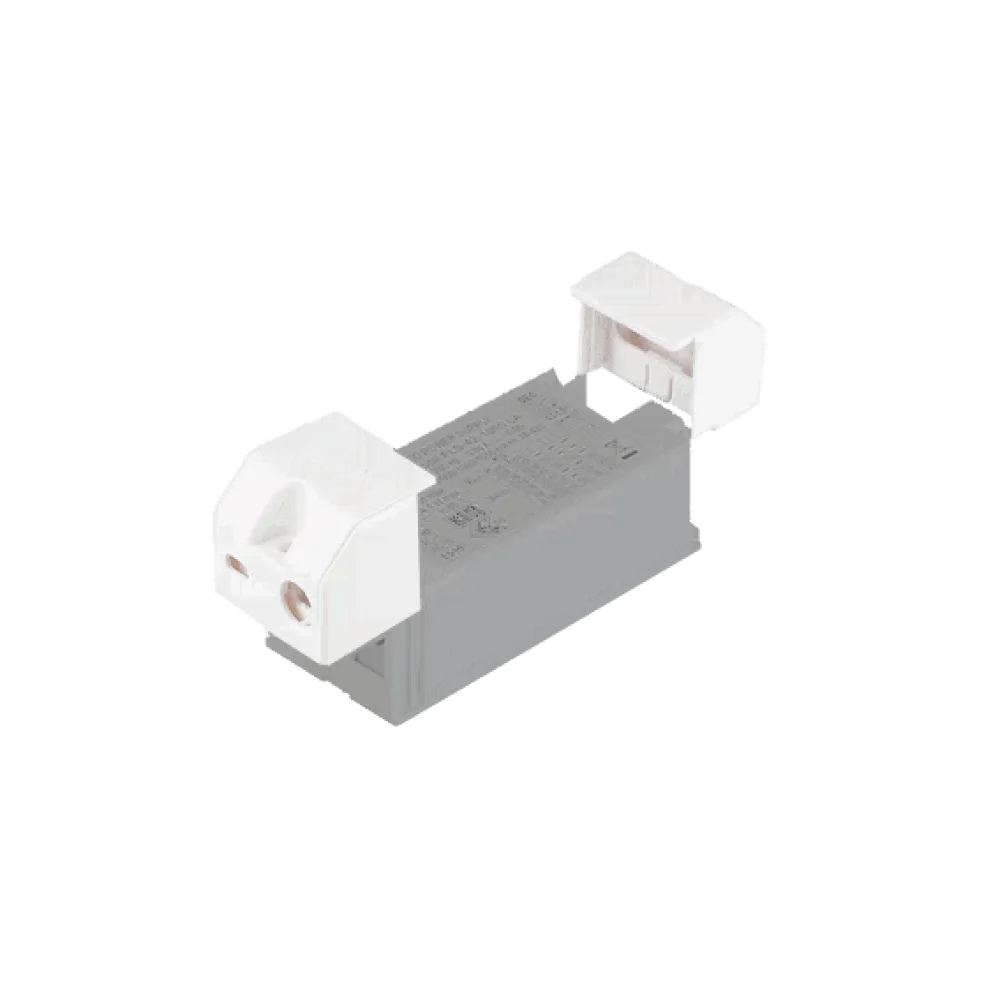

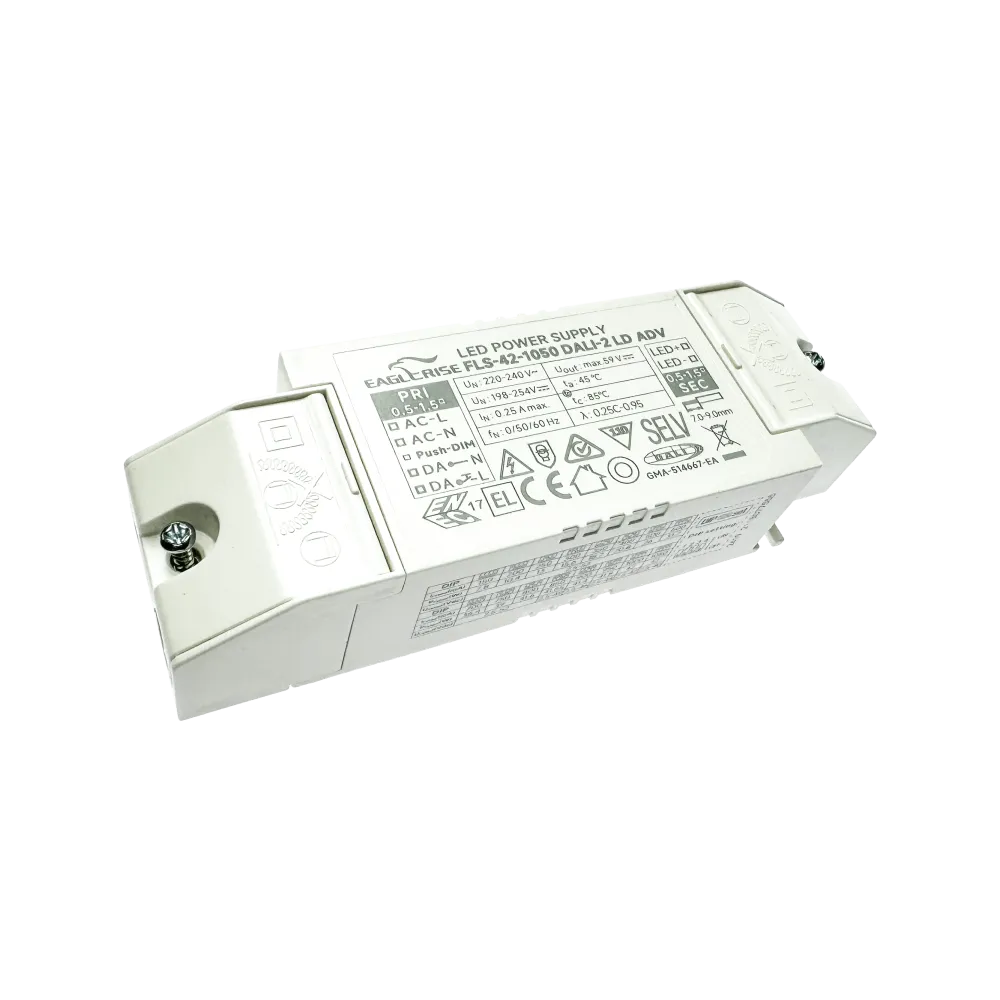

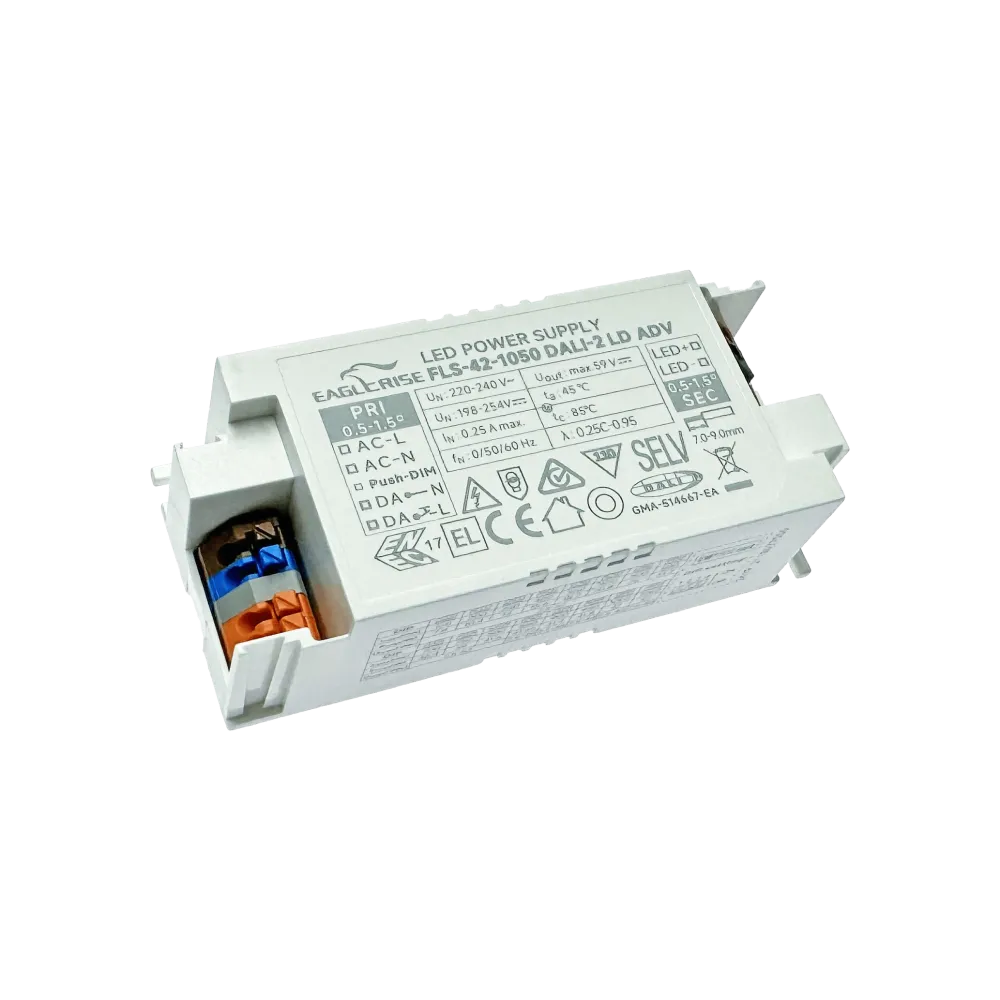

FLS-42-1050 DALI2 LD ADV C is a 42W constant current LED driver with 150 to 1050mA output current and a forward voltage range from 2.5Vdc to 52Vdc. The output current is selectable by DIP Switch. With it’s dimensions from 97 x 43 x 30mm without side cover or 131 x 43 x 30mm with side cover (included) and the DALI2 and Push dimming interface it is easy to integrate in LED Panel, spot and down light products.
Technical data
- Forward voltage range 2.5 to 52Vdc
- DALI2 and AC Push interface
- Amplitude dimming with dimming range 1…100%

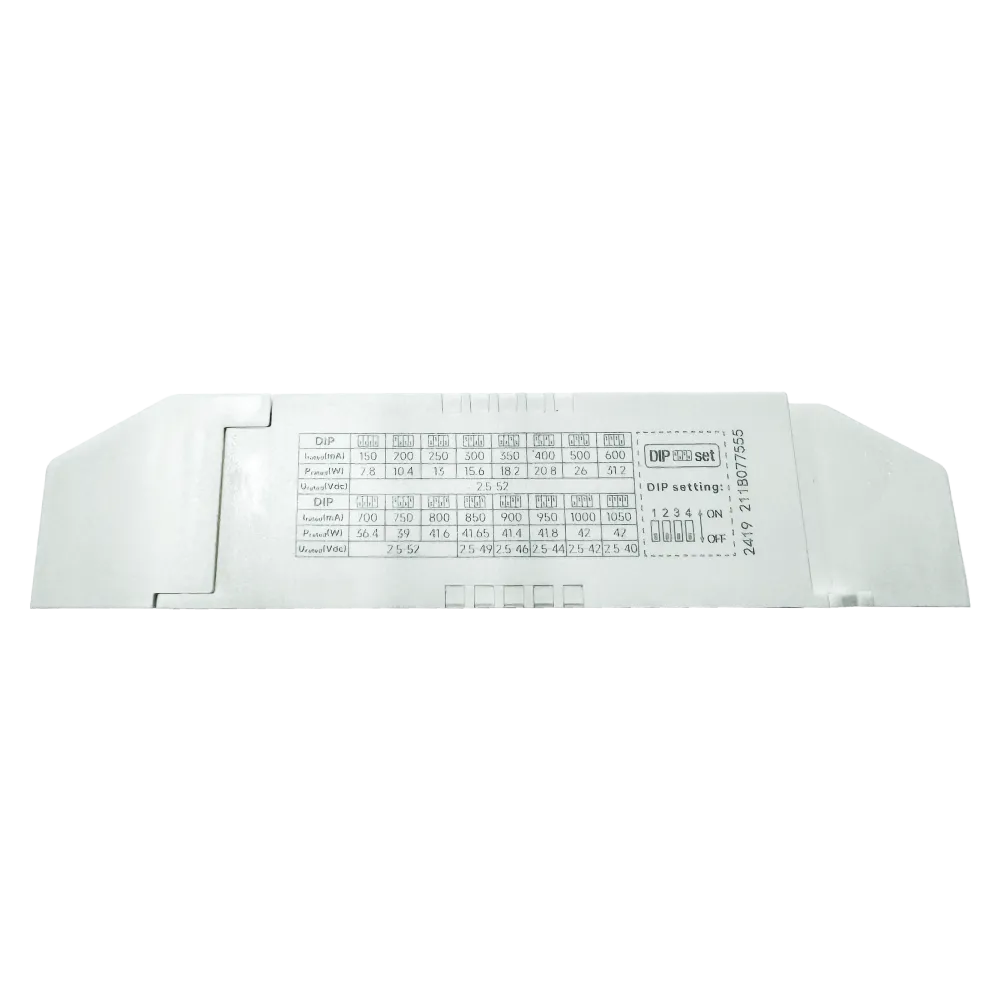

- Adjustable output currents 150mA / 200mA / 250mA / 300mA / 350mA / 400mA / 500mA / 600mA / 700mA / 750mA / 800mA / 850mA / 900mA / 950mA/ 1000mA / 1050mA
- Dimensions 97 x 43 x 30mm (L x W x H) without side cover / 130x43x30mm with side cover (included)
Product specifications
| Power | 42 W |
| Output voltage range (VDC) | 2.5-52 V |
| Output current | 150-1050 mA |
| Input voltage range (VAC) | 200-240 V |
| Manufacturer | Eaglerise |
| Manufacturer warranty | 5 years |
| Additional functions | Corridor function, EL mark |
| Connection | Push-in terminal |
| IP protection | IP20 |
| Height | 30 mm |
| Width | 43 mm |
| Length | 131 mm |
| Application | Single color |
| Dimming method | Current regulation |
| Current setting | DIP switch |
| Channels | 1 |
| Control | DALI2, DALI, AC Push Dimming |
| Product series | FLS |
