12W LED Driver Constant Current 120-350mA, 9-42Vdc, DALI2

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

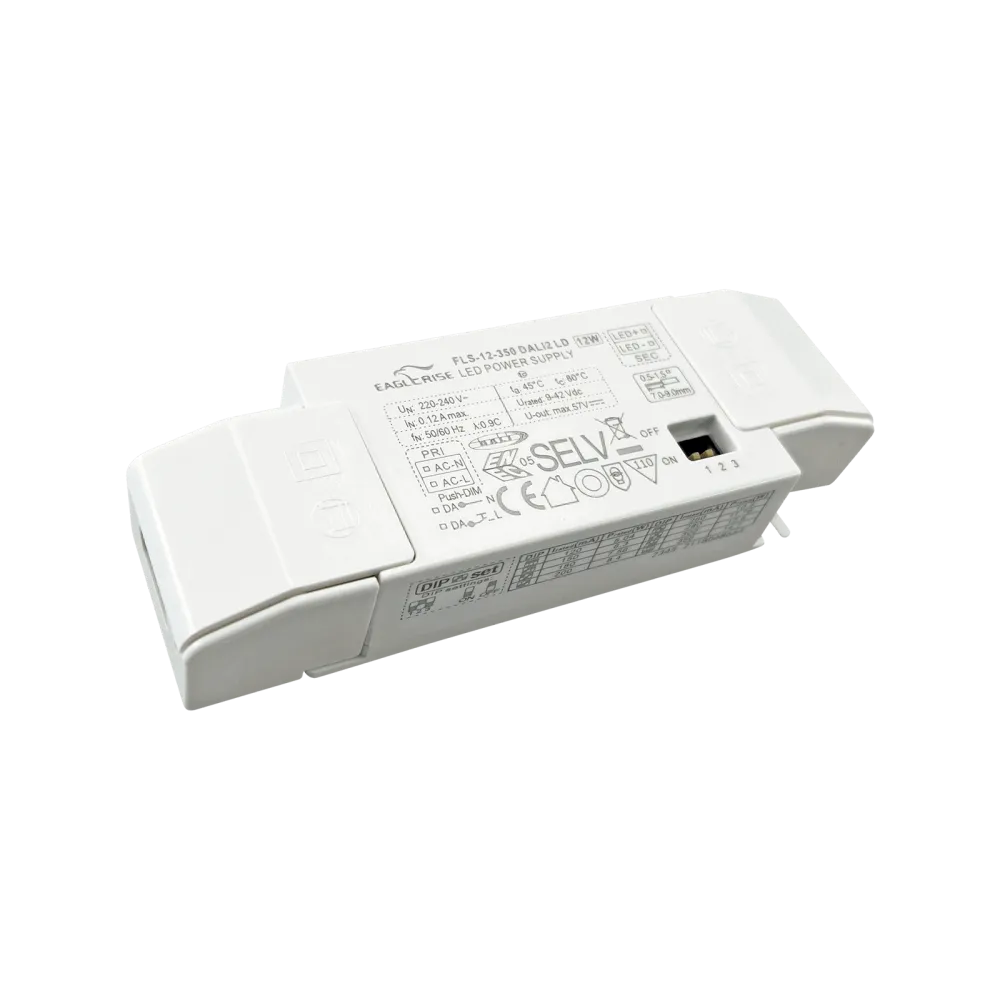

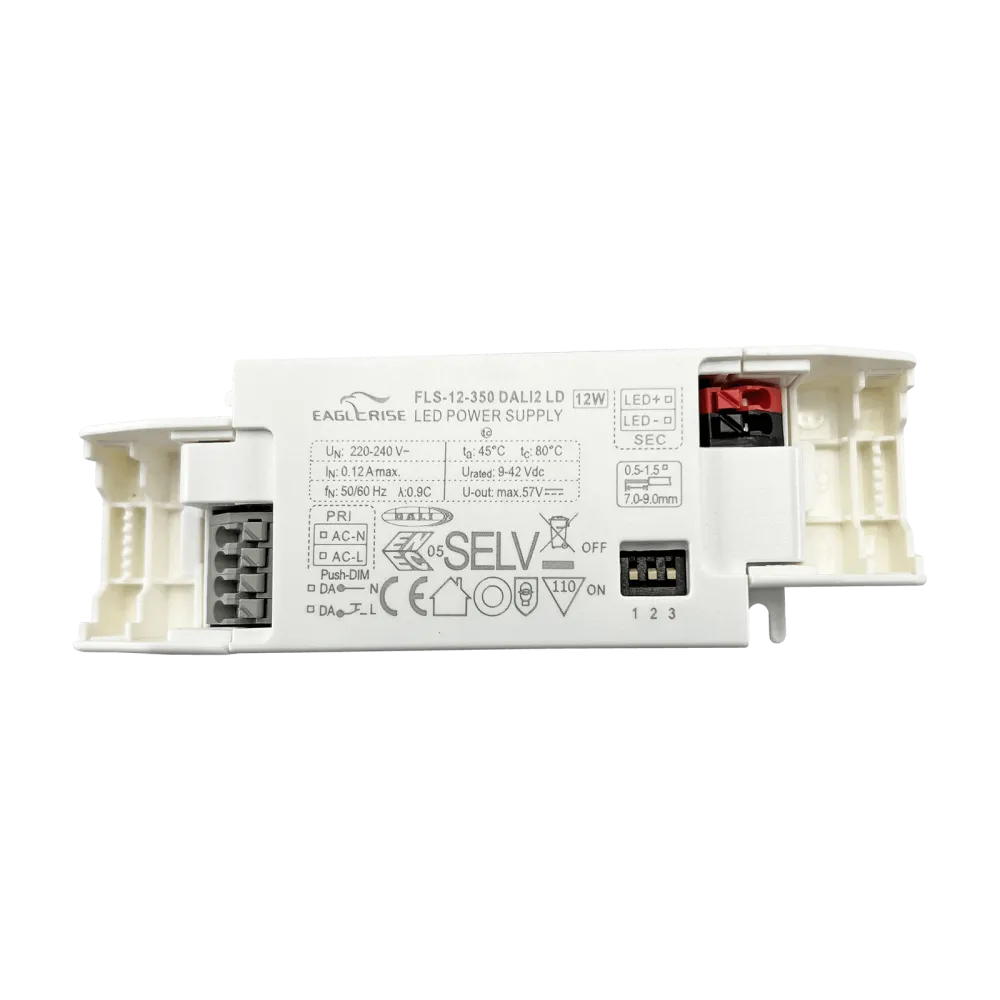

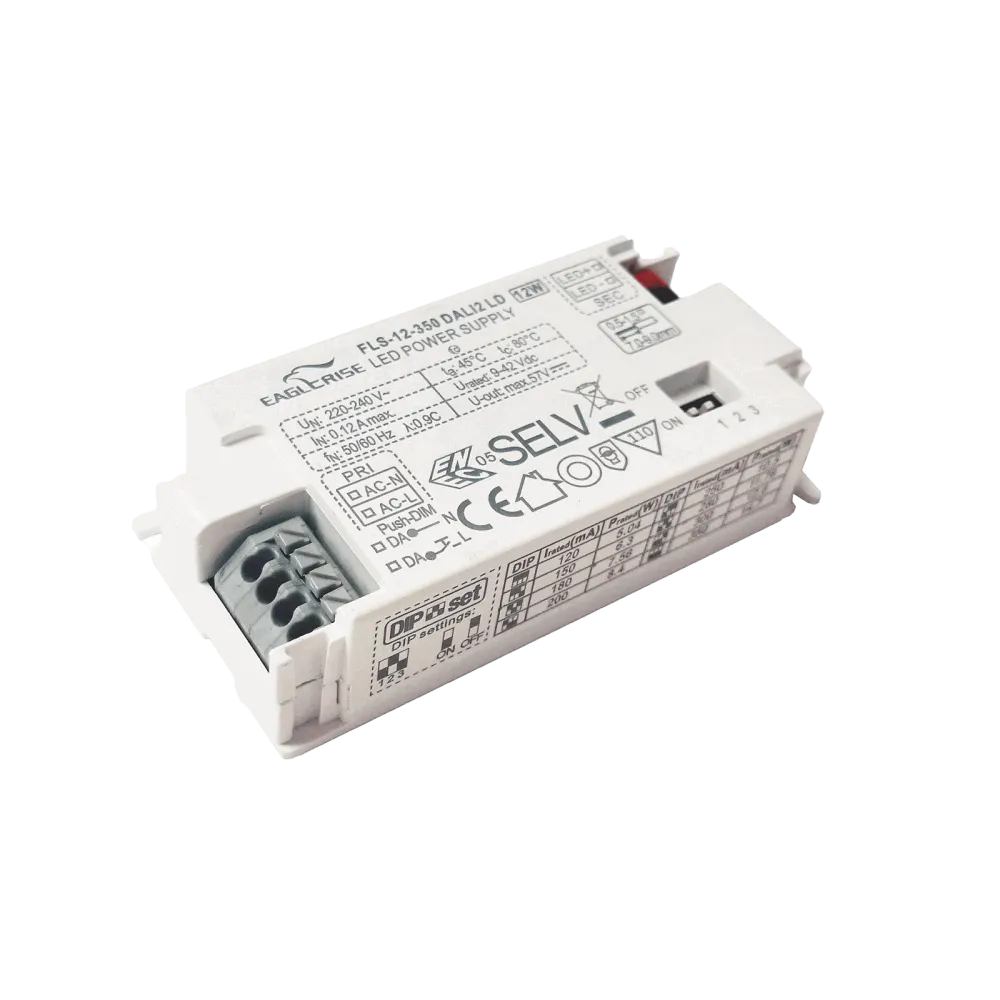

FLS-12-350 DALI2 LDC is a 12W constant current LED driver with 150 to 350mA output current and a forward voltage range from 9 to 42Vdc. The output current is selectable by DIP Switch. With it’s dimensions from 85x 40 x 21.5mm and the DALI2 and Push dimming interface it is easy to integrate in LED Panel, spot and down light products.

Side Cover Set for operation outside the luminaire is already installed.

Technical data

Input voltage 198 to 264Vac
Output current 120mA / 150mA / 200mA / 250mA / 300mA / 350mA selectable by DIP switch
DALI2 and AC push dimming interface
Dimming range 1…100% with linear current dimming (no PWM)
Vf range 9 to 42Vdc
Dimensions 85 x 40 x 21,5mm (L x W x H) without side cover / 119x40x21,5mm with side cover (factory assembled)

Product specifications

Power	12 W
Output current	120-350 mA
Product series	FLS
Input voltage range (VAC)	200-240 V
Manufacturer	Eaglerise
Manufacturer warranty	5 years
Additional functions	Corridor function
Connection	Push-in terminal
IP protection	IP20
Height	21.5 mm
Width	40 mm
Length	85 mm
Application	Single color
Dimming method	Current regulation
Current setting	DIP switch
Channels	1
Control	DALI2, DALI, AC Push Dimming
Output voltage range (VDC)	9-42 V
