21W LED Driver Constant Current 150-500mA, 10-42Vdc

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

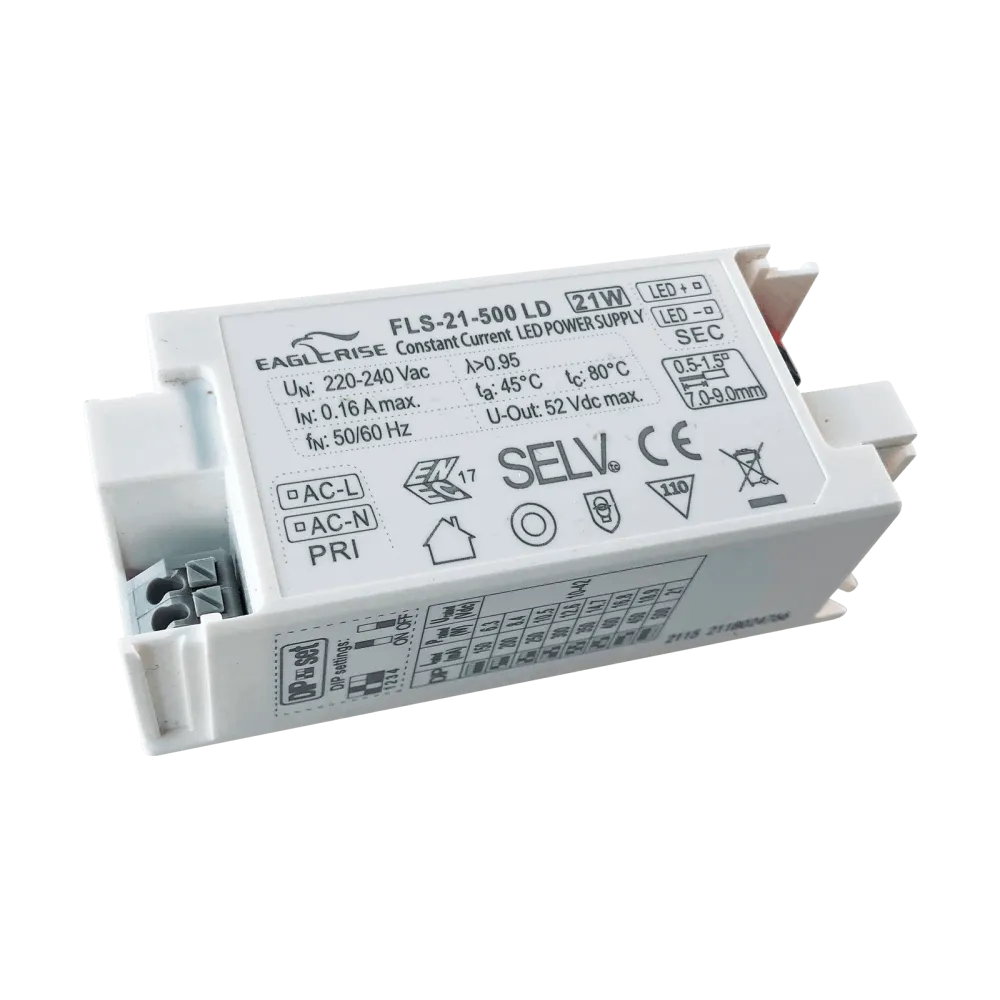

FLS-21-500 LA is an 21W constant current LED driver with 150 to 500mA output and a forward voltage range from 10 to 42Vdc. The output current is selectable by DIP switch. Together with the optional side covers it is also suitable as independent LED driver.

Technical data

Input voltage 176 bis 264Vac
Output current 150mA / 200mA / 250mA / 300mA / 350mA / 400mA / 500mA selectable by DIP switch
Vf range 10 to 42Vdc
Dimensions 97 x 43 x 30mm (L x W x H) without side cover / 130x43x30mm with side cover
5 years warranty
Manufacturer: Eaglerise

Product specifications

Power	20 W
Output voltage range (VDC)	10-42 V
Output current	150-500 mA
Input voltage range (VAC)	200-240 V
Manufacturer	Eaglerise
Manufacturer warranty	5 years
Connection	Push-in terminal
IP protection	IP20
Height	30 mm
Width	43 mm
Length	97 mm
Application	Single color
Current setting	DIP switch
Channels	1
Control	Non-dimmable
Product series	FLS
