8W LED Driver Constant Current 120-350mA, 5-42Vdc, DALI2

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

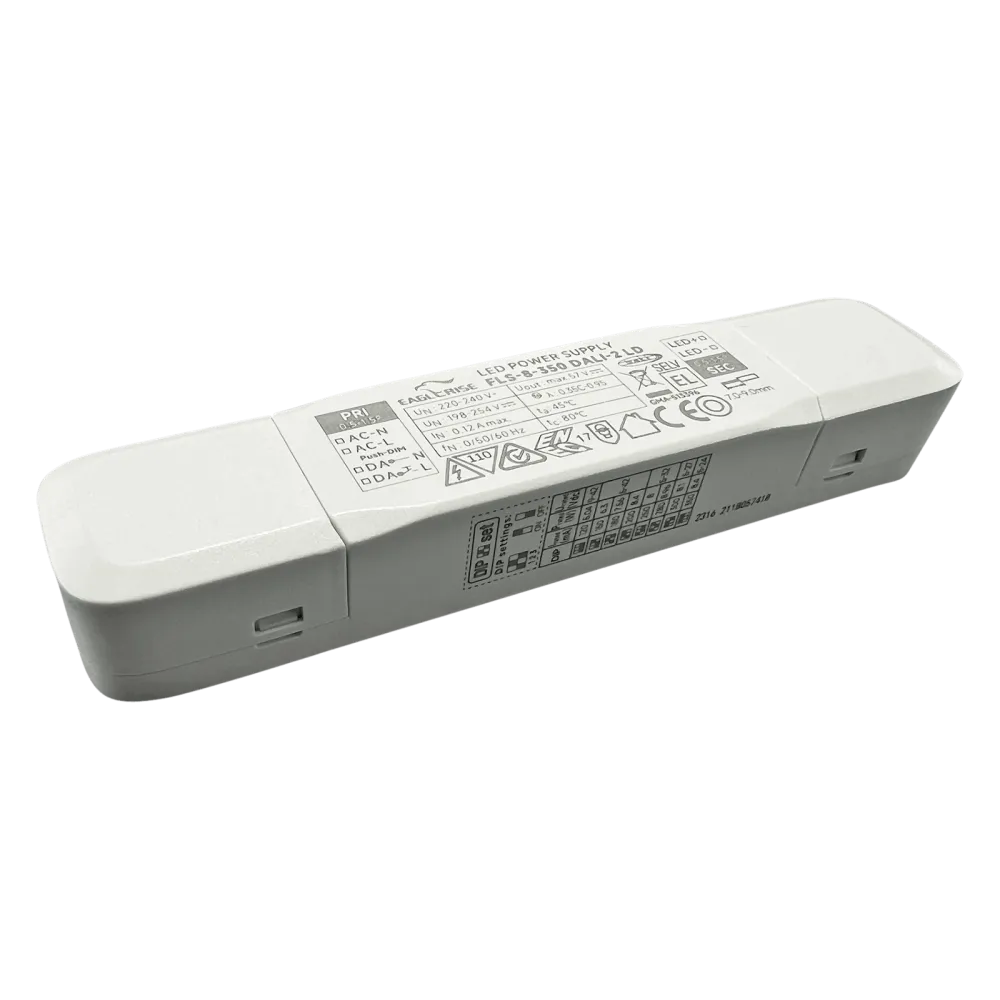

FLS-8-350 DALI2 LD is a 8W constant current LED driver with 150 to 350mA output current and a forward voltage range from 5 to 42Vdc. The output current is selectable by DIP Switch. With it’s dimensions from 142x 30 x 20mm and the DALI2 and Push dimming interface it is easy to integrate in LED Panel, spot and down light products.

Technical data

Input voltage 198 bis 264Vac
Output current 150mA / 200mA / 250mA / 300mA / 350mA selectable by DIP switch
DALI2 and AC push dimming interface
Dimming range 1…100% with linear current dimming (no PWM)
Vf range 9 to 42Vdc
Dimensions 142 x 30 x 20mm (L x W x H)

Product specifications

Power	8 W
Output current	120-350 mA
Product series	FLS
Input voltage range (VAC)	200-240 V
Manufacturer	Eaglerise
Manufacturer warranty	5 years
Additional functions	Corridor function
Connection	Push-in terminal
IP protection	IP20
Height	20 mm
Width	30 mm
Length	142 mm
Application	Single color
Dimming method	Current regulation
Current setting	DIP switch
Channels	1
Control	DALI2, DALI, AC Push Dimming
Output voltage range (VDC)	5-42 V
