10W DALI/Push+Triac+0/1-10V LED Driver

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

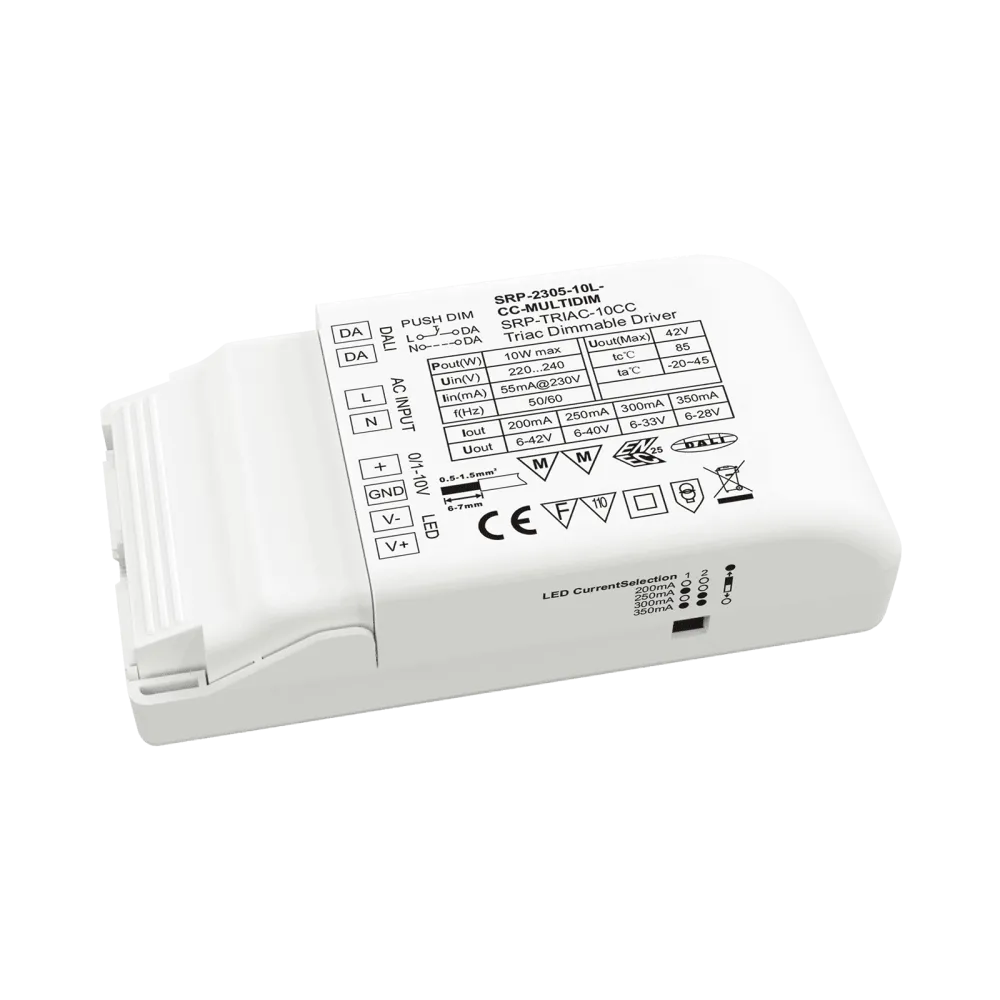

SRP-2305-10L-CC-MULTIDIM is a flexible, dimmable LED converter with constant current output. This 4in1 power supply unit can be controlled with DALI, TRIAC, AC-Push etc.

Control

DALI, AC-PUSH, 0/1-10V, TRIAC

Application

Single colour

Dimming range

The load-dependent dimming range is 1% to 100% of the connected load.

Dimming method: 10%-100% = analogue current control, no PWM output, flickerfree (1%-10% = PWM dimming 1.5kHz)

Product specifications

Power	10 W
Output voltage range (VDC)	6-42 V
Output current	200-350 mA
Input voltage range (VAC)	200-240 V
Manufacturer	Sunricher
Manufacturer warranty	5 years
Connection	Screw terminal
IP protection	IP20
Height	30 mm
Width	52.6 mm
Length	103.7 mm
Application	Single color
Dimming method	Hybrid
Current setting	DIP switch
Channels	1
Control	DALI, AC Push Dimming, Phase dimmer, 0-10V, 1-10V
Product series	SRP-2305
