About the product

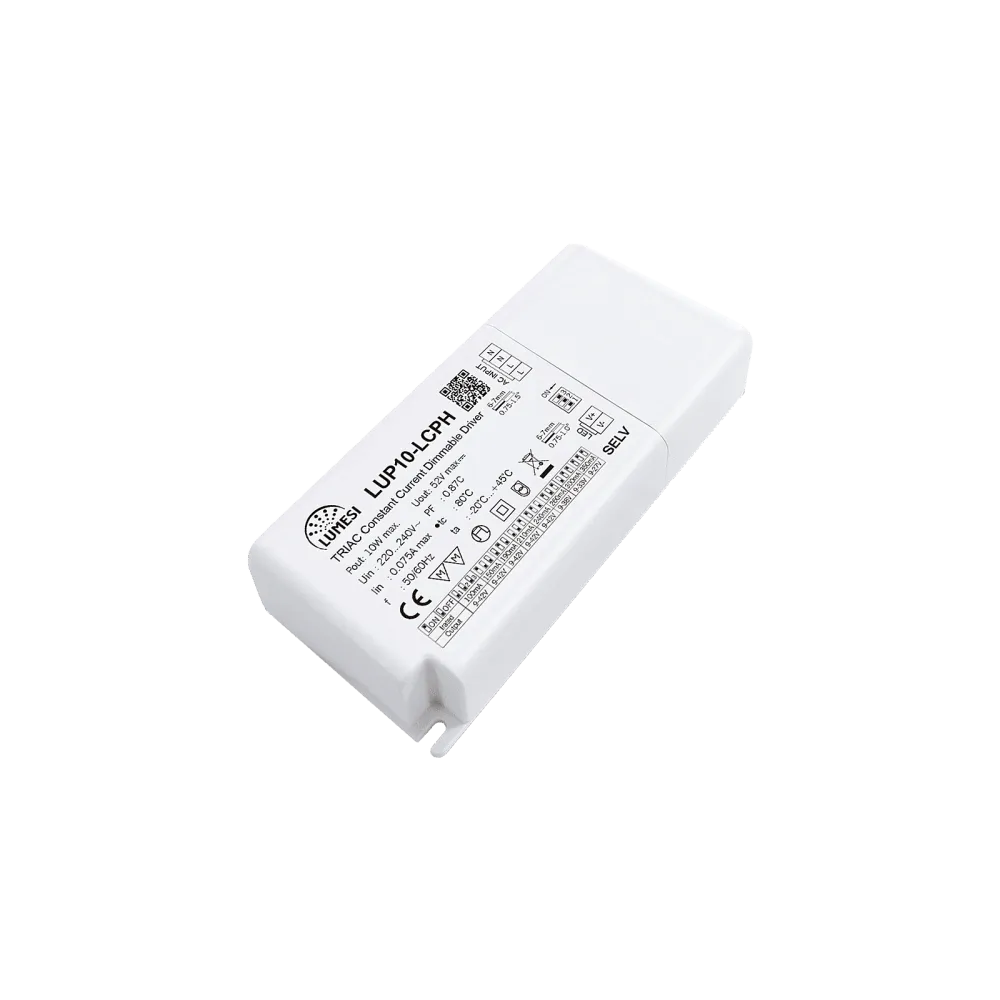

LUP10-LCPH is a flexible, dimmable LED converter with constant current output. The power supply can be controlled with TRIAC/phase dimmer.
Control
- TRIAC
Application
- Single colour
Dimming range
The dimming range is 1% to 100% of the output current.
Dimming method: Amplitude dimming, soft and deep dimming up to 1%.
Technical data
- LUP10-LCPH is an LED driver with adjustable output current.
- This can be selected via a dip switch
- Max. Output power 10W
- 1 channel 100-350mA constant current output adjustable with DIP switch
- Triac dimming function
- Dimming range: 1-100%, dimming effect uniform, no flickering
- Protection functions: Short circuit, overload
- High power factor and efficiency
- For switching and dimming single-colour LED lighting
- Dimension: 114 x 53 x 22mm
- Protection class IP20
- 5 years warranty
Product specifications
| Power | 10 W |
| Output current | 100-350 mA |
| Manufacturer | Lumesi |
| Manufacturer warranty | 5 years |
| Connection | Push-in terminal |
| IP protection | IP20 |
| Height | 22 mm |
| Width | 53 mm |
| Length | 114 mm |
| Application | Single color |
| Dimming method | Current regulation |
| Current setting | DIP switch |
| Channels | 1 |
| Control | Phase dimmer |
| Output voltage range (VDC) | 9-42 V |
