20W LED Driver Constant Current 80 to 500mA, 2.5 to 49Vdc, DALI2, AC Push, NFC

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

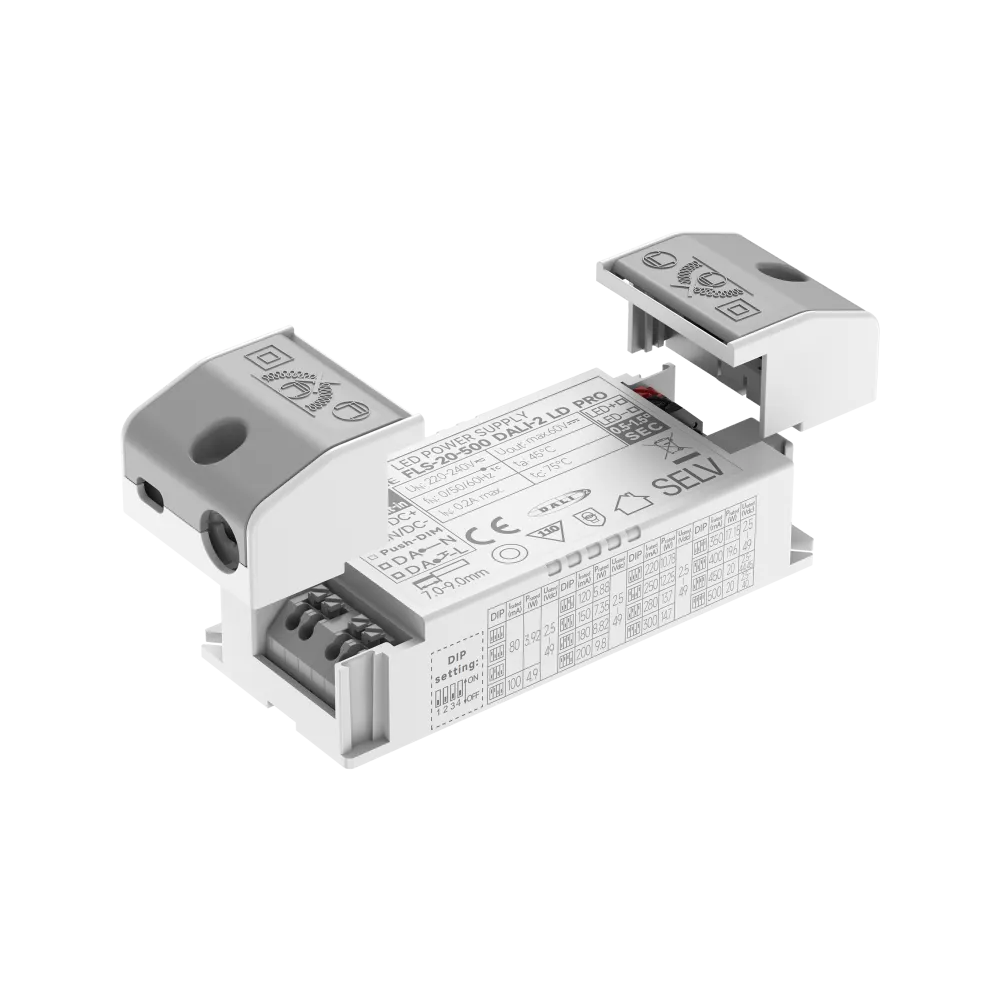

The FLS-20-500-DALI2-LN-PRO-C LED driver with constant current output is designed for the operation of LED lighting applications from 80 to 500mA in the voltage range from 2.5 to 49Vdc. The output current and the constant lumen output (CLO) can be set via NFC. Side covers for operation outside the luminaire are fitted ex works. The driver can be dimmed with DALI2 and AC Push in the range of 1-100%.

Eaglerise NFC app

IOS Link
Android Link

Technical data

Forward voltage range 2.5 to 49Vdc
DALI2 and AC Push interface
Amplitude dimming with dimming range 1…100%
Output currents 80 to 500mA, programmable via NFC
CLO function, programmable via NFC
Dimensions 88 x 40 x 22mm (L x W x H) without side cover / 122x40x22mm with side cover (factory fitted)

Product specifications

Panel power	20 W
Output voltage range (VDC)	2.5-49 V
Output current	80-500 mA
Product series	FLS
Input voltage range (VAC)	200-240 V
Manufacturer	Eaglerise
Manufacturer warranty	5 years
Additional functions	Corridor function
Connection	Push-in terminal
IP protection	IP20
Height	22 mm
Width	40 mm
Length	88 mm
Application	Single color
Dimming method	Current regulation
Current setting	NFC
Channels	1
Control	DALI, AC Push Dimming
Efficiency	87.00%
