About the product

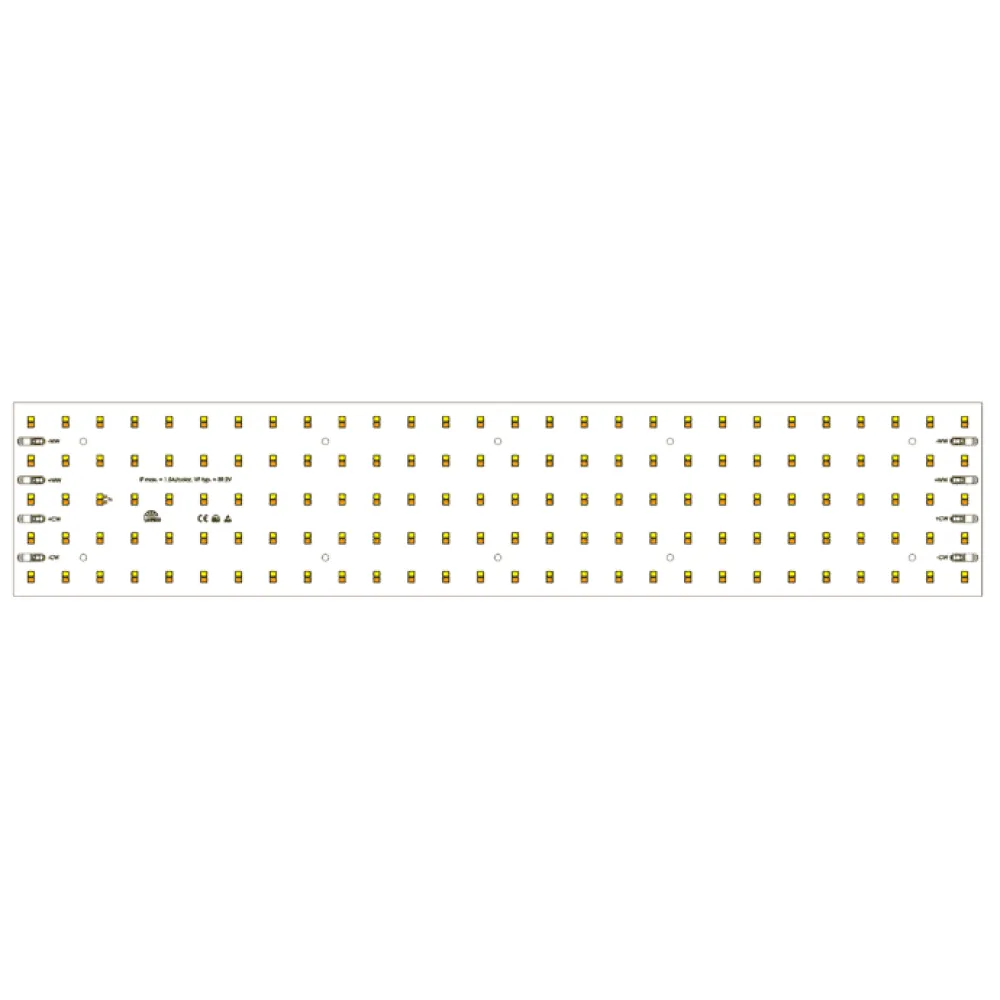

- Rectangular Tunable White LED module with an adjustable colour temperature from 2700K to 6500K (= one print for 2700K or 6500K).
- This module can also be operated as a standard 2700K or 6500K version, as both colour temperatures can be controlled individually.
- Extremely high module efficiency (constant current)
- Very high colour rendering Ra >90
- Very narrow colour tolerance (MacAdam 3)
- Ideal for linear luminaires or area lighting
Technical data
- Light colour: warm white, cool white
- Colour temperature: 2700K, 6500K
- Colour rendering Ra: >90
- Colour BIN: 3SDCM
- Luminous flux typ.: 2148lm, 2374lm
- Operating mode: Constant current CC
- Rated voltage typ.: 26.6V
- Rated current typ.: 0.5A
- Rated power typ.: 13.3W
- Dimension: 500x100mm
- Material: FR-4
- LED: 280 pcs. Samsung LM281B+PRO LED (UK-Bin), LM80 tested
- Connectors: 8x WAGO 2060-451_998-404 terminals (+WW, -WW, +CW, -CW)
- Radiation: 120°
Product specifications
| Application | Single color, Tunable white |
| Light colour | Cool white|Warm white |
| Forward voltage | 26.6 V |
| PCB material | Aluminum |
| Luminous flux | 2374 lm |
| Power | 13.3 W |
| Length | 500 mm |
| Shape | Linear |
| Colour rendering Ra | 90 |
| Colour temperature (K) | 2700-6500 K |
| Width | 100 mm |
| Operating mode | CC |
| Manufacturer | Lumesi |
