About the product

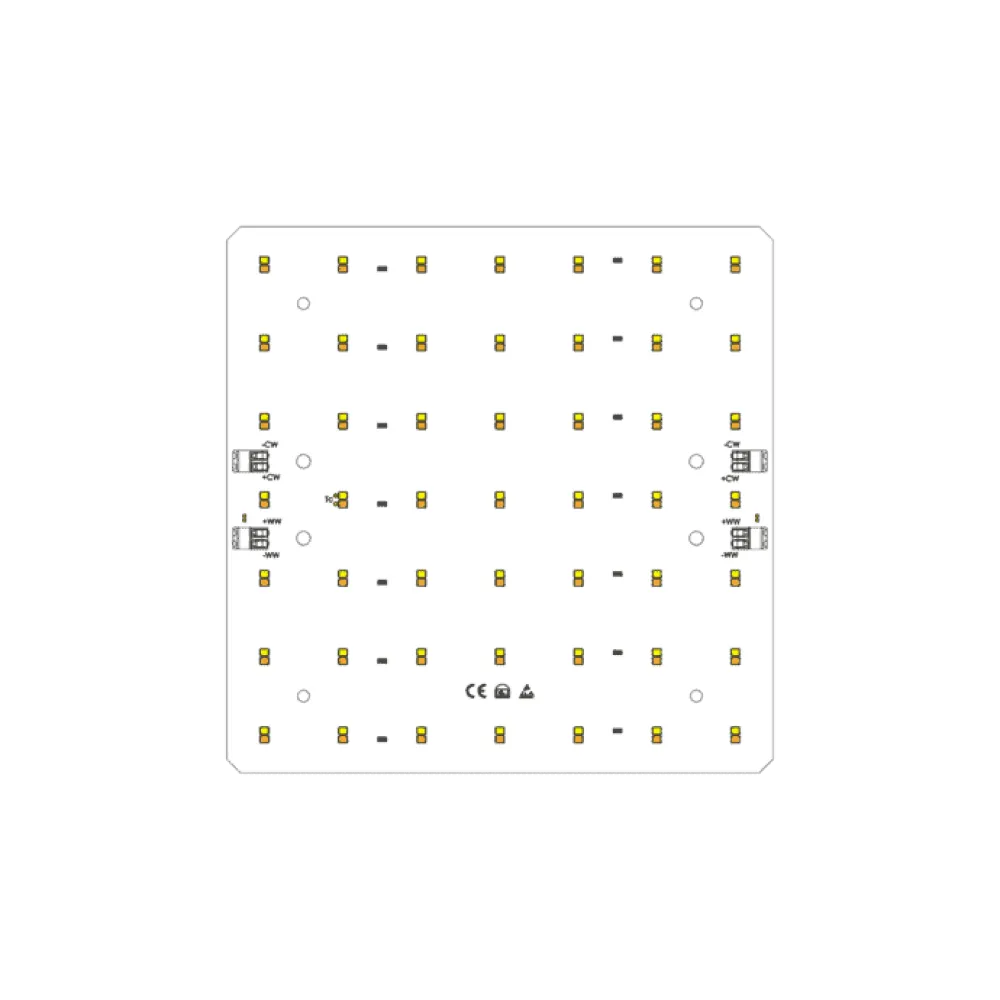

- Square Tunable White LED module with an adjustable colour temperature from 3000K to 4000K (= one print for 3000K or 4000K).
- This module can also be operated as a standard 3000K or 4000K version, as both colour temperatures can be controlled individually.
- Extremely high module efficiency (constant current)
- Very high colour rendering Ra >90
- Very narrow colour tolerance (MacAdam 3)
- Ideal for linear luminaires and area lighting
Technical data
- Operating mode: 24V constant voltage
- Rated current: typ. 595mA
- Rated voltage: 24VDC
- Luminous flux: 1800lm@500mA, Ts=25°C
- Dimension: 200mm x 200mm
- LED: 98 x SAMSUNG LM281B+ LED (SG-BIN)
- Connector: 4 x Wago 2059-302
- PCB material: CEM-3
Colour temperature: 3000K-4000K - CRI: >90
- Beam angle: 120
Product specifications
| Application | Single color, Tunable white |
| Light colour | Neutral white|Warm white |
| PCB material | FR-4 |
| Luminous flux | 1800 lm |
| Length | 200 mm |
| Shape | Square |
| Colour rendering Ra | 90 |
| Colour temperature (K) | 3000-4000 K |
| Width | 200 mm |
| Operating mode | 24 V DC |
| Manufacturer | Lumesi |
