About the product

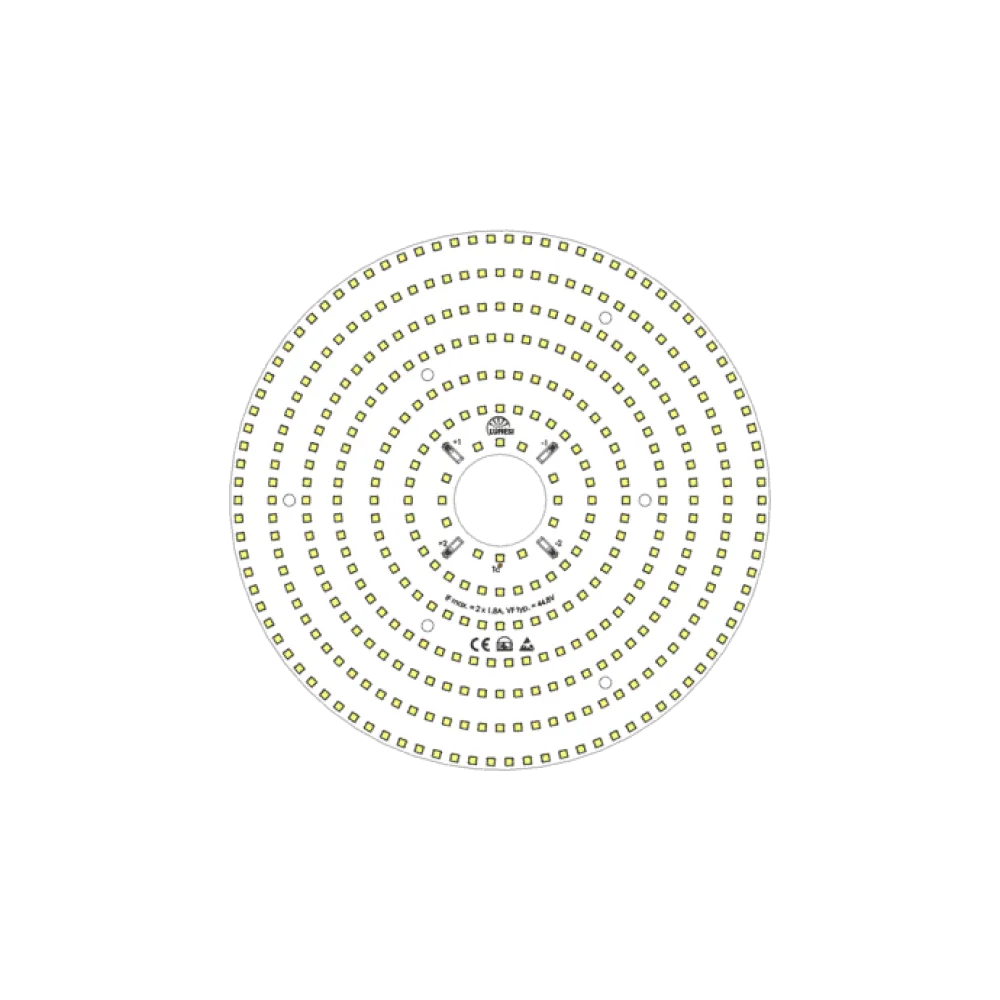

- Ring-shaped LED module with a colour temperature of 4000K
- Extremely high module efficiency (constant current)
- High colour rendering Ra >80
- Very narrow colour tolerance (MacAdam 3)
- The SIMRING is ideally suited for retrofitting an existing Circline luminaire or for circular downlights, wall luminaires and ceiling luminaires
Technical data
Light colour: warm white
Colour temperature: 4000K
Colour rendering Ra: >80
Colour BIN: 3SDCM
Luminous flux typ.: 20167lm
Operating mode: Constant current CC
Rated voltage typ.: 44.64V
Rated current typ.: 2x 1.2A
Rated power typ.: 107.1W
Dimension: Ø205mm outer, Ø35mm inner
Material: Aluminium
LED: 384 pcs. Samsung LM281B+PRO (VK-Bin), LM80 tested
Connectors: 4 x BJB 46.141.1001.50
Beam angle: 120°
Product specifications
| Application | Single color |
| Light colour | Neutral white |
| Forward voltage | 44.64 V |
| PCB material | Aluminum |
| Luminous flux | 20167 lm |
| Power | 107.1 W |
| Inner diameter | 35 mm |
| Shape | Ring |
| Colour rendering Ra | 80 |
| Colour temperature (K) | 4000 K |
| Operating mode | CC |
| Outer diameter | 205 mm |
| Manufacturer | Lumesi |
