About the product

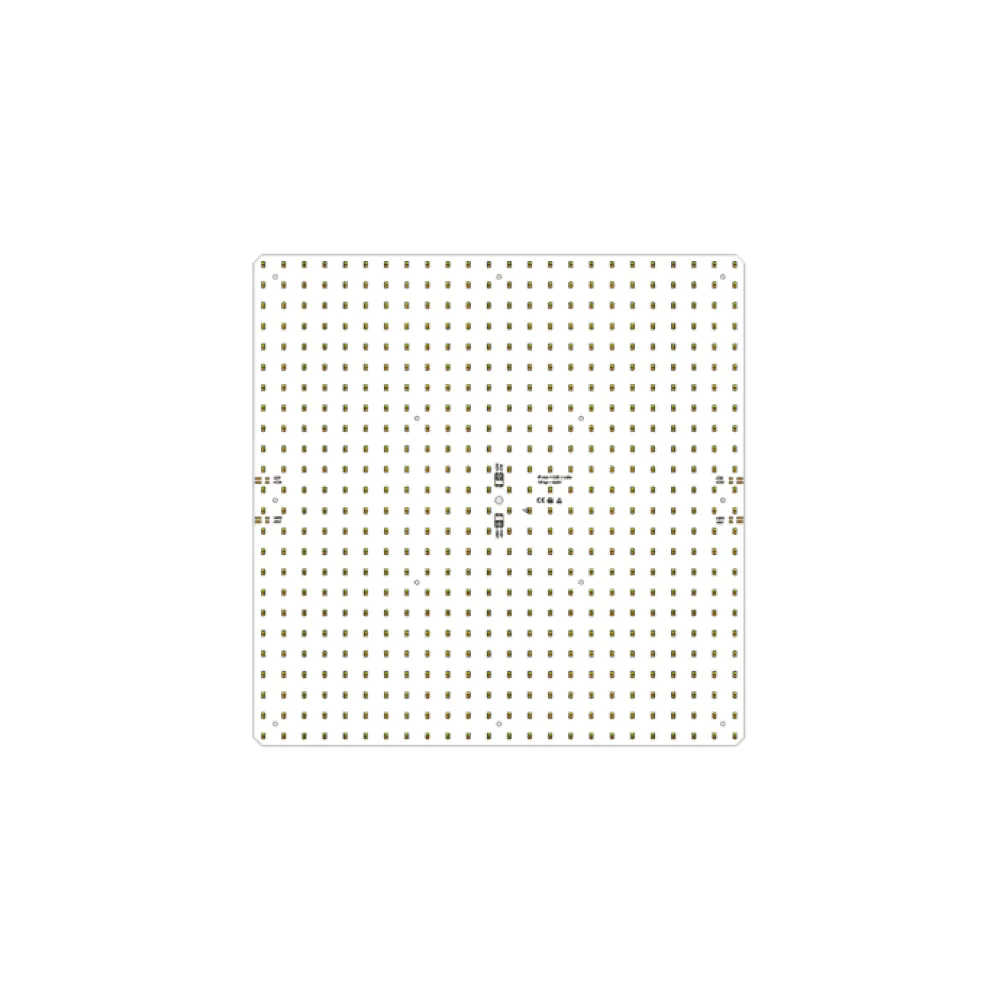

- Square Tunable White LED module with an adjustable colour temperature from 3000K to 4000K (= one print for 3000K or 4000K).
- This module can also be operated as a standard 3000K or 4000K version, as both colour temperatures can be controlled individually.
- Extremely high module efficiency (constant current)
- Very high colour rendering Ra >90
- Very narrow colour tolerance (MacAdam 3)
- Ideal for linear luminaires and area lighting
Technical data
- Light colour: Warm white, Neutral white
- Colour temperature: 2700K, 6500K
- Colour rendering Ra: >90
- Colour BIN: 3SDCM
- Luminous flux typ.: 5979lm, 6651lm
- Operating mode: Constant current CC
- Rated voltage typ.: 44.3V
- Rated current typ.: 0.9A
- Rated power typ.: 39.8W
- Dimension: 494x494mm
- Material: Aluminium
- LED: 1152 pcs. Samsung LM281BA+ LED (U3-Bin), LM80 tested
- Connections: 2x WAGO 2060-452 terminals (+WW, -WW, +CW, -CW)
- Radiation: 120
Product specifications
| Application | Single color, Tunable white |
| Light colour | Cool white|Warm white |
| Forward voltage | 44.3 V |
| PCB material | Aluminum |
| Luminous flux | 6651 lm |
| Length | 495 mm |
| Shape | Square |
| Colour rendering Ra | 90 |
| Colour temperature (K) | 2700-6500 K |
| Width | 495 mm |
| Operating mode | CC |
| Manufacturer | Lumesi |
