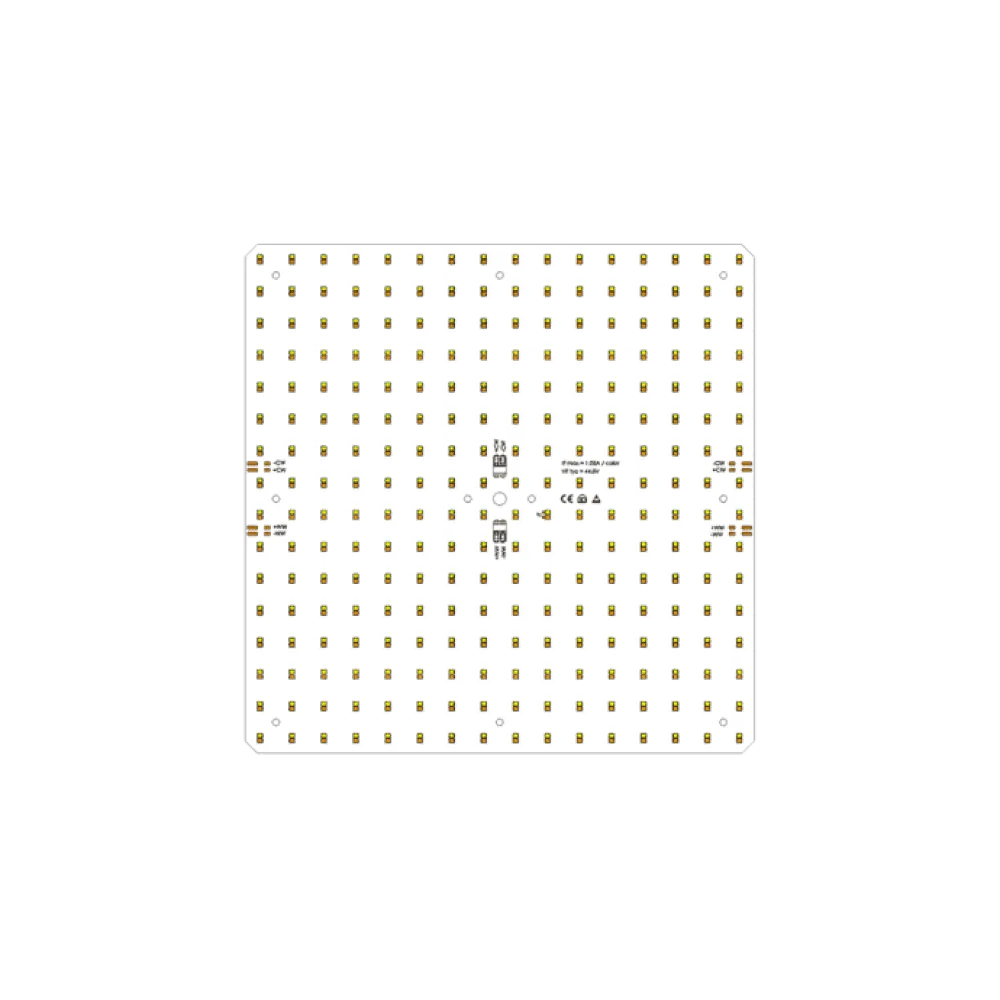

About the product
- Square Tunable White LED module with an adjustable colour temperature from 3000K to 4000K (= one print for 3000K or 4000K).
- This module can also be operated as a standard 3000K or 4000K version, as both colour temperatures can be controlled individually.
- Extremely high module efficiency (constant current)
- Very high colour rendering Ra >90
- Very narrow colour tolerance (MacAdam 3)
- Ideal for linear luminaires and area lighting
Technical data
- Light colour: Warm white, Neutral white
- Colour temperature: 3000K, 4000K
- Colour rendering Ra: >90
- Colour BIN: 3SDCM
- Luminous flux typ.: 3980lm, 4230lm
- Operating mode: Constant current CC
- Rated voltage typ.: 45.5V
- Rated current typ.: 0.6A
- Rated power typ.: 27.3W
- Dimension: 319x319mm
- Material: FR-4
- LED: 512 pcs. Samsung LM281BA+ LED (U3-Bin), LM80 tested
- Connections: 2x WAGO 2060-452 terminals (+WW, -WW, +CW, -CW)
- Radiation: 120°
Product specifications
| Application | Single color, Tunable white |
| Light colour | Neutral white|Warm white |
| Forward voltage | 45.5 V |
| PCB material | FR-4 |
| Luminous flux | 4230 lm |
| Length | 319 mm |
| Shape | Square |
| Colour rendering Ra | 90 |
| Colour temperature (K) | 3000-4000 K |
| Width | 319 mm |
| Operating mode | CC |
| Manufacturer | Lumesi |
