About the product

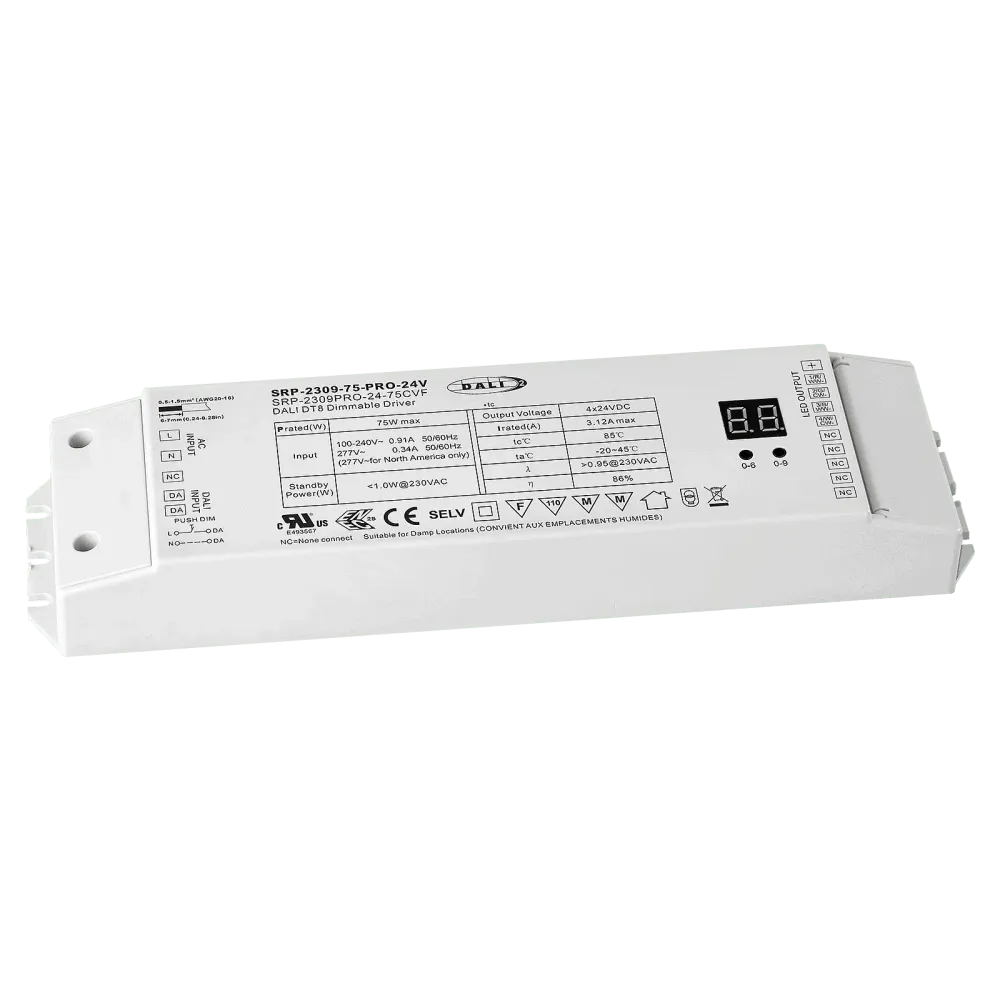

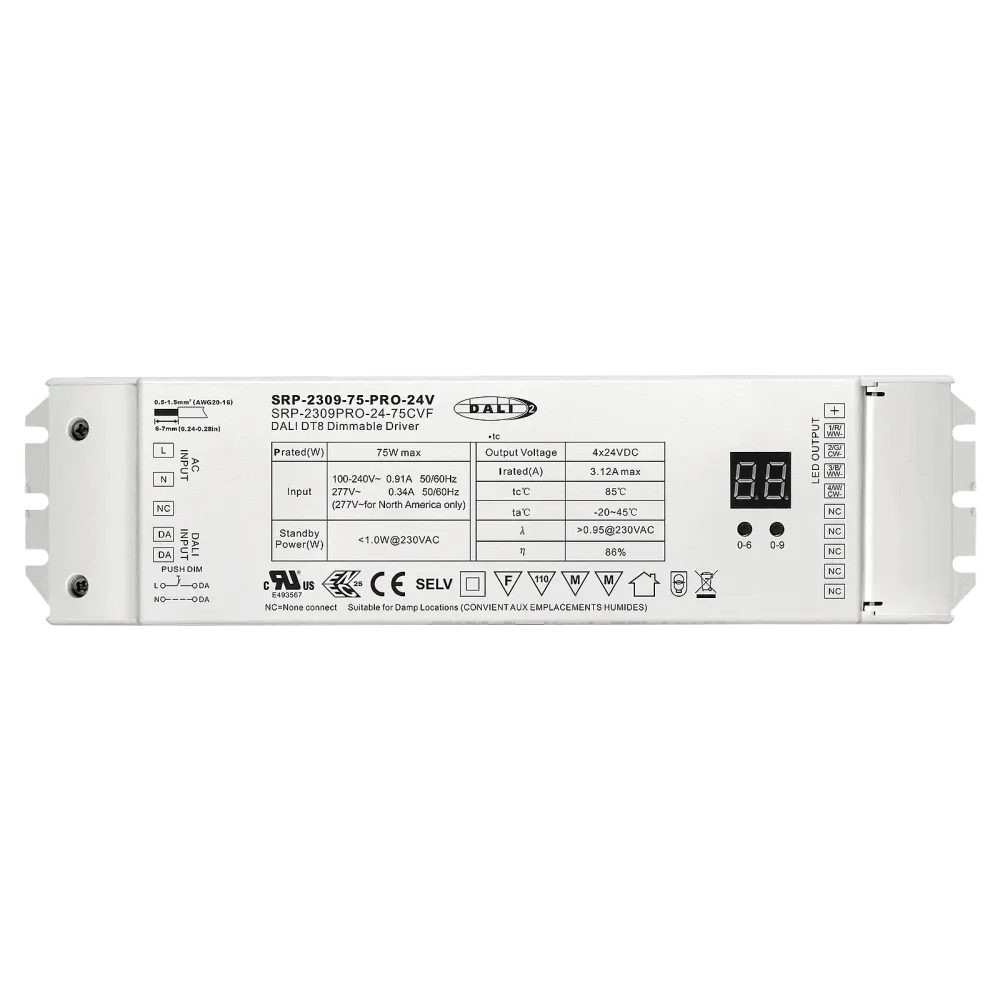

SRP-2309-75-PRO-24V with PWM output and integrated DALI2 DT8 interface is ideal for operating constant voltage LED applications such as LED strips. One device for all lighting situations, TW, single color, RGB and RGBW.
Control
- DALI2 DT8, AC-Push
Application
- Tunable White, RGBW, RGBW, Single Color
Dimming range
The load-independent dimming range is 0.1% to 100% of the connected load.
Dimming method: PWM, 1.5kHz
Technical data
- dimmable 4 in 1 DALI2 DT8 power supply unit (primary N, Tc (Tunable White), XY coordinate, RGBW)
- 100-277VAC Input voltage range
- 4-channel DC24V constant voltage outputs
- Built-in DALI2 interface, DALI DT8 device, the device can be controlled via a DALI address
- Color control according to DALI DT8 specifications
- Complies with the DALI IEC 62386-209-:2011 standard
- Generally compatible with DALI masters that support DT8 commands
- Compatible with AC-Push Dimmer
- IP20 protection class, suitable for indoor lighting projects
- Protection class II Driver without earth connection
- Plastic housing
- Operating temperature range from -20°C to +45°C
- Dimension 244 x 64 x 32mm
- 5 year guarantee
Product specifications
| Height | 32 mm |
| Application | RGB, RGBW, Single Color, Tunable White |
| Dimming type | PWM |
| IP protection | IP20 |
| Control | DALI, DALI DT8, AC Push Dimming |
| Output current | 3.12 A |
| Product series | SRP-2309 |
| Width | 64 mm |
| Channels | 4 |
| Power | 75 W |
| Length | 244 mm |
| Input voltage range (VAC) | 100-277 V |
| Output voltage (VDC) | 24 V |
| Connection | Spring clamp, screw clamp |
