About the product

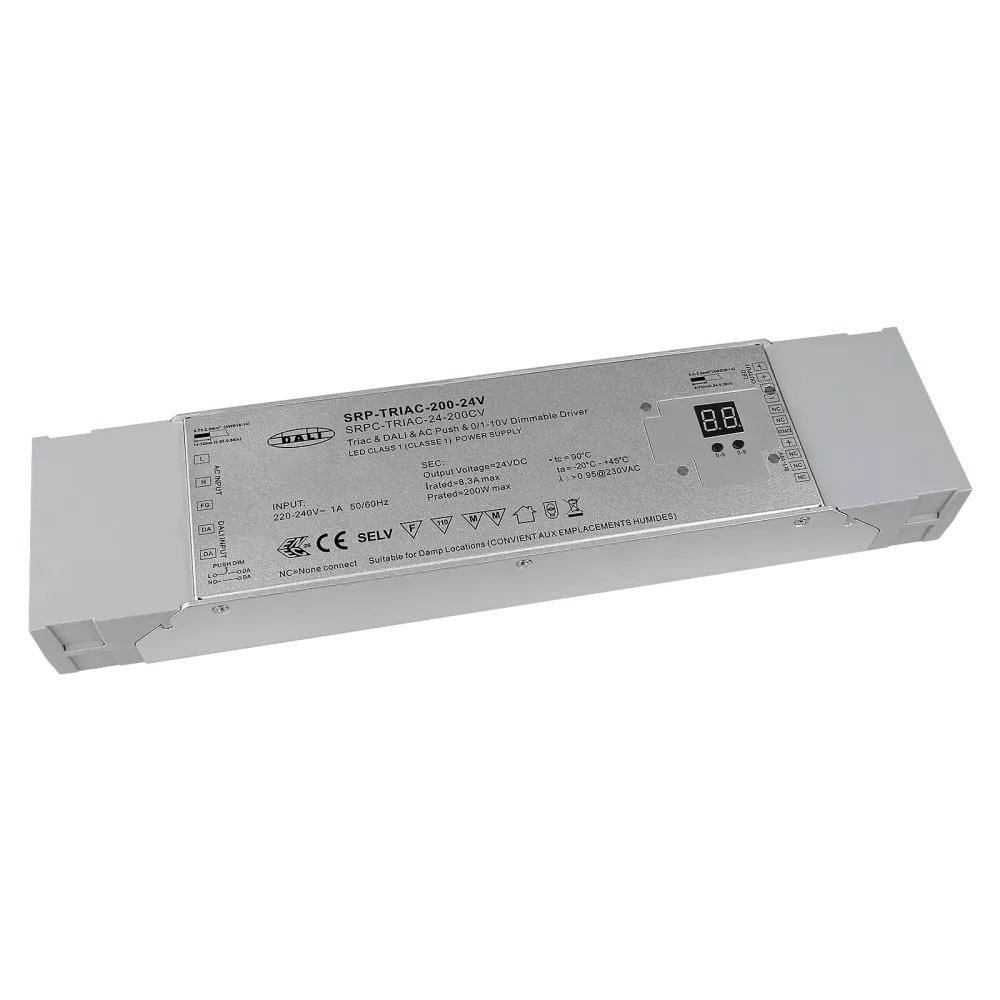

SRP-TRIAC-200-24V MULTIDIM with PWM output and integrated DALI interface is ideal for operating constant voltage LED applications such as LED strips. Various control options in one device such as DALI, TRIAC, AC PUSH etc.
Control
- 0-10V, 1-10V, AC push dimming, DALI, phase dimmer
Application
- Single Color
Dimming range
The load-independent dimming range is 0.1% to 100% of the connected load.
Dimming method: PWM, 1.5kHz
Technical data
- DALI, AC-PUSH, TRIAC, 0/1-10V dimmable power supply unit
- 1 channel 24VDC constant voltage power supply unit
- 2 synchronous constant voltage outputs
- Complies with IEC DALI standards IEC62386-101, 102, 207
- IP20 protection class, suitable for indoor lighting projects
- Protection class II Driver without earth connection
- Plastic housing
- Operating temperature range from -25°C to +45°C
- Dimension 330 x 79 x 39mm
- 5 year guarantee
Product specifications
| Manufacturer | Sunricher |
| Dimming type | PWM |
| IP protection | IP20 |
| Height | 39 mm |
| Width | 79 mm |
| Length | 330 mm |
| Product series | SRP |
| Input voltage range (VAC) | 200-240 V |
| Connection | Screw terminal |
| Output current | 8.3 A |
| Power | 200 W |
| Channels | 1 |
| Output voltage (VDC) | 24 V |
| Application | Single color |
| Control | DALI, AC Push Dimming, Phase dimmer, 0-10V, 1-10V |
