About the product

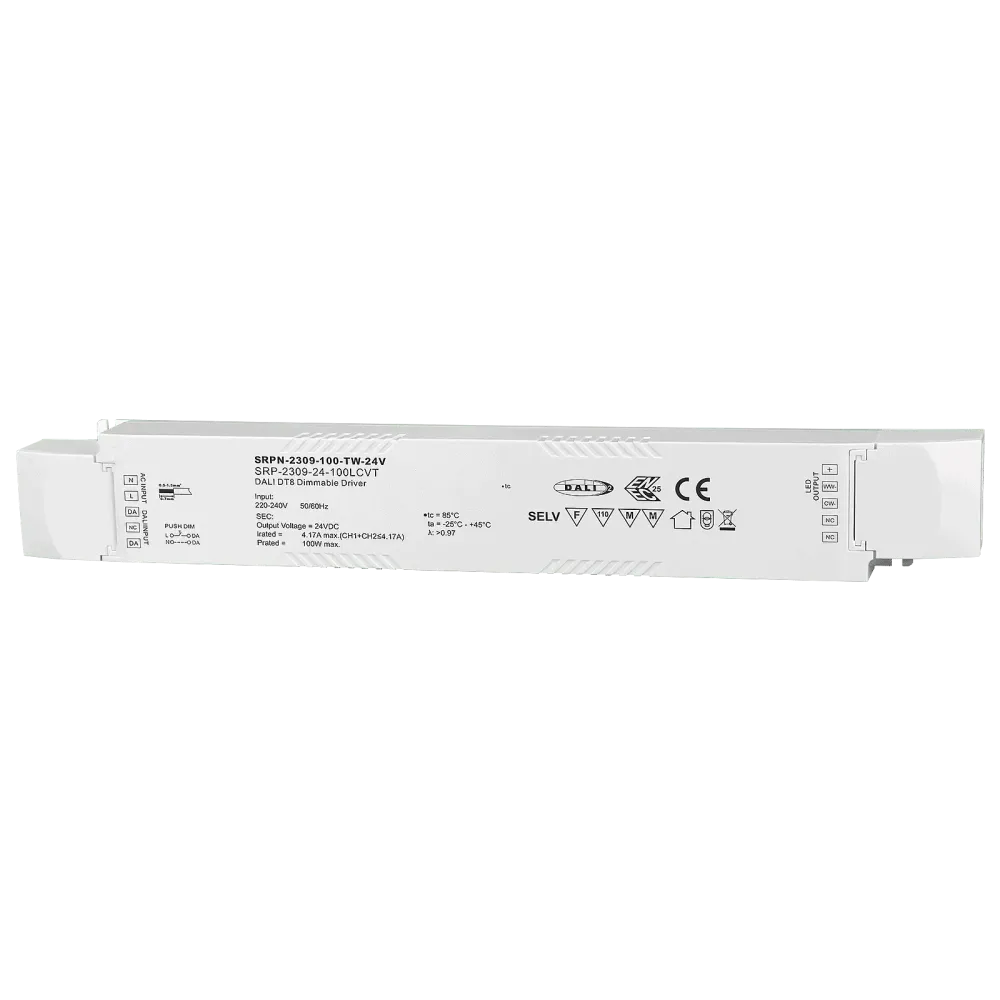

SRPN-2309-100-TW-24V with PWM output and integrated DALI2 DT8 interface is ideal for the operation of Tunable White constant voltage LED applications such as LED strips.
Control
- DALI2 DT8
Application
- Tunable White
Dimming range
The load-independent dimming range is 0.1% to 100% of the connected load.
Dimming method: PWM, 1.5kHz
Technical data
- DALI DT8 dimmable 2-channel TW power supply unit
- DALI2 certified
- 100-277VAC wide input voltage range
- 2-channel 24VDC constant voltage outputs
- Max. output current: 4.17A
- Built-in DALI2 interface, DALI DT8 device, the device can be controlled via a Dali address
- Color control according to DALI DT8 specifications
- Complies with the DALI IEC 62386-209-:2011 standard
- Generally compatible with DALI masters that support DT8 commands
- IP20 Protection class
- Protection class II Driver without earth connection
- Plastic housing
- Operating temperature range from -20°C to +45°C
- Dimension 306.6 x 43 x 30mm
- 5 year guarantee
Product specifications
| Height | 30 mm |
| Application | Tunable White |
| IP protection | IP20 |
| Control | DALI, DALI DT8, AC Push Dimming |
| Product series | SRPN-2309 |
| Length | 306.6 mm |
| Output current | 4.17 A |
| Power | 100 W |
| Width | 43 mm |
| Connection | Screw terminal |
| Input voltage range (VAC) | 220-240 V |
| Channels | 2 |
| Output voltage (VDC) | 24 V |
| Dimming type | PWM |
