About the product

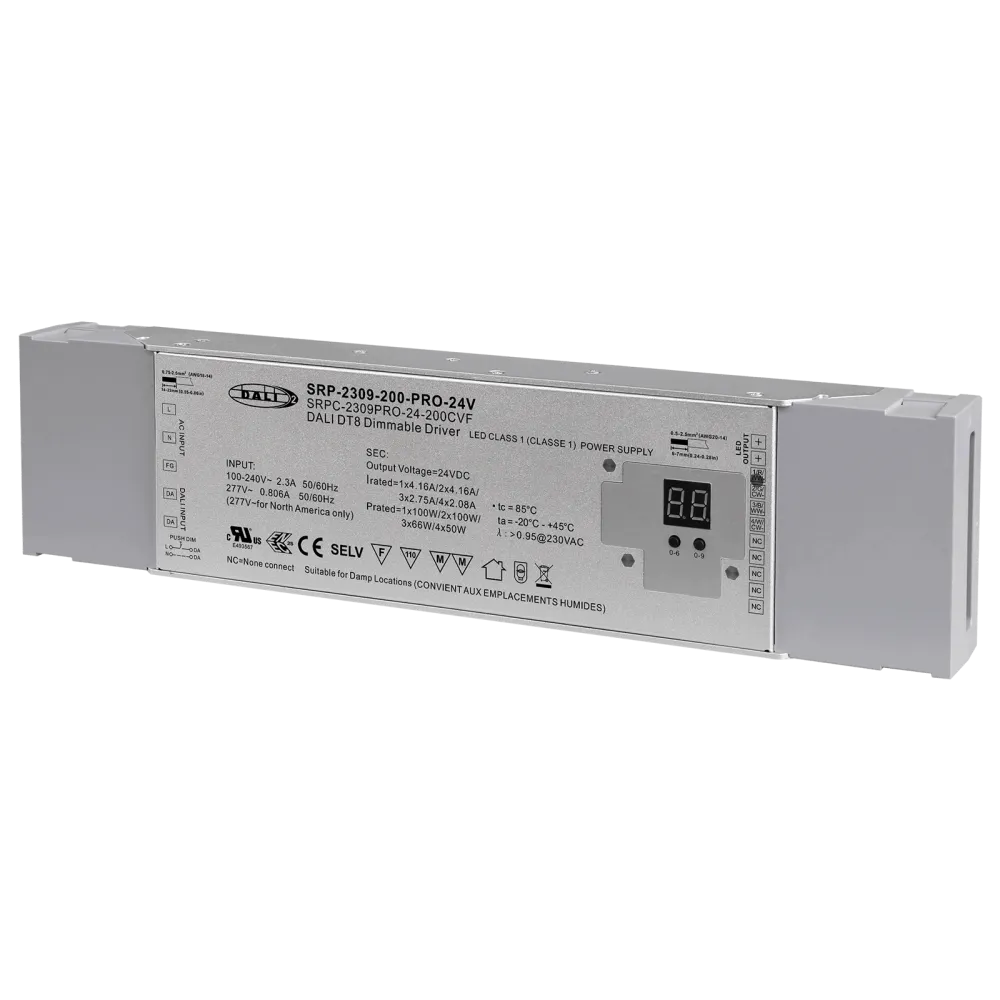

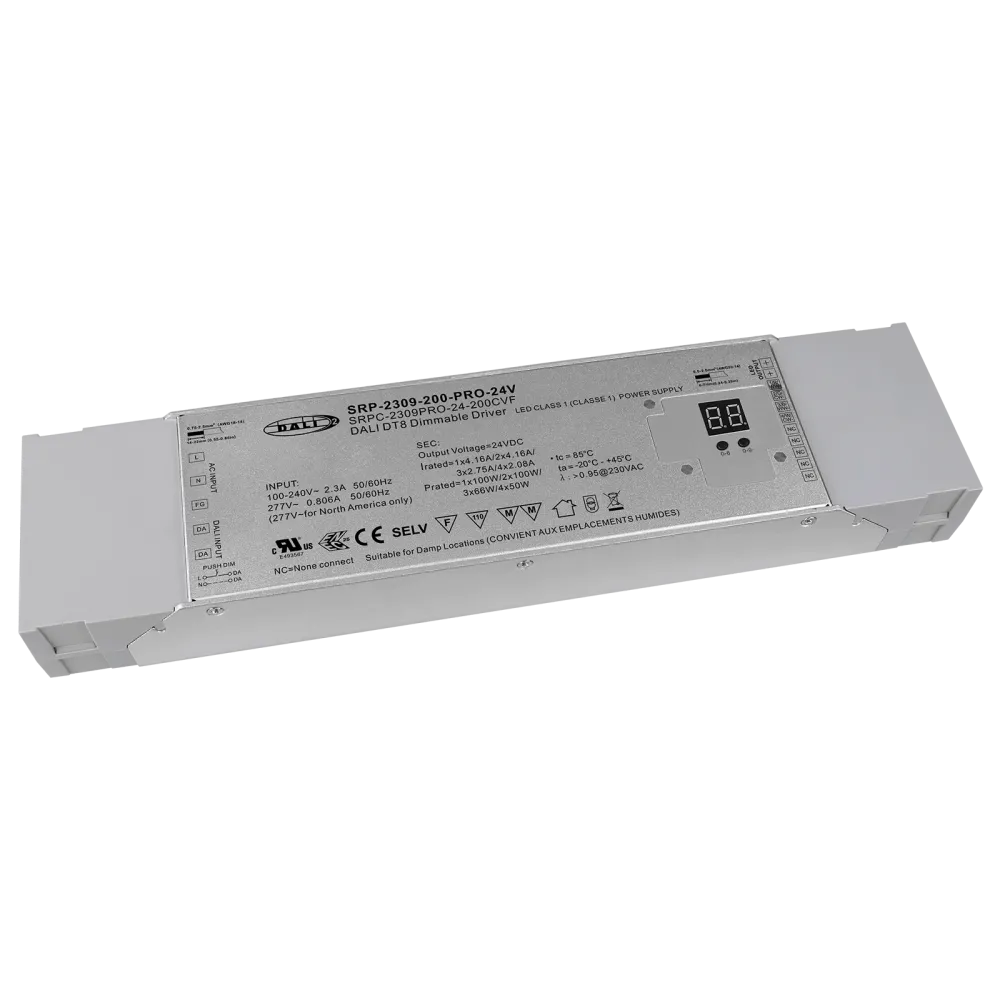

SRP-2309-200-PRO-24V with PWM output and integrated DALI2 DT8 interface is ideal for operating constant voltage LED applications such as LED strips. One unit for all lighting situations, TW, Single Color, RGB and RGBW.
Control
- DALI2 DT8, AC push
Application
- Tunable White, RGBW, RGB, Single Color
Dimming range
The load-independent dimming range is 0.1% to 100% of the connected load.
Dimming method: PWM, 1.5kHz
Technical data
- Dimmable 4 in 1 DALI2 DT8 power supply unit (primary N, Tc (Tunable White), XY coordinate, RGBW)
- 200-240VAC input voltage range
- 4-channel DC24V constant voltage outputs
- Built-in DALI2 interface, DALI DT8 unit, the unit can be controlled via a Dali address
- Colour control according to DALI DT8 specifications
- Complies with DALI IEC 62386-209-:2011 standard
- Generally compatible with DALI masters that support DT8 commands
- Compatible with AC push dimmers
- IP20 protection class, suitable for indoor lighting projects
- 5 years warranty
Product specifications
| Output voltage (VDC) | 24 V |
| Product series | SRP |
| Input voltage range (VAC) | 100-277 V |

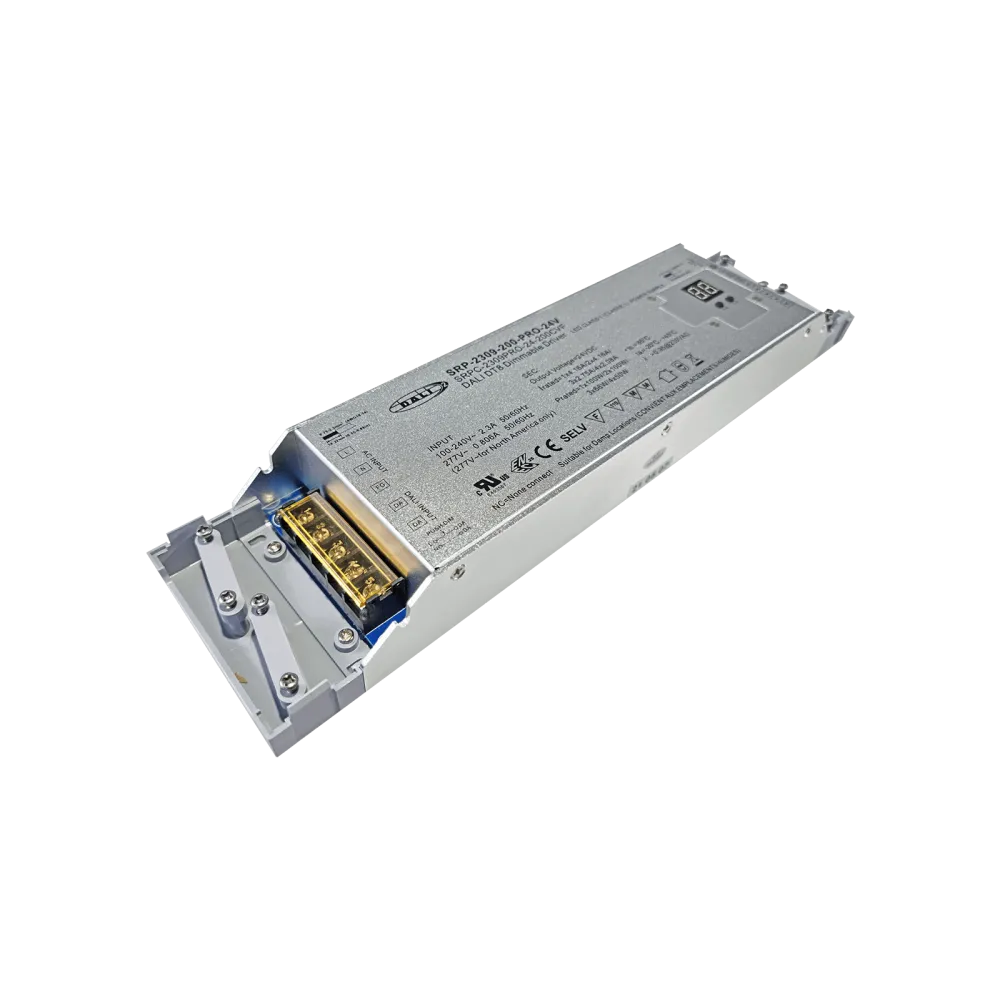

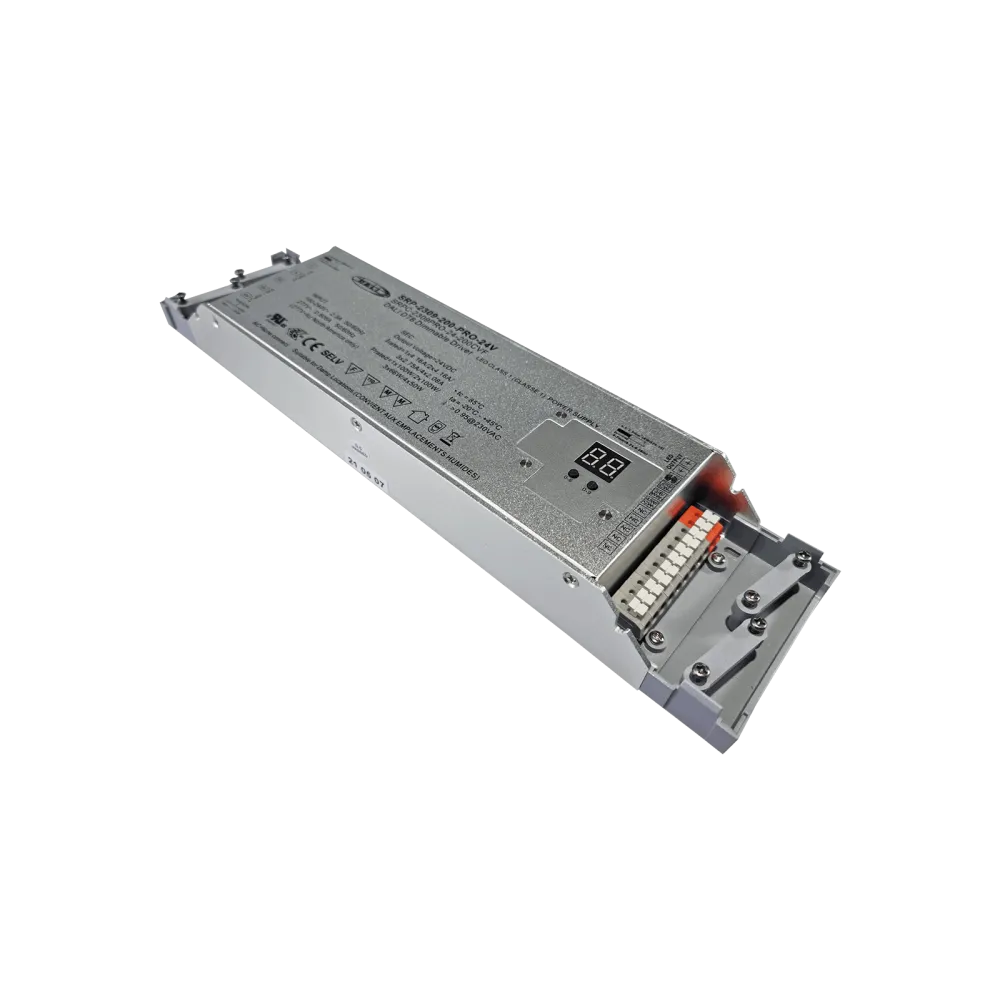

| Connection | Push-in terminal, Screw terminal |
| IP protection | IP20 |
| Height | 39 mm |
| Width | 79 mm |
| Length | 330 mm |
| Application | RGB, RGBW, Single color, Tunable white |
| Dimming method | PWM |
| Control | DALI2, DALI DT8, AC Push Dimming |
| Channels | 4 |
| Output current | 8.4 A |
| Power | 200 W |
| Manufacturer warranty | 5 years |
