About the product

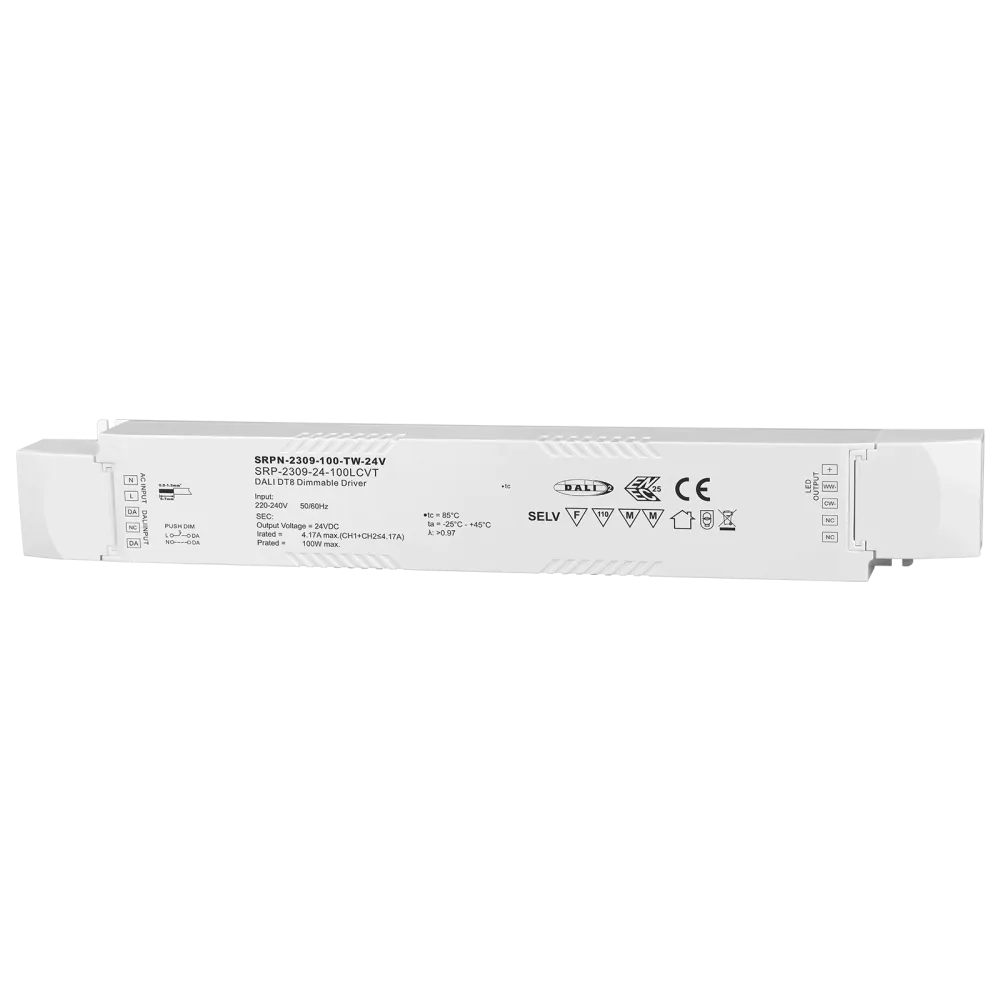

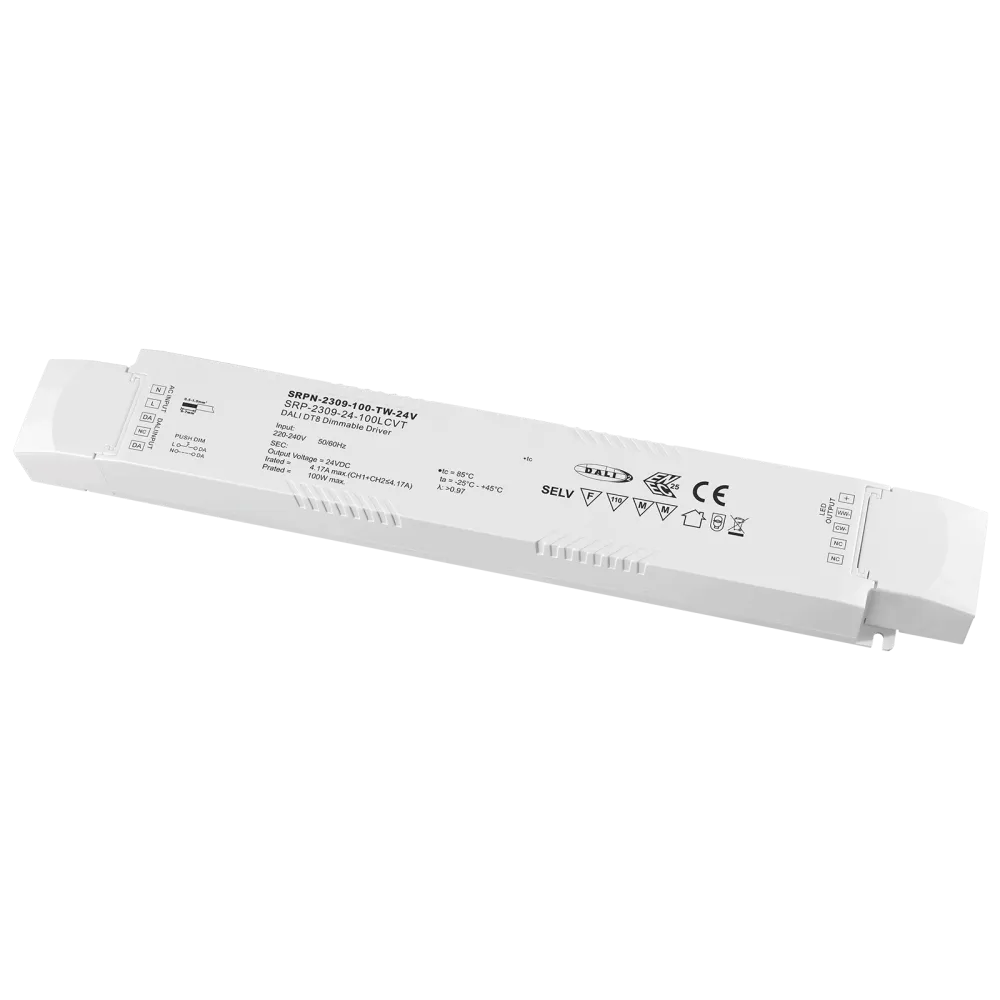

SRPN-2309-100-TW-24V with PWM output and integrated DALI2 DT8 interface is ideal for operating Tunable White constant voltage LED applications such as LED strips.
Control
DALI2 DT8
Application
Tunable White
Dimming range
The load-independent dimming range is 0.1% to 100% of the connected load.
Dimming method: PWM, 1.5kHz
Technical data
- DALI2 DT8 dimmable 2-channel TW power supply unit
- DALI2 certified
- 100-277VAC wide input voltage range
- 2-channel 24VDC constant voltage outputs
- Max. output current: 4.17A
- Built-in DALI2 interface, DALI DT8 unit, the unit can be controlled via a Dali address
- Colour control according to DALI DT8 specifications
- Complies with DALI IEC 62386-209-:2011 standard
- Generally compatible with DALI masters supporting DT8 commands
- IP20 protection class
- Protection class II Driver without earth connection
- Plastic housing
- Operating temperature range from -20°C to +45°C
- Dimension 306.6 x 43 x 30mm
- 5 years warranty
Product specifications
| Output voltage (VDC) | 24 V |
| Product series | SRPN-2309 |
| Input voltage range (VAC) | 220-240 V |
| Connection | Screw terminal |
| IP protection | IP20 |
| Height | 30 mm |
| Width | 43 mm |
| Length | 306.6 mm |
| Application | Tunable white |
| Dimming method | PWM |
| Control | DALI2, DALI, DALI DT8, AC Push Dimming |
| Channels | 2 |
| Output current | 4.17 A |
| Power | 100 W |
| Manufacturer warranty | 5 years |
