About the product

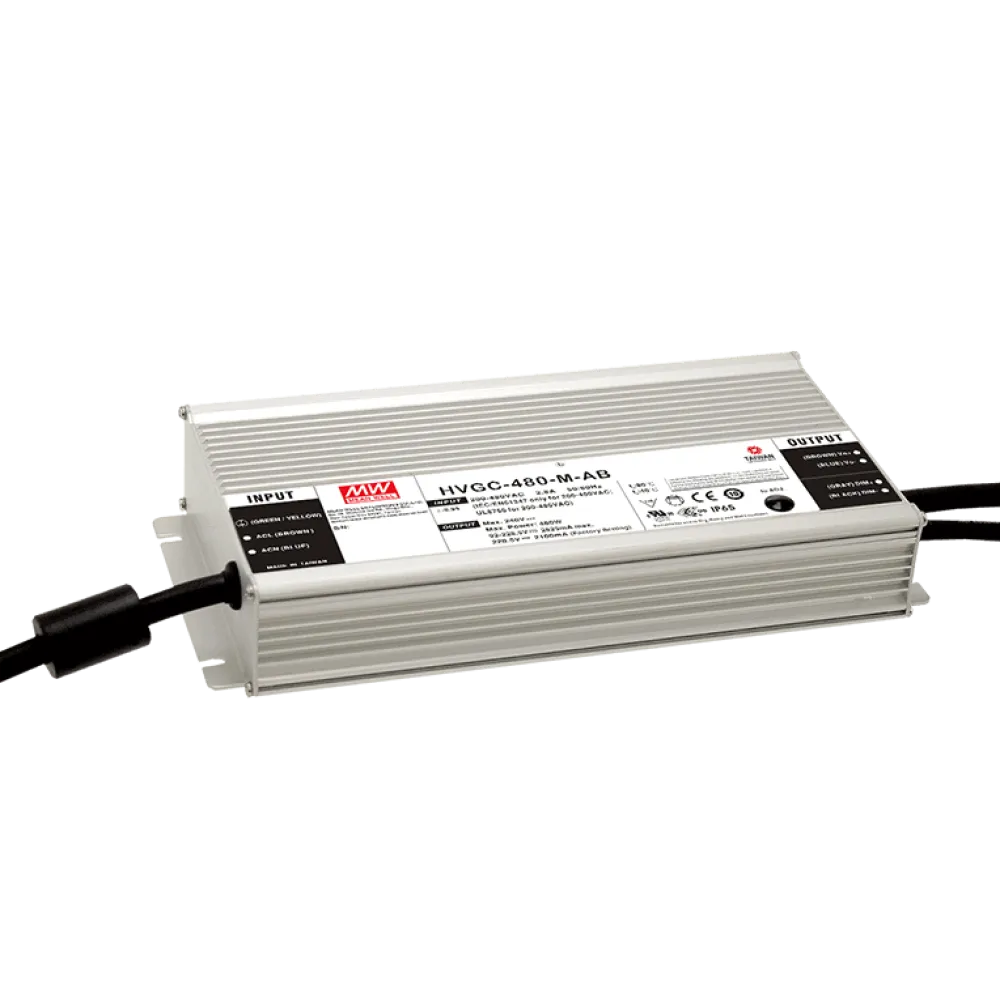

HVGC-480 series is a 480W LED AC/DC Driver featuring the constant power mode output. With its wide range input from 180 to 528Vac it is suitable for 3-phase input without neutral line to replace HID lamps.
Technical data
- Universal AC Input 180 to 528Vac
- Constant Power Design
- Output Voltage region HVGC-480-M: 92 – 228.5Vdc
- Full Power current range HVGC-480-M: 2100 – 2625mA
- Current adjustable range HVGC-480-M: 1050 – 2625mA
- Dimension 262 x 125 x 43.8mm (L x W x H)
- 5 years warranty
- Manufacturer: MEAN WELL
Product specifications
| Power | 480 W |
| Output voltage range (VDC) | 92-228 V |
| Output current | 2100-2625 mA |
| Input voltage range (VAC) | 200-480 V |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 5 years |
| Connection | Cable |
| IP protection | IP67 |
| Height | 43.8 mm |
| Width | 125 mm |
| Length | 262 mm |
| Application | Single color |
| Dimming method | Current regulation |
| Current setting | Potentiometer |
| Channels | 1 |
| Control | Resistor, 0-10V, 1-10V |
| Product series | HVGC |
Data sheets
