About the product

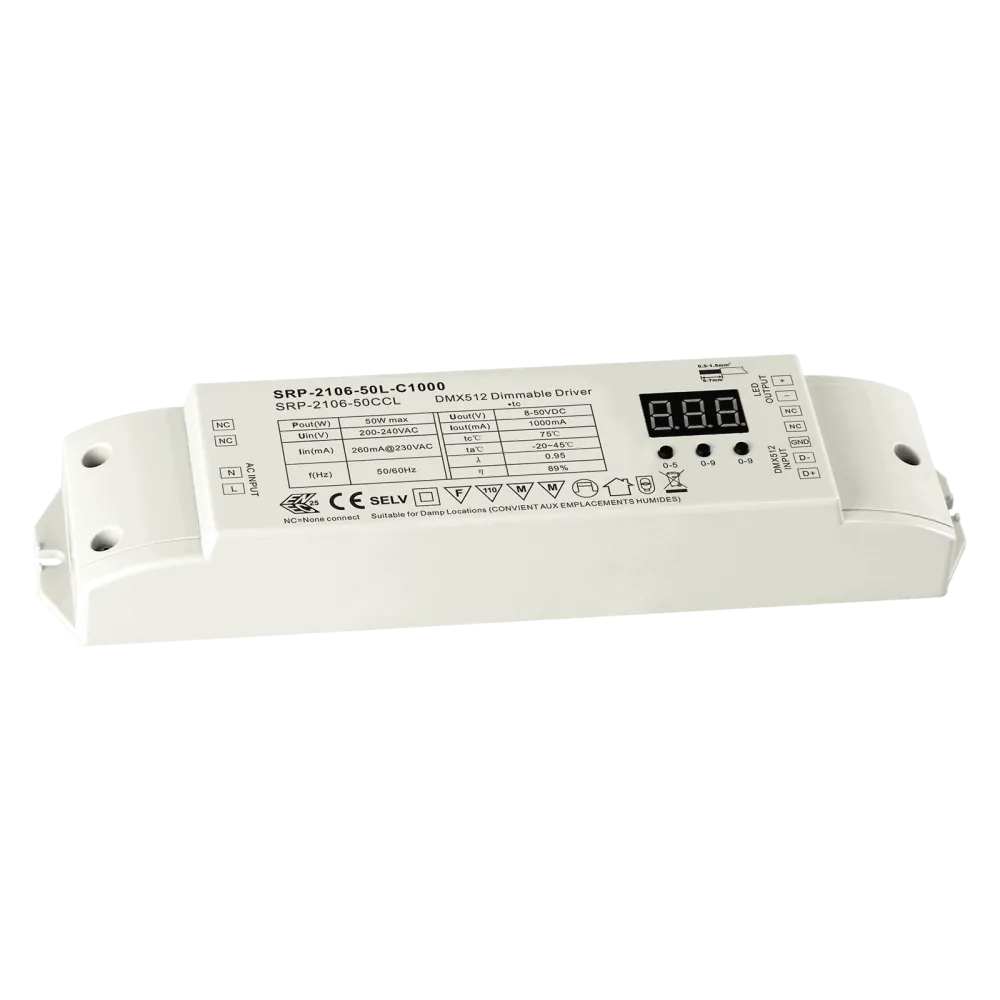

SRP-2106-50L-C1000 is a flexible, dimmable LED converter with constant current output. This power supply can be controlled with DMX512.
Control
- DMX512
Application
- Single colour
Dimming range
The load-independent dimming range is 1% to 100% of the connected load.
Dimming method: Amplitude dimming, Flickerfree
Technical data
- Radio (RF) dimmable 4-channel RGBW power supply unit
- 100-240VAC wide input voltage range
- 4-channel 24VDC constant voltage outputs
- Max. Output power 100W total
- Max. Output current: 4.16A
- Class 1 power supply, fully insulated plastic housing
- Can be used as single colour, dual colour (TW) RGB or RGBW power supply unit
- Compatible with various remote controls
- Push dim function possible (if connected)
- IP20 protection class, suitable for indoor lighting projects
- Protection class II driver without earth connection
- Plastic housing
- Operating temperature range from -20°C to +45°C
- Dimension 244 x 64 x 32mm
- 5 years warranty
Product specifications
| Power | 50 W |
| Output voltage range (VDC) | 8-50 V |
| Input voltage range (VAC) | 200-240 V |
| Product series | SRP-2106 |
| Manufacturer warranty | 5 years |
| Connection | Screw terminal |
| IP protection | IP20 |
| Height | 32 mm |
| Width | 50 mm |
| Length | 210 mm |
| Application | Single color |
| Dimming method | Current regulation |
| Channels | 1 |
| Control | DMX |
| Output current | 1000 mA |
