About the product

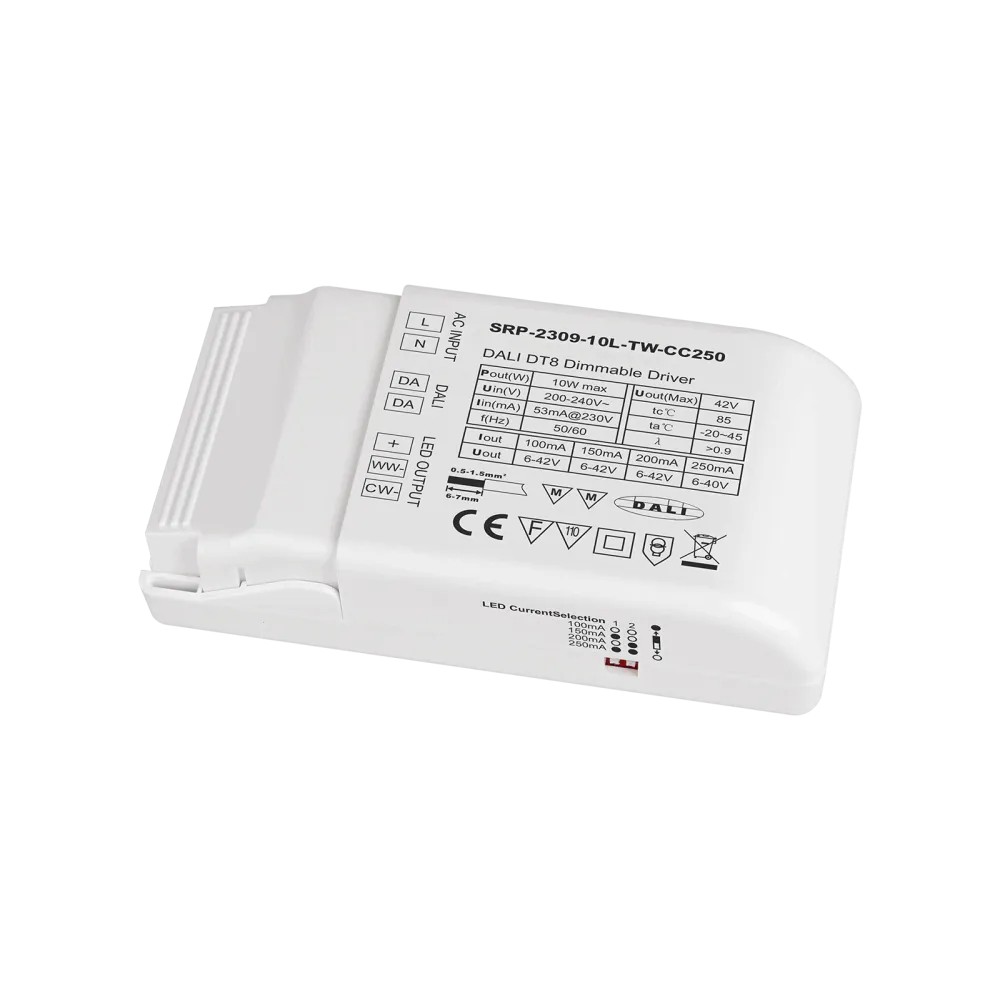

SRP-2309-10L-TW-CC250 is a flexible, dimmable, 2-channel DALI DT8 LED converter with constant current output.
Control
- DALI DT8
Application
- Tunable White
Dimming range
The load-dependent dimming range is 0.1% to 100% of the connected load.
Dimming method: 10%-100% =Analogue current control, no PWM output, flickerfree (1%-10% = PWM dimming 1.5kHz)
Technical data
- Dimmable 2-channel DALI DT8 contant current driver
- 200-240VAC wide input voltage range
- In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.IEC 62386-209:2011
- Built-in DALI-2 interface, DALI DT8 device
- Dimmable LED driver. Max. Output power 10W
- 2 channel 100~250mA constant current output, selectable via DIP switch
- Class 2 power supply, fully insulated plastic housing
- High power factor and efficiency
- For switching and dimming Tunable White LED lighting fixtures
- Hybrid(PWM+CCR) dimming, smooth and deep dimming down to 0.1%
- Compatible with universal DALI masters that support DT8 commands
- Error reporting function
- Operating temperature range from -20°C to +45°C
- Dimensions 103.7 x 52.6 x 30mm
- 5 year warranty
Product specifications
| Current (mA) | 100-250 mA |
| Manufacturer | Sunricher |
| Manufacturer warranty | 5 years |
| Connection | Screw terminal |
| IP protection | IP20 |
| Height | 30 mm |
| Width | 52.6 mm |
| Length | 103.7 mm |
| Application | Tunable white |
| Dimming method | Hybrid |
| Current setting | DIP switch |
| Channels | 2 |
| Control | DALI DT8 |
| Power | 10 W |
| Forward voltage (VDC) | 6-42 V |
| Input voltage range (VAC) | 200-240 V |
