About the product

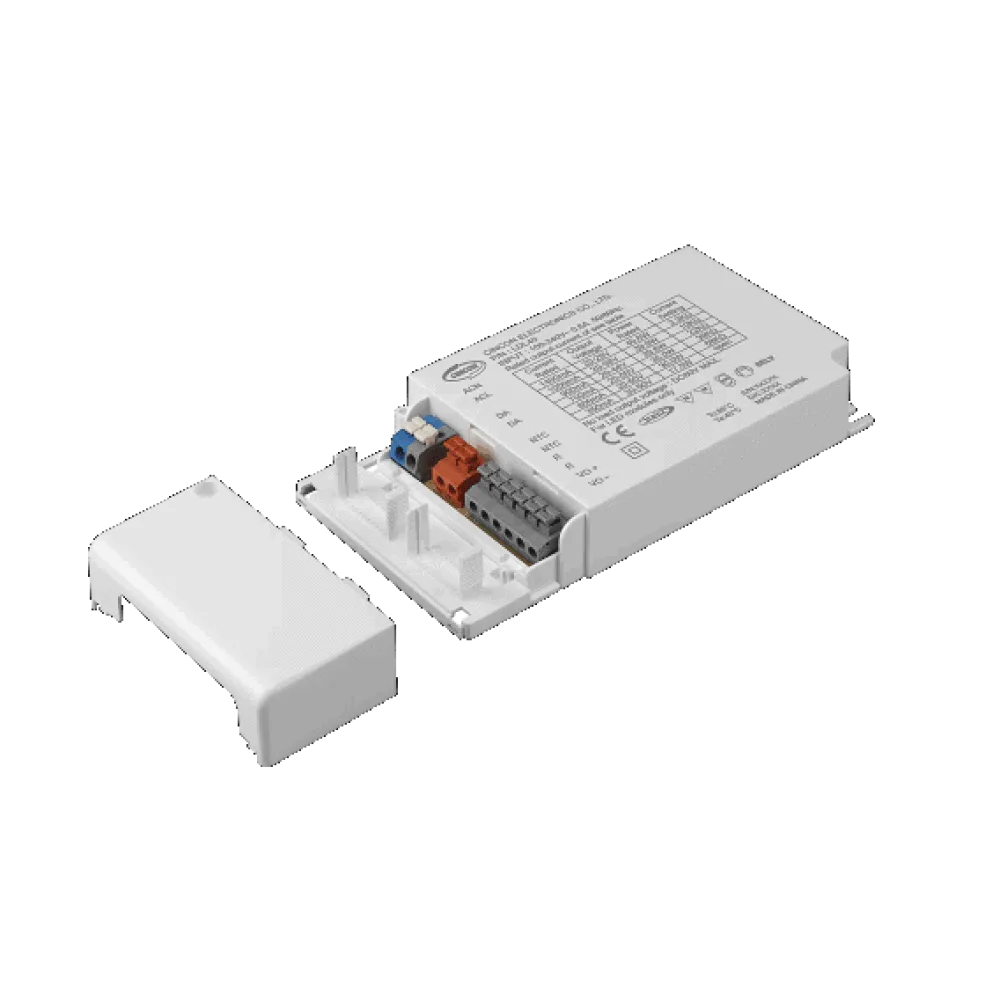

40W LED Driver CC 350/600/700/900/1050/1400mA
Technical data
- AC input 90 to 264Vac (127 to 373Vdc)
- Output current selectable by resistor (resistor set included)
- Built-in DALI2 interface (dimming range 1-100%)
- Dimming by current reduction
- Class II power unit, no FG
- No load power consumption 0.5W
- Easy installation by spring terminal blocks
- Dimension 150 x 80 x 23.2mm (L x W x H)
- 3 years warranty
Product specifications
| Power | 40 W |
| Product series | LDL |
| Output voltage range (VDC) | 15-50 V |
| Input voltage range (VAC) | 100-240 V |
| Manufacturer | Cincon |
| Manufacturer warranty | 3 years |
| Connection | Push-in terminal |
| IP protection | IP20 |
| Height | 23.2 mm |
| Width | 80 mm |
| Length | 150 mm |
| Application | Single color |
| Dimming method | Current regulation |
| Current setting | Resistor |
| Channels | 1 |
| Control | DALI |
| Output current | 350 mA |
