About the product

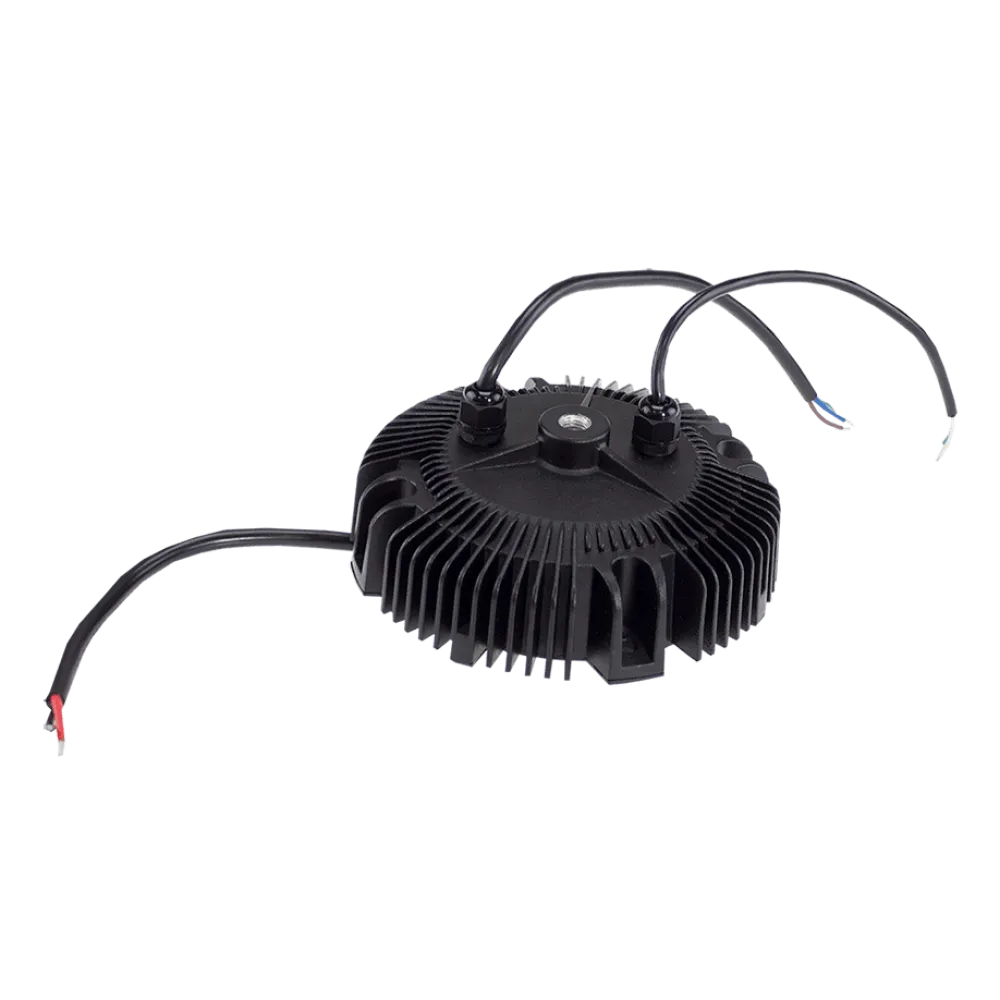

HBGC-300 series is a 300W LED AC/DC driver featuring the constant power mode and high voltage output.
Technical data
- Universal AC input 90 to 305Vac
- CC/CV circuit for constant voltage and constant current applications
- Patented housing design for High Bay lighting
- IP 67 for indoor and outdoor installations
- High reliable driver with long lifetime
- Suitable for dry / damp / wet locations
- Type HL LED driver for use in Class I, division 2 hazardous location luminaires
- Current adjustable through 0-10V, PWM and Resistance
- Constant current level can be adjusted through internal potentiometer
- Dimension Ø191.5 x 69mm (D x H)
- 5 Years Warranty
Product specifications
| Power | 300 W |
| Output voltage range (VDC) | 29-58 V |
| Output current | 2600-8670 mA |
| Input voltage range (VAC) | 100-277 V |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 5 years |
| Connection | Cable |
| IP protection | IP67 |
| Diameter | 191.5 mm |
| Height | 69 mm |
| Application | Single color |
| Dimming method | Current regulation |
| Current setting | Potentiometer |
| Channels | 1 |
| Control | Resistor, 0-10V, 1-10V |
| Product series | HBG |
