4 channel DALI DT6 / AC PUSH LED dimmer, RGBW, constant voltage 12-36VDC, max. 1152W

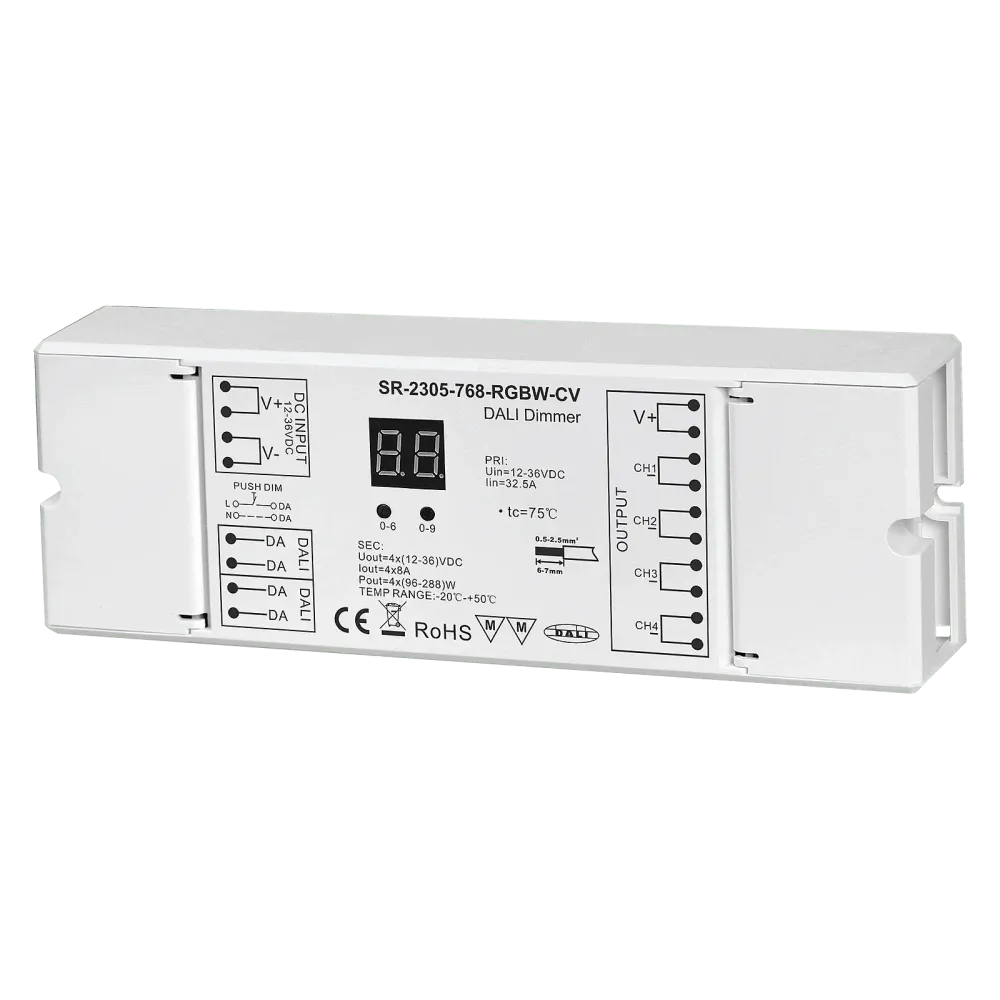

SR-2305-768-RGBW-CV with PWM output and DALI interface is ideal for the operation of RGBW constant voltage LED applications such as LED strips.

Control

• DALI, AC Push

Application

• Tunable White, RGBW, RGB, Single Color

Dimming range

The load-independent dimming range is 0.1% to 100% of the connected load.

Technical data

• DALI / AC-PUSH 4 CHANNEL DIMMER
• Complies with DALI standards IEC 62386-102, IEC 62386-207
• Can be used as RGBW, RGB, TW or single color control unit
• Suitable for standard DALI systems on the market
• The DALI address can be set manually or via software
• Digital DALI address display
• The four outputs can be assigned 1-4 Dali addresses as required
• Max. Output current: 8A per channel
• Max. Output power at 24VDC: 768W
• With built-in repeater function for high performance
• IP20 Degree of protection
• Plastic housing
• Operating temperature range from -20°C to +50°C
• Dimension 170 x 59 x 27mm
• 5 year guarantee
