35W LED Driver Constant Current 300/350/500/600/700mA, 15-52Vdc

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

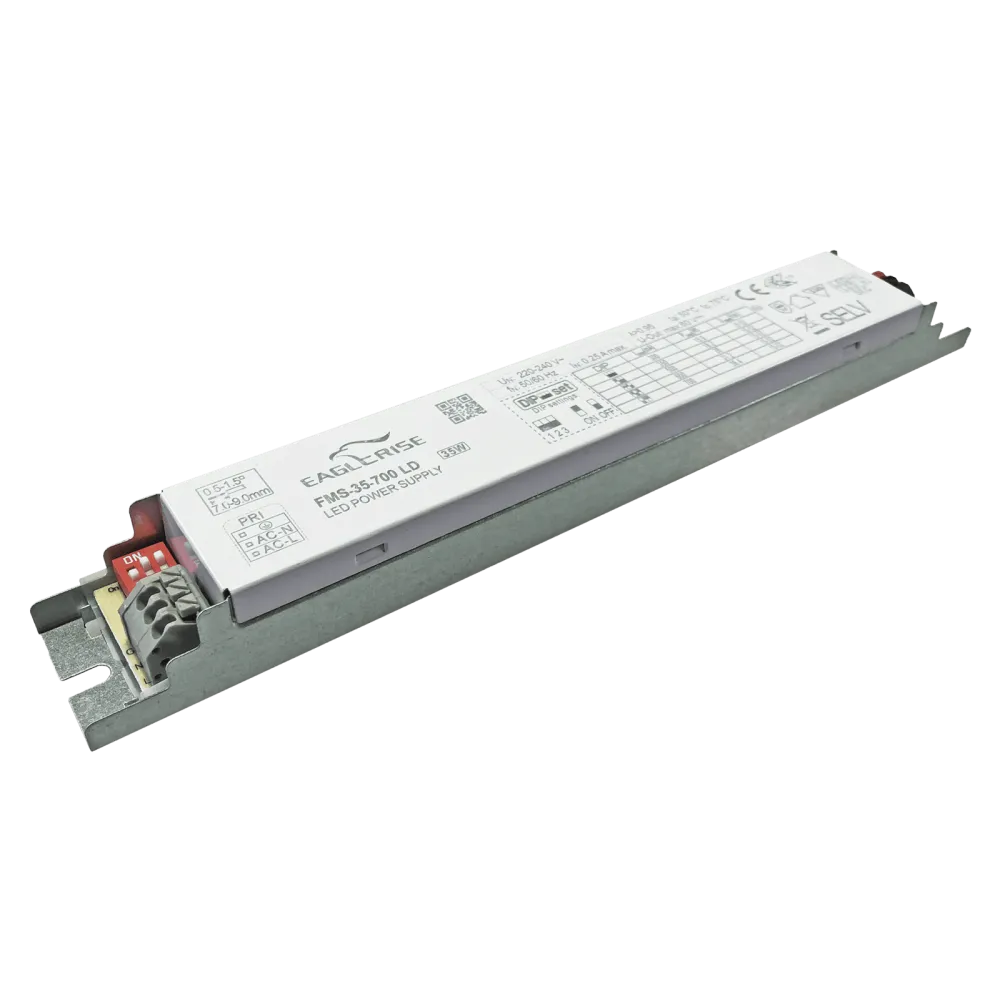

FMS-35-700 LD is an 35W constant current LED driver with 300 to 700mA output and a forward voltage range from 15 to 52Vdc. The output current is selectable by DIP switch.

Technical data

Input voltage 176 bis 264Vac
Output current 300 / 350mA / 500mA / 600mA / 700mA (Factory setting) selectable by DIP switch
Vf range 15 to 52Vdc
Dimensions 220 x 30 x 21mm (L x W x H)
5 years warranty
Manufacturer: Eaglerise

Product specifications

Power	35 W
Output current	300-700 mA
Manufacturer	Eaglerise
Manufacturer warranty	5 years
Connection	Push-in terminal
IP protection	IP20
Height	21 mm
Width	30 mm
Length	220 mm
Application	Single color
Current setting	DIP switch
Channels	1
Control	Non-dimmable
Output voltage range (VDC)	15-52 V
