About the product

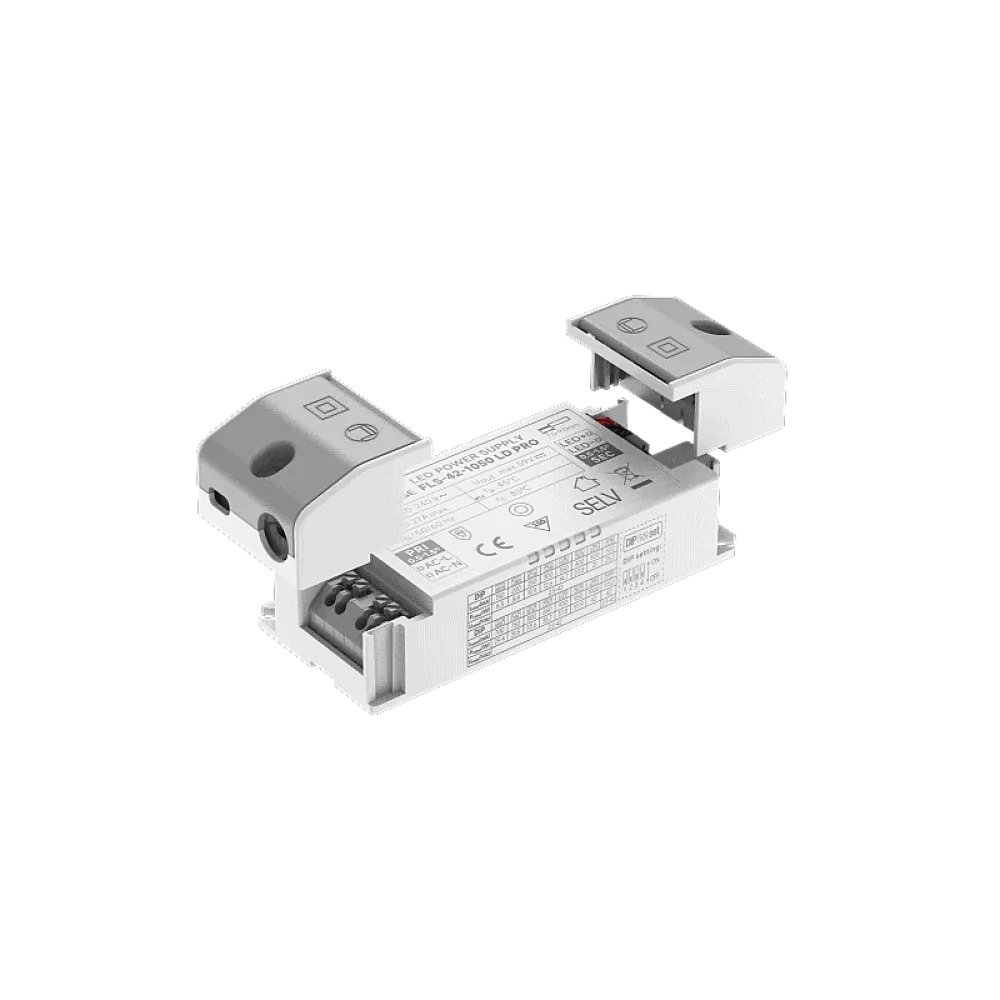

FLS-42-1050 LD PRO is a 42 Watt constant current LED driver with 150 to 700mA output current and a forward voltage range from 2.5 to 42Vdc. The output current is selectable by DIP Switch. With it’s dimensions from 98 x 43 x 22mm without side cover or 132 x 43 x 22mm with side cover (included) it is easy to integrate in LED Panel, spot and down light products.
Technical data
- Forward voltage range 2.5 to 49Vdc (Note the table in the datasheet)
- Adjustable output currents 150mA / 200mA / 250mA / 300mA / 350mA / 400mA / 450mA / 500mA / 550mA / 600mA / 650mA / 700mA
- Dimensions 98 x 43 x 22mm (L x W x H) without side cover / 132 x 43 x 22mm with side cover
Product specifications
| Power | 42 W |
| Output voltage range (VDC) | 2.5-42 V |
| Output current | 150-1050 mA |
| Input voltage range (VAC) | 200-240 V |
| Manufacturer | Eaglerise |
| Manufacturer warranty | 5 years |
| Additional functions | EL mark |
| Connection | Push-in terminal |
| IP protection | IP20 |
| Height | 22 mm |
| Width | 43 mm |
| Length | 98 mm |
| Application | Single color |
| Current setting | DIP switch |
| Channels | 1 |
| Control | Non-dimmable |
| Product series | FLS |
