About the product

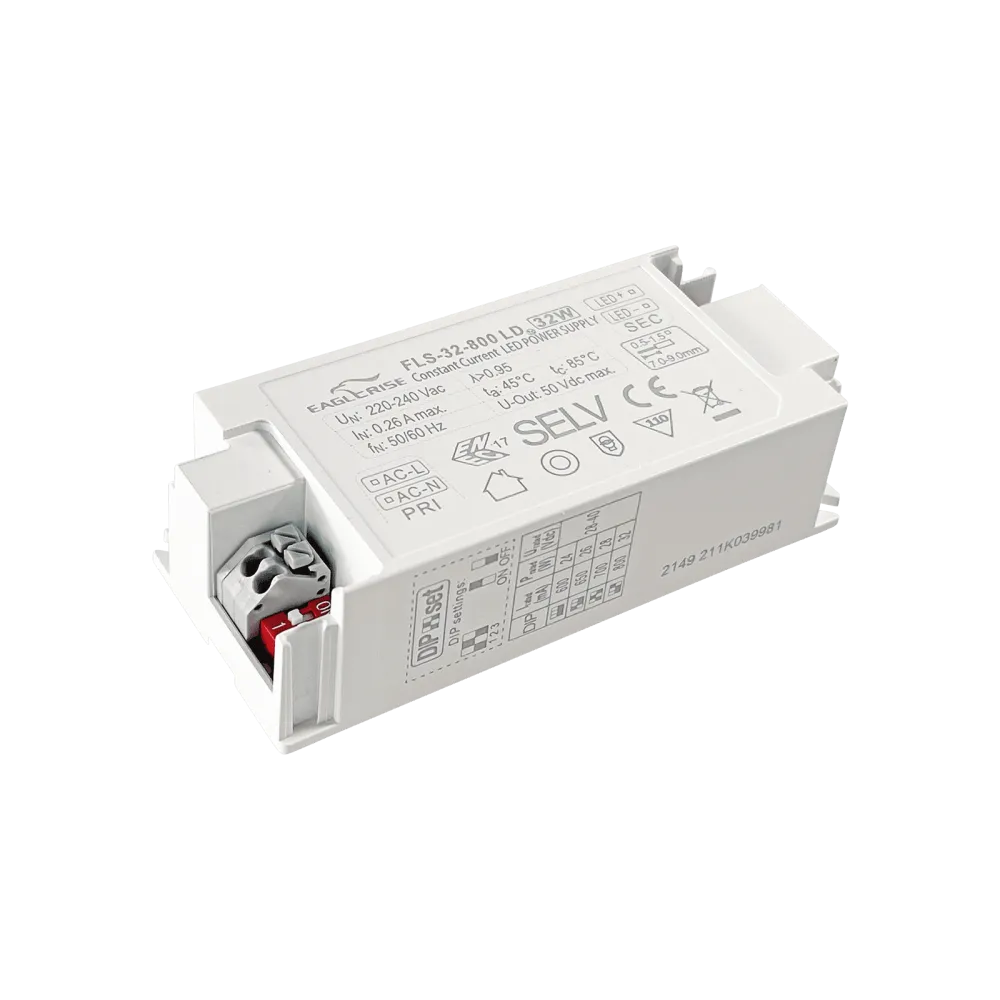

FLS-32-800 LD is a 22W constant current LED driver with 600 to 800mA output for a forward voltage range from 28 to 40Vdc. The output current is selectable by DIP switch. Together with the optional side covers it is also suitable as independent LED driver.
Product specifications
| Power | 32 W |
| Output current | 600-800 mA |
| Manufacturer | Eaglerise |
| Manufacturer warranty | 5 years |
| Connection | Push-in terminal |
| IP protection | IP20 |
| Height | 26 mm |
| Width | 43 mm |
| Length | 97 mm |
| Application | Single color |
| Channels | 1 |
| Control | Non-dimmable |
| Output voltage range (VDC) | 28-40 V |
