About the product

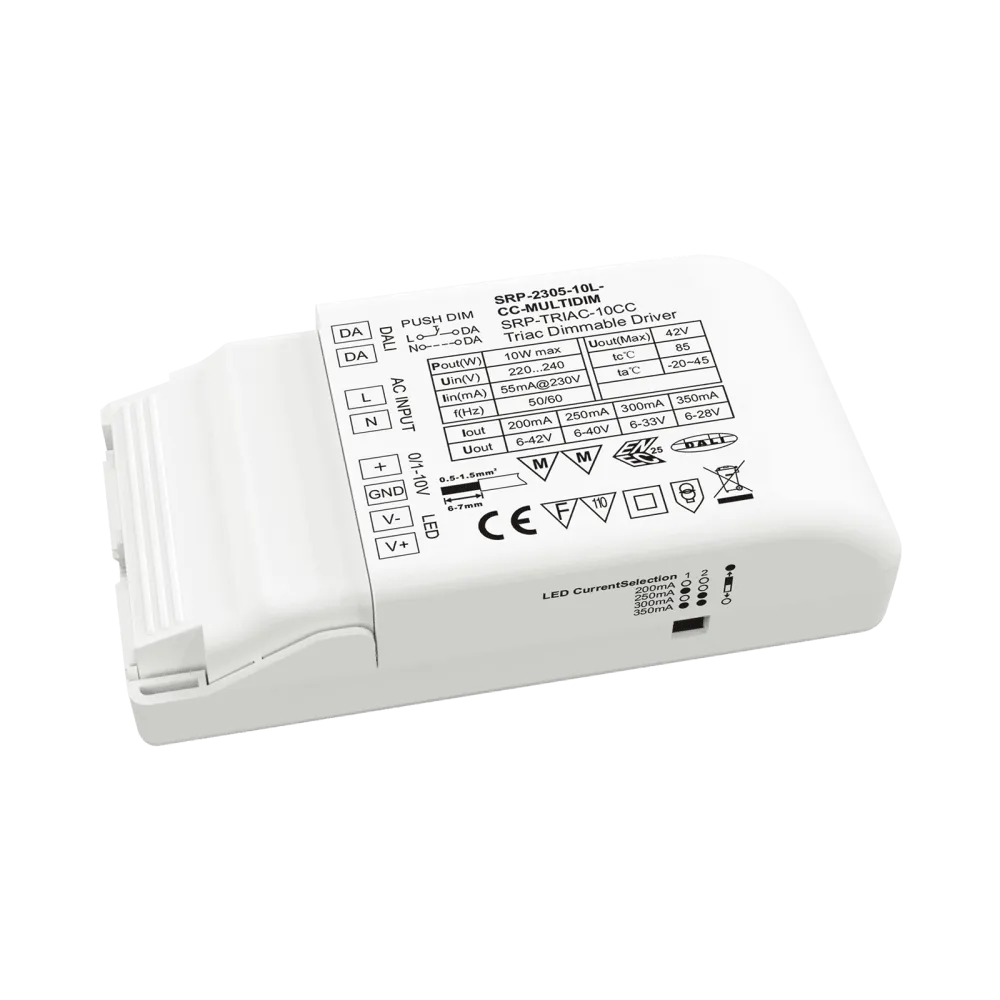

SRP-2305-10L-CC-MULTIDIM is a flexible, dimmable LED converter with constant current output. This 4in1 power supply unit can be controlled with DALI, TRIAC, AC-Push etc.
Control
- DALI, AC-PUSH, 0/1-10V, TRIAC
Application
- Single colour
Dimming range
The load-dependent dimming range is 1% to 100% of the connected load.
Dimming method: 10%-100% = analogue current control, no PWM output, flickerfree (1%-10% = PWM dimming 1.5kHz)
Product specifications
| Power | 10 W |
| Output voltage range (VDC) | 6-42 V |
| Output current | 200-350 mA |
| Input voltage range (VAC) | 200-240 V |
| Manufacturer | Sunricher |
| Manufacturer warranty | 5 years |

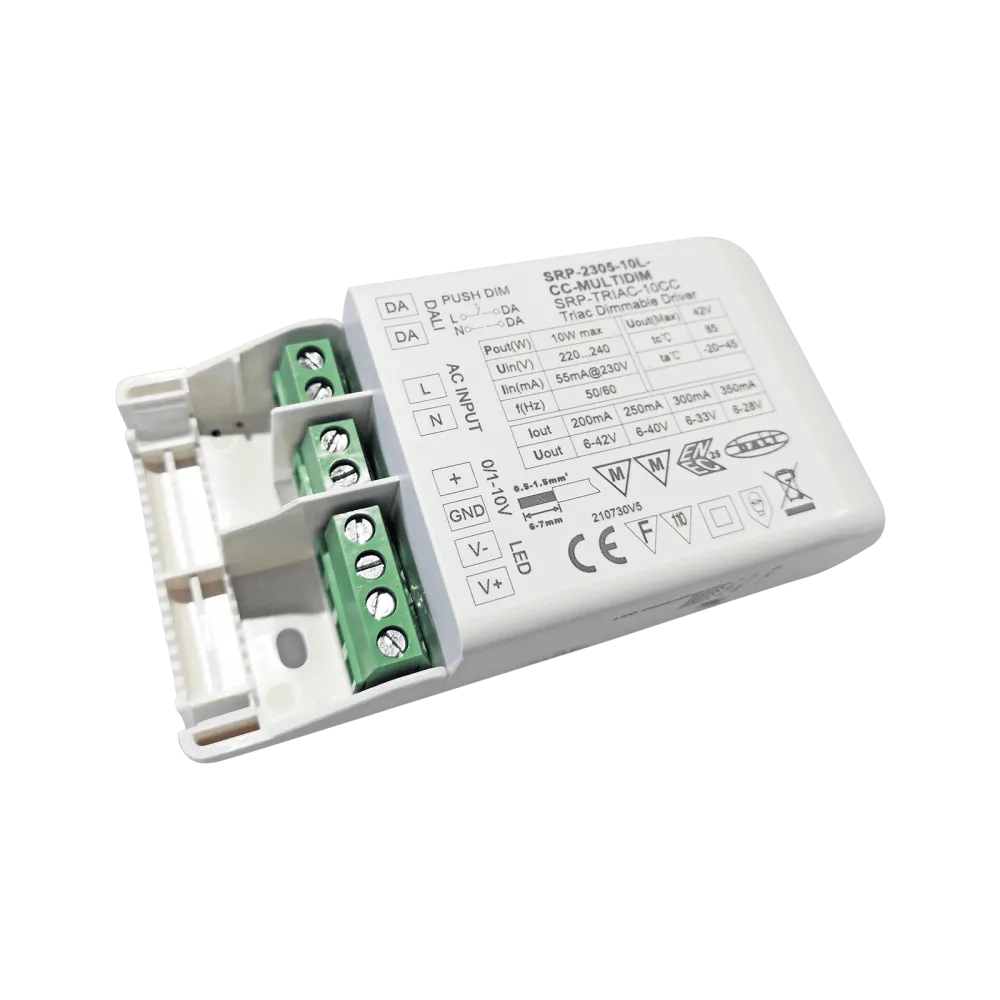

| Connection | Screw terminal |
| IP protection | IP20 |
| Height | 30 mm |
| Width | 52.6 mm |
| Length | 103.7 mm |
| Application | Single color |
| Dimming method | Hybrid |

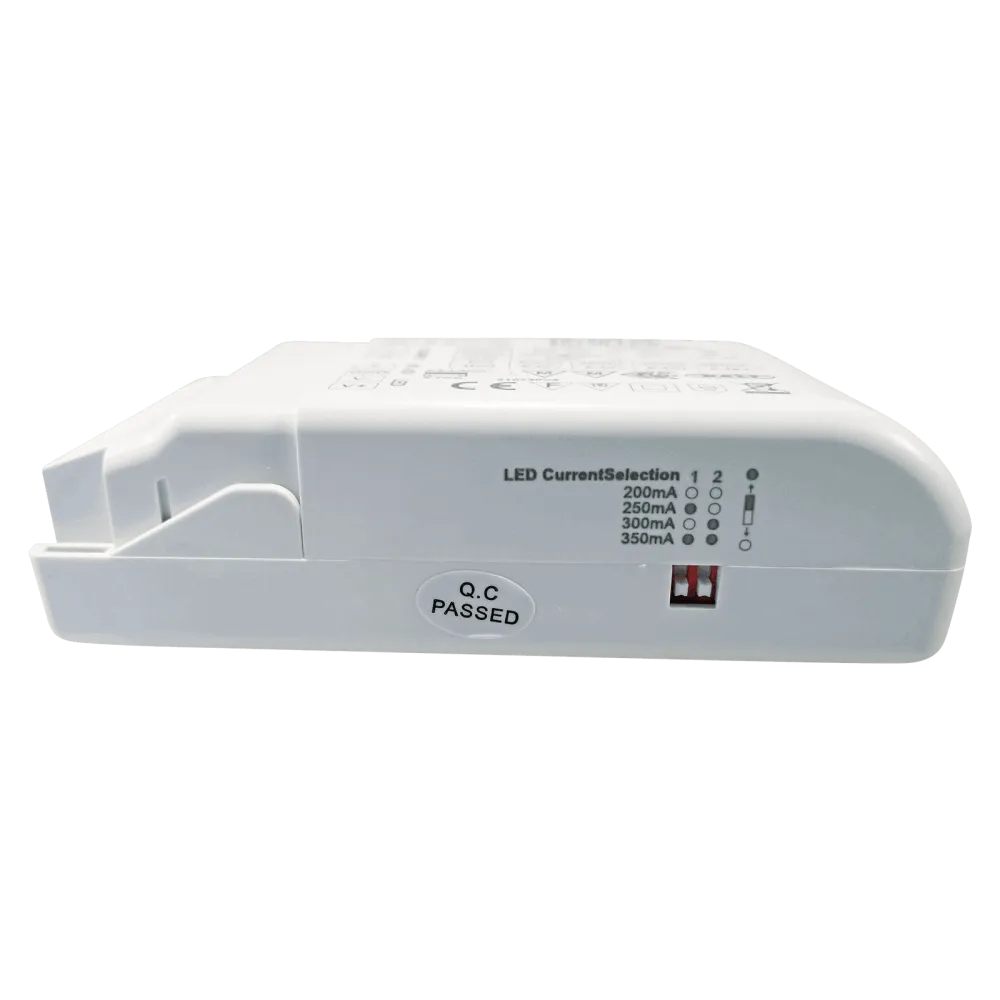

| Current setting | DIP switch |
| Channels | 1 |
| Control | DALI, AC Push Dimming, Phase dimmer, 0-10V, 1-10V |
| Product series | SRP-2305 |
