About the product

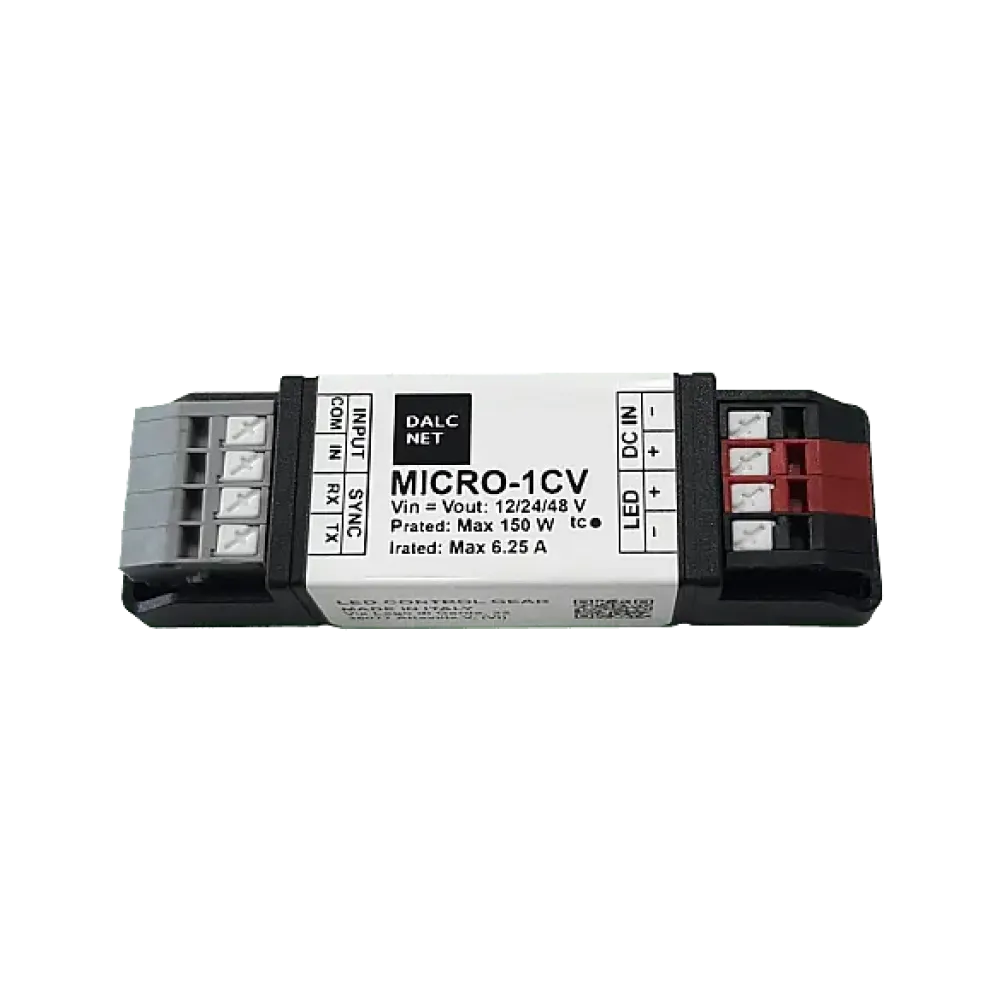

MICRO-1CV is the smallest constant-voltage LED driver of its kind.
. Only 72 x 21 x 15mm for the operation of up to 6.5A LEDs at 12-48Vdc.
. This super-compact LED driver has a push menu for setting fading times, minimum dimming level and PWM frequency (coming soon).
. It accepts multiple analog inputs with analog auto-detection and master-slave configuration.
. Thanks to its dimensions, it can be easily installed in tight spaces, profiles and switch boxes.

Technical data

MICRO LED DIMMER
Ultra compact 72 x 21.5 x 15.5mm
Input voltage: 12-24-48VDC
Output current: max 6.5A
Power max 150W
MULTI INPUT - Analog automatic detection of the local command:
. - Normally open push button
. - Analog input 0-10V
. - Analog input 1-10V
. - Potentiometer 10KOhm
PUSH MENU' - option for setting:
. - Minimum dimming value
. - Fade up
. - Fade out
. - PWM frequency
Memory function
Adjusting the brightness of white light or monochromatic colors
Adjusting the brightness until complete switch-off
Soft start and soft stop
Sync function - master/slave
Optimized output curve
Typical efficiency > 95%
5 year guarantee

Product specifications

Application	Single color
Control	Low voltage push, 0-10V, 1-10V, resistor
Input voltage range (VDC)	12-24 V
Connection	Spring clamp
Dimming type	PWM
Manufacturer's warranty	5 years
IP protection	IP20
Width	21 mm
Output current per channel (A)	45783
Output voltage range (VDC)	12-48 V
Manufacturer	DalcNet
Length	72 mm
Power	150 W
Channels	1
Height	15 mm
Product series	MICRO
