1 channel DALI LED dimmer, many DALI parameters directly programmable with the LightApp

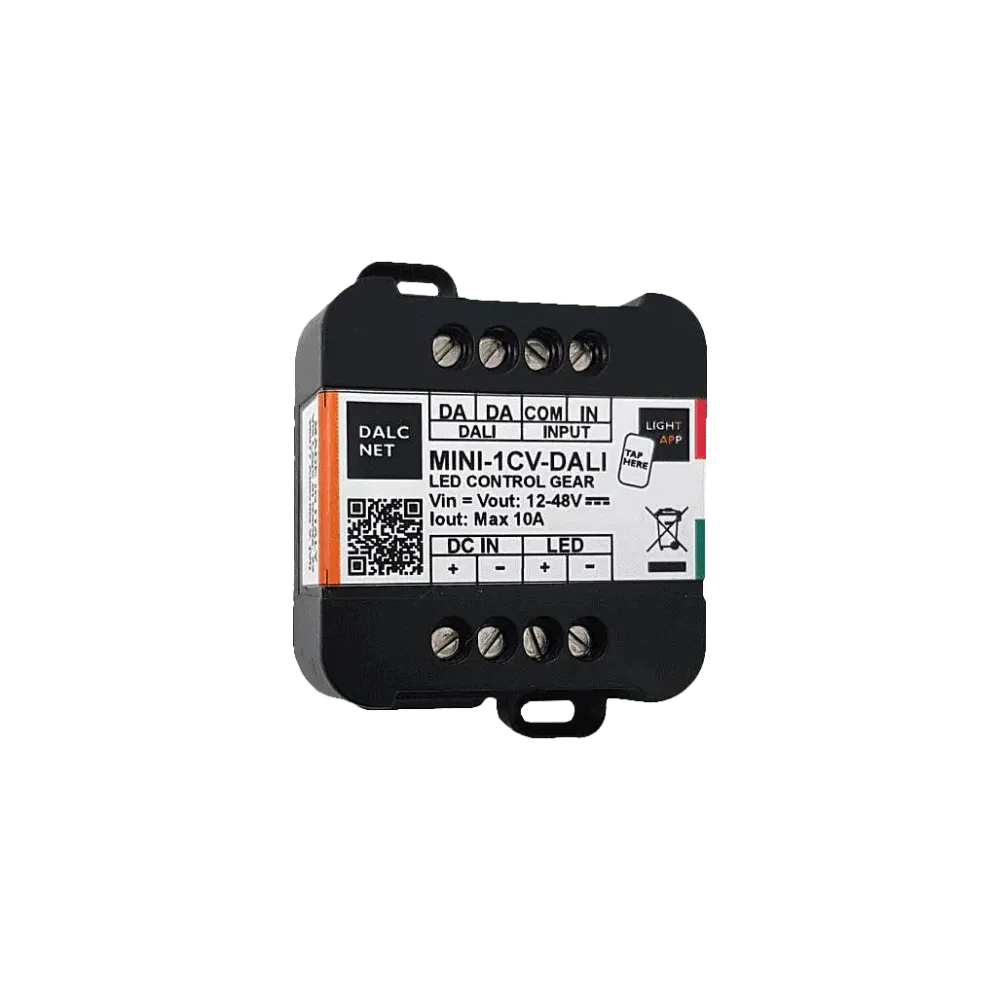

The MINI-1CV-DALI is a single-channel LED dimmer that can be controlled with the DALI protocol or with a normally open push-button, a 0-10V/1-10V signal or a potentiometer. The LED dimmer is suitable for controlling loads such as LED strips and LED modules, white and single-color constant voltage. It is possible to connect a power supply with 12-24-48 Vdc. The maximum value of the output current is 10A. The LED dimmer has the following protective functions: Overvoltage protection, undervoltage protection, reverse polarity protection, input fuse protection, short-circuit protection, short-circuit detection and open-circuit detection.

With the Dalcnet LightApp mobile application, you can configure several parameters of the MINI-1CV-DALI, such as dimming frequency, dimming curve, maximum and minimum brightness level, fade time, etc.

LightApp can be downloaded free of charge from the Apple App Store and Google Play Store.

APPLE ANDROID

Technical data

• LED DIMMER
• Input voltage: 12-24-48 Vdc
• Voltage output for LED strips and LED modules
• WHITE and MONOCHROME lighting control
• Device configuration and DALI commissioning with the mobile application Dalcnet LightApp BUS Command: DALI
• MULTI INPUT - Analog automatic detection of the local command
• Button N°1 normally open
• 0-10V
• 1-10V
• Potentiometer 10KOhm
• Constant voltage outputs for resistive loads PWM modulation
• PWM frequency. Dimming curve, fade and much more can be set via APP
• Soft start and soft stop
• Extended temperature range
• 100% function test
