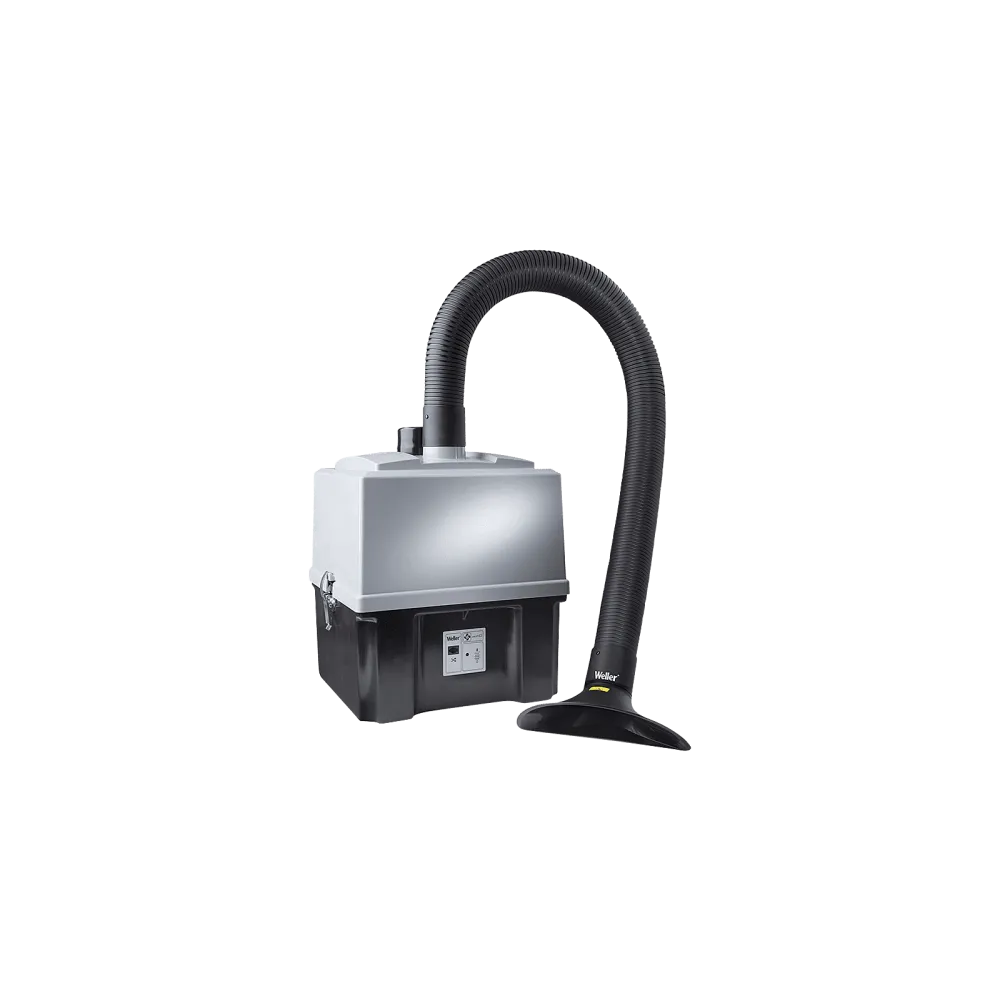

Zero Smog EL Kit 1

• Exceptionally large HEPA H13 filter surface – 2.4m² for longer filter lifetime
• Easy filter change
• Filter monitoring and filter alarm ensure timely filter change
• Granular activated carbon filter for effective gas filtering
• 4-speed setting and power regulation
• Portable fume extraction unit, for placement under or next to the bench-top
• Quick, simple and user-friendly installation with Easy-Click system
• Exceptionally long service life due to maintenance free brushless EC turbine
• Fume extraction system for 1 to 2 workplaces, included funnel nozzle for applications where a larger area needs to be covered and the funnel nozzle can be placed directly on the work bench
• Medium dust pre-filter M5 that can be separately changed, without having to change main filter

Technical data

• Noise level (distance 1 m) dB(A): 53
• Applications: hand soldering
• Workplaces: 1-2
• Max vacuum (Pa): 2500
• Capacity (l/min): 150
• Dimensions W x D x H (mm): 335 x 360 x 445

SCOPE OF DELIVERY

• Zero Smog EL (Filter included)
• 0F15 Flexible extraction arm: Extraction arm, flexible, Ø 60 mm for sloped and funnel nozzles, length 1,5 m
• Fixing clamp: Fixing clamp Ø 63 mm, 1 piece, for fixing Easy-Click 60, 60 mm extraction arms
• ALFA Funnel Nozzle: Easy-Click 60 Funnel nozzle, for flexible and stativ extraction arm, width 230 mm, height 100 mm. To be mounted on an aluminium extraction arm without flexible hose, adapter Z is needed. See extraction arms accessories

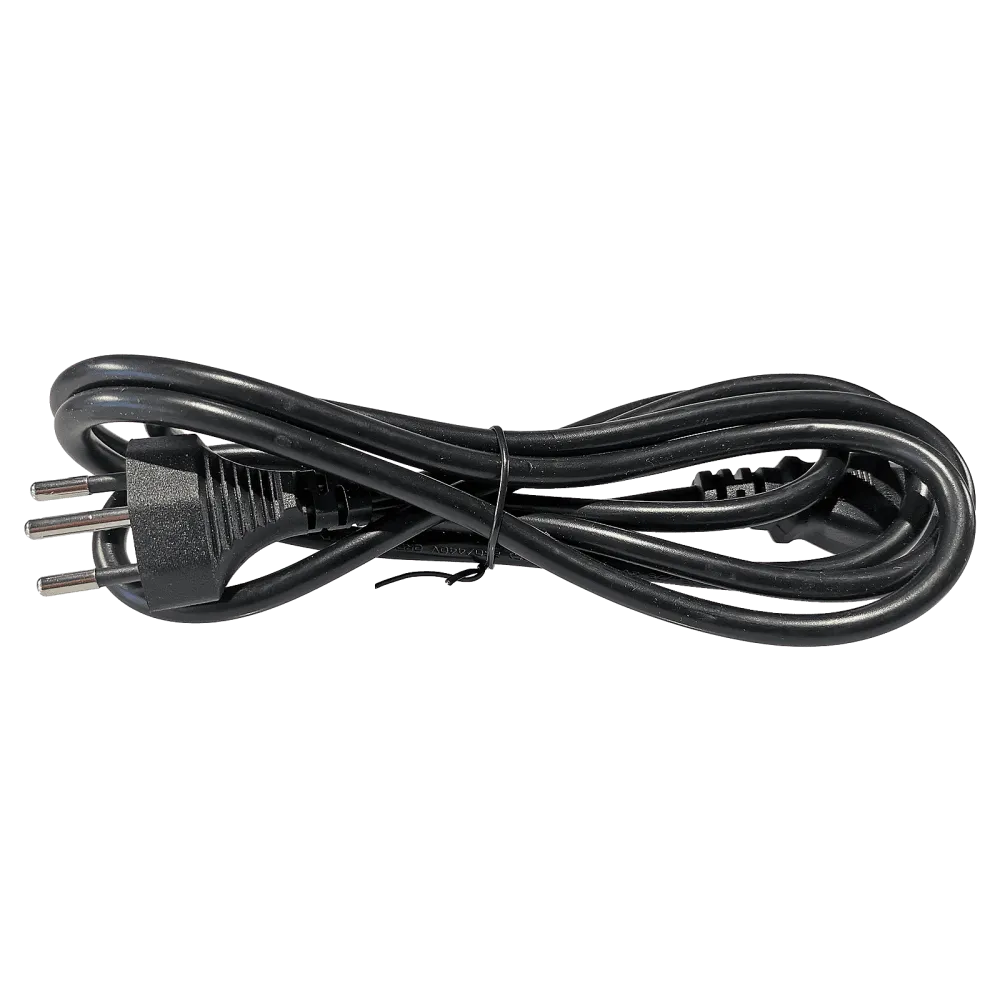

• CH power cable
