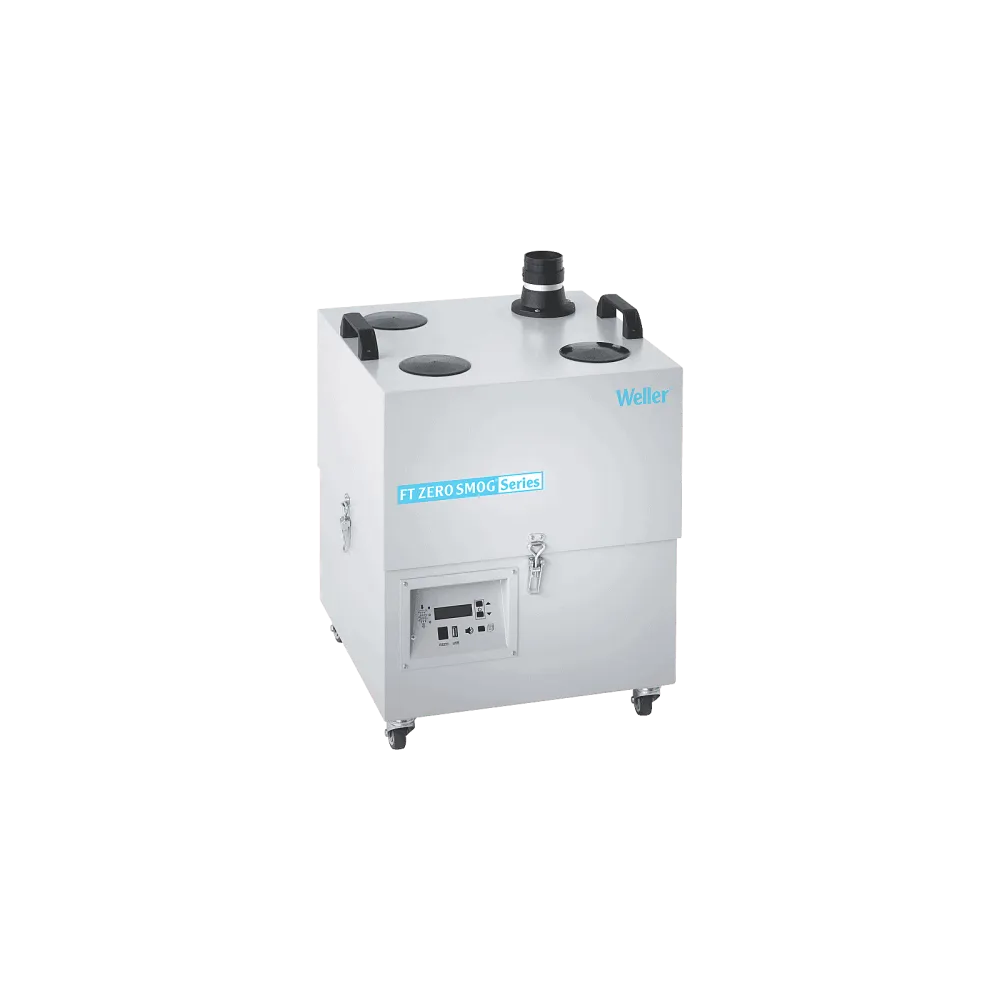

Zero Smog 6V

The fume extraction system Zero Smog 6V is user-friendly with quick and simple installation and filter exchange. It has a low noise emission level and is small and convenient to locate within the work area. The high quality components used in the Zero Smog 6V result in low servicing requirements and long system life. To increase filter lifetime and save on energy, the Zero Smog 6V is fitted with an constant flow control (CFC) – depending on the number of connected workplaces. To extend the capacity an external pre-filter can be fixed directly to the Zero Smog 6V. The powerful maintenance.

• Electronic filter control with optical and acoustical filter alarm
• 3 operating modes: Standard Speed Control: Selected by the user irrespective of the load on the system, Speed Limiting Control: The speed is automatically varied to match the load on the system, Economy Control: The rate of fume absorption is maintained at a constant value
• Low noise emission levels for a quiet workspace
• Efficiency test via USB port
• Max. blower capacity 615 m³/h
• The Constant Flow Control (CFC) guarantees optimal air flow regulation for each working place independent of the connected workplaces
• RS232 port, can be remotely controlled via remote control (optional accessory) or by a PC with RS232 connection
• Equipped with HEPA H13 particle filter and Fine dust pre-filter F7
• Powerful fume extraction unit purifies air at up to 8 workplaces

Technical data

• Noise level (distance 1 m) dB(A): <51
• Applications: hand soldering
• Workplaces: 1-8
• Max vacuum (Pa): 3000
• Capacity (l/min): 615
• Dimensions W x D x H (mm): 460 x 460 x 665

SCOPE OF DELIVERY

• Compact filter for WFE 20D, WFE 4S, Zero Smog 6V, Zero Smog 20T, FC 800
• Fine dust filter F7 for Zero Smog 20T, WFE 20D, WFE 4S, Zero Smog 6V, FC 800
• Easy-Click 60 Hose connector straight

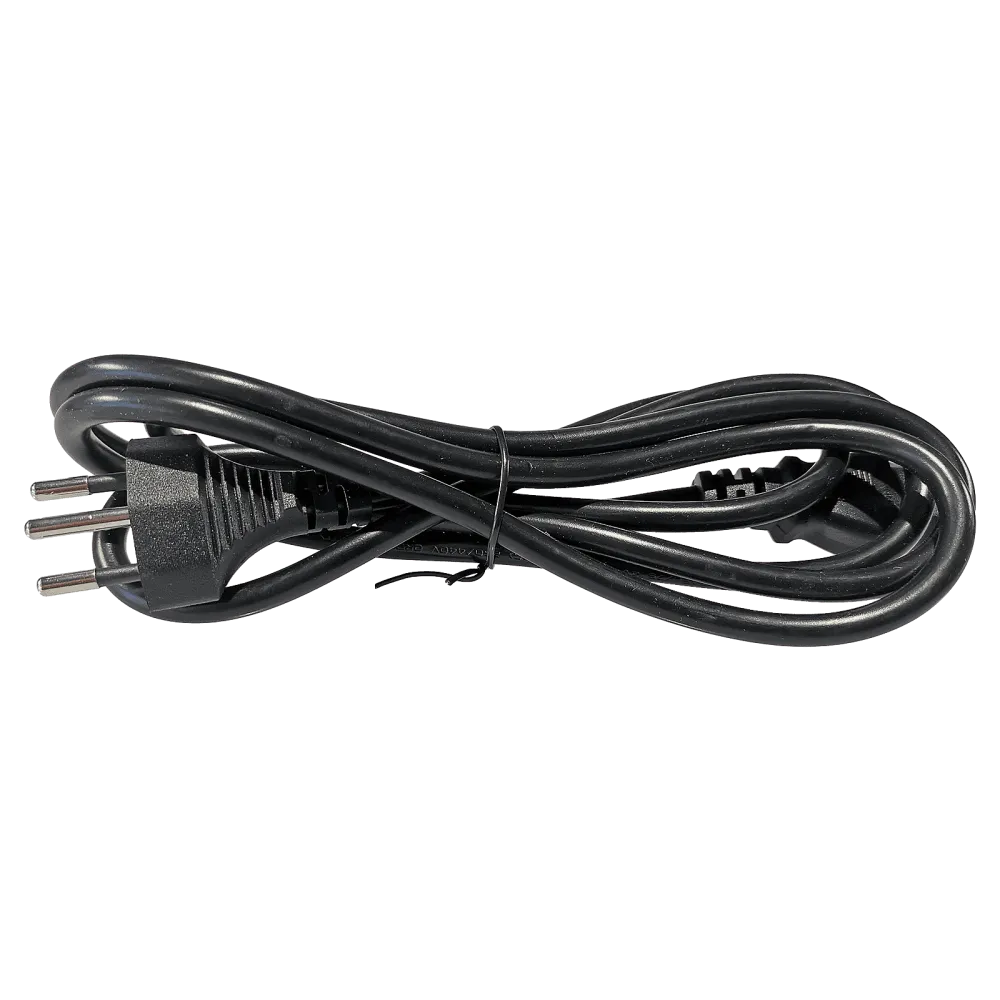

• CH power cable
