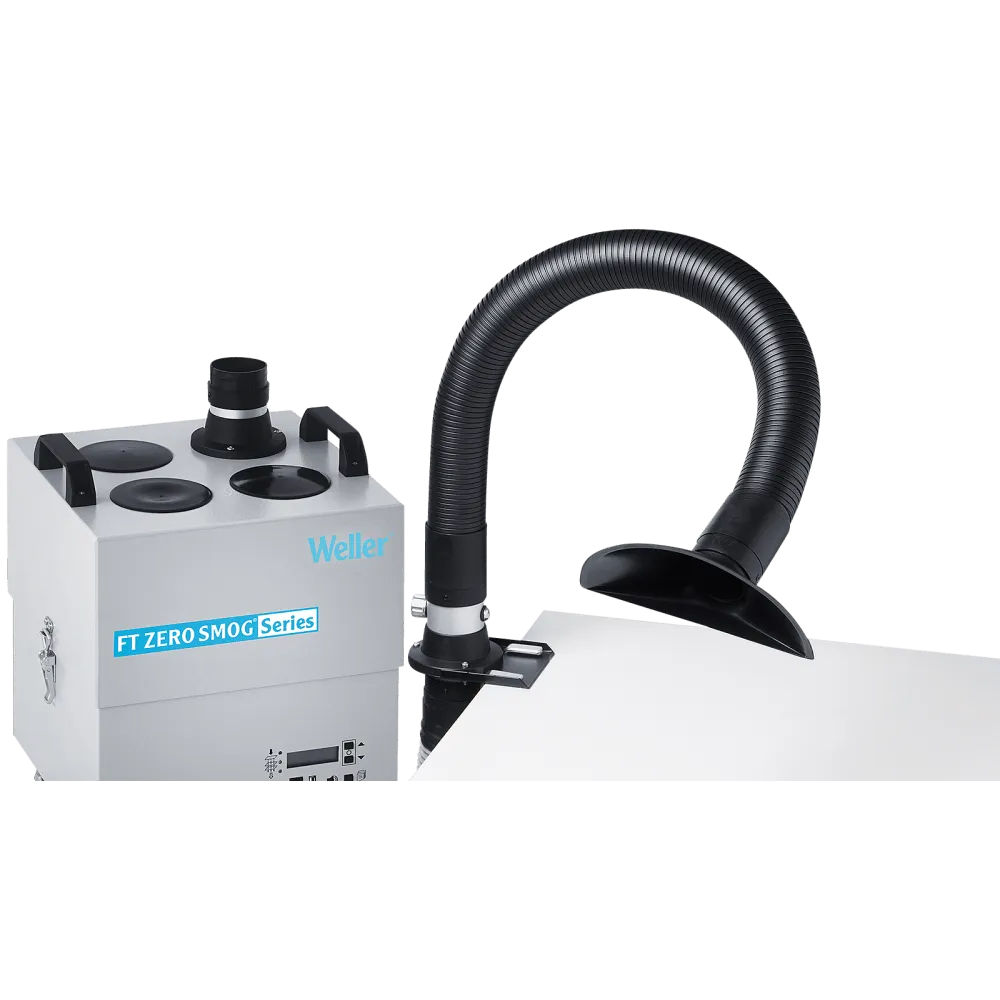

Zero Smog 4V kit 1 funnel

The fume extraction unit Zero Smog 4V is easy to install and operate. It is designed for use as a small central system. A powerful, maintenance-free turbine provides continuous fume extraction at a maximum air extraction rate of 230 m3/h. With setting constant flow control the adjustable turbine speed avoiding unnecessary waste of suction power and saving energy.

• 4 casters to allow easy movement of the unit
• max. blower capacity 230 m³/h
• Energy-efficient fume extraction unit purifies air at up to 4 workplaces
• Low noise emission levels for quiet workspace
• Efficiency test via USB port
• Equipped with HEPA H13 particle filter and Fine dust pre-filter F7
• Constant Flow Control (CFC) guarantees automatic air flow regulation for each working place independent of the connected workplaces
• RS232 port, can be remotely controlled via remote control (optional accessory) or by a PC with RS232 connection
• For connection to a WX / WT station a T0058768767 WT Hub is needed
• Electronic filter control with optical and acoustical filter alarm

Technical data

• Noise level (distance 1 m) dB(A): 48
• Applications: hand soldering, soldering machines, robots, solder baths, adhesive fumes, microscope workplaces,…
• Workplaces: 1-4
• Max vacuum (Pa): 2`700
• Capacity (m³/h): 230
• Dimensions W x D x H (mm): 345 x 325 x 505

SCOPE OF DELIVERY

• Zero Smog 4V (Filter included)
• Kit 1 WF Funnel Nozzle
• Easy-Click 60 Hose connector straight

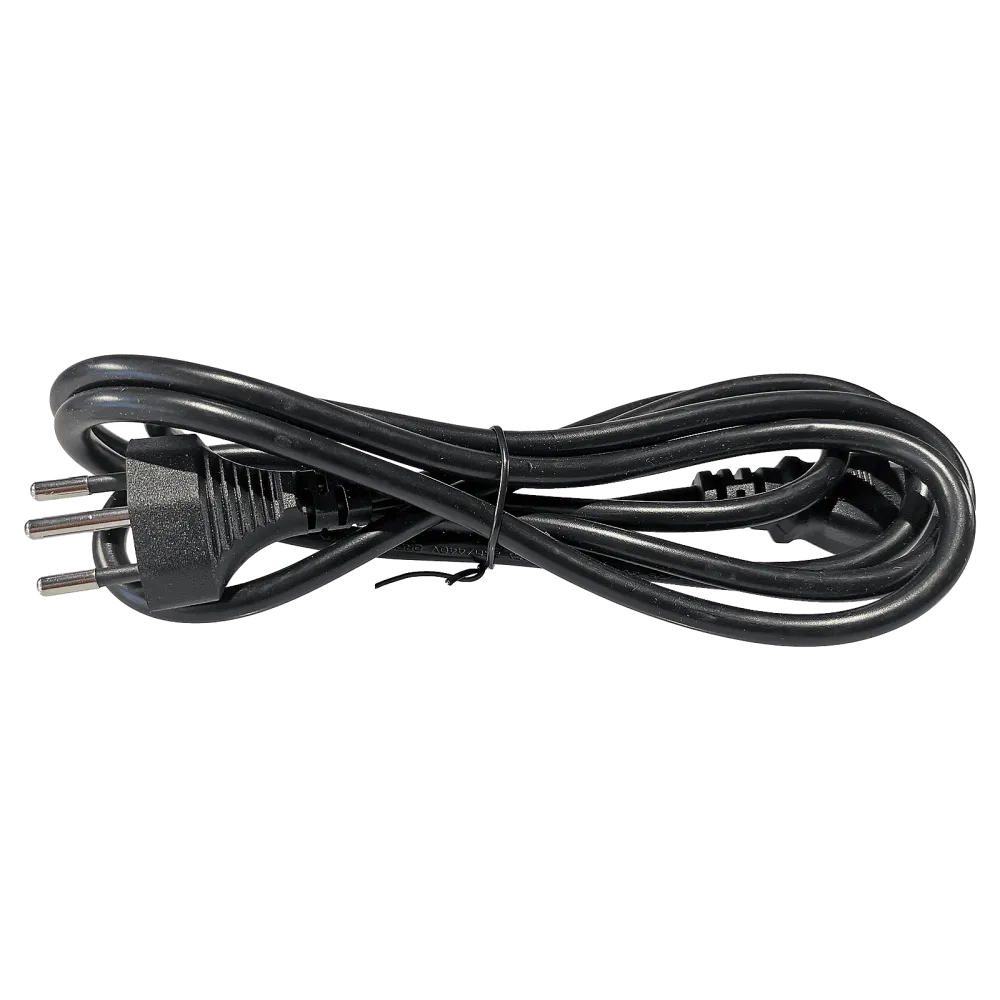

• CH power cable
