Zero Smog TL kit 1 FN

• Variable speed settings to control suction to your specific needs
• Low noise emission levels for quiet workspace
• Automated filter change notification system
• Economical fume extraction system purifies air up to 2 workplaces, included funnel nozzle for applications where a larger area needs to be covered and the funnel nozzle can be placed directly on the work bench
• Fine dust pre-filter F7 and H13 HEPA filter with exceptionally large 2.4m² filter surface for longer service life
• Easily operated and easy filter replacement
• Compatible with Easy Click 60 system for highest flexibility to fit perfectly to your workplace requirements
• For connection to a WX / WT station a T0058768767 WT Hub is needed
• Portable fume extraction unit, for placement under or next to the bench
• Included Easy Click 60 funnel kit, for fume extraction

Technical data

• Noise level (distance 1 m) dB(A): 50
• Applications: hand soldering
• Workplaces: 1-2
• Max vacuum (Pa): 3000
• Capacity (l/min): 190
• Dimensions W x D x H (mm): 335 x 330 x 445

SCOPE OF DELIVERY

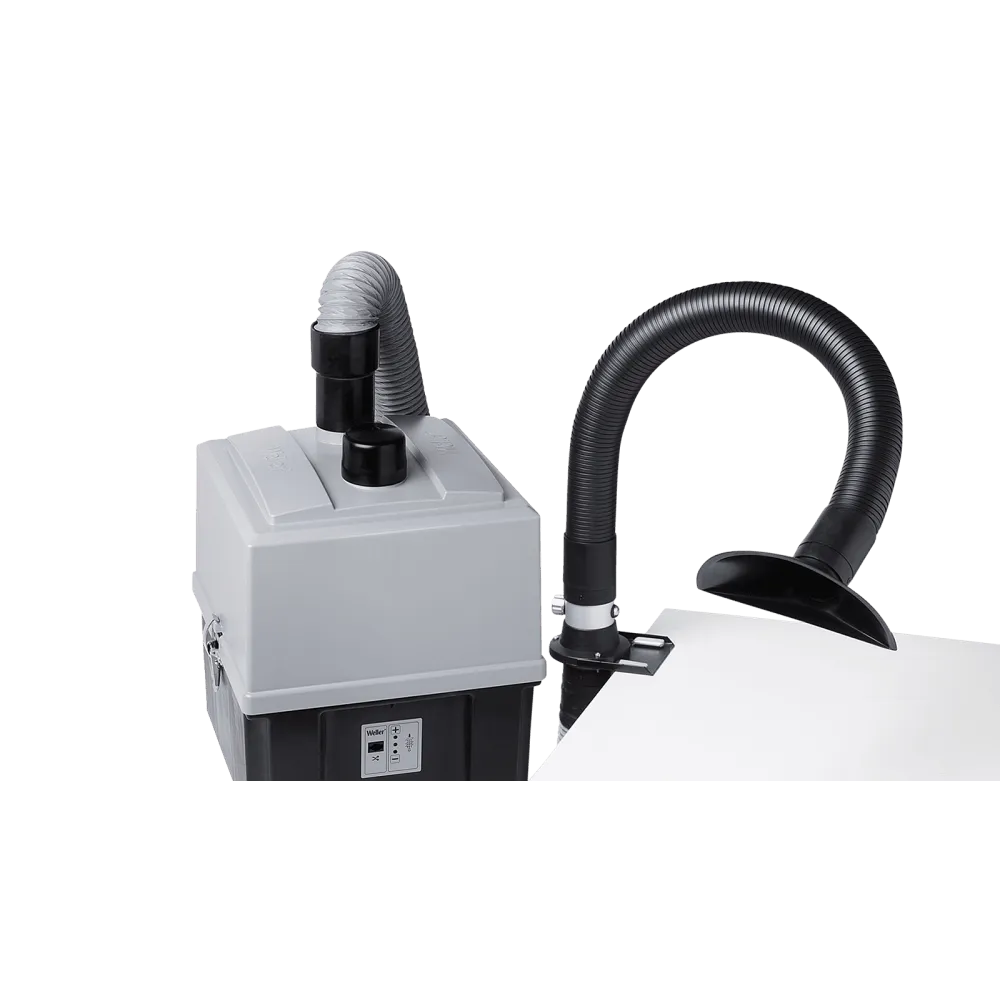

• Zero Smog TL: Fume extraction unit Zero Smog TL
• Extraction hose 3 meter: Easy-Click 60 Extraction hose Ø 60 mm, length: 3 meter
• On-/Off-Switch: ZSRS Zero Smog Remote Switch
• 0F10 flexible Extraction arm: Easy-Click 60 flexible Extraction arm, Ø 60 mm for sloped and funnel nozzles, length 1 m
• ALFA Funnel Nozzle: Easy-Click 60 Funnel nozzle, for flexible and stativ extraction arm, width 230 mm, height 100 mm. To be mounted on an aluminium extraction arm without flexible hose, adapter Z is needed. See extraction arms accessories.
• Easy-Click 60 Stop valve: For table connection of and flex arm and extraction hose including air flow valve and 2 bench mounting brackets

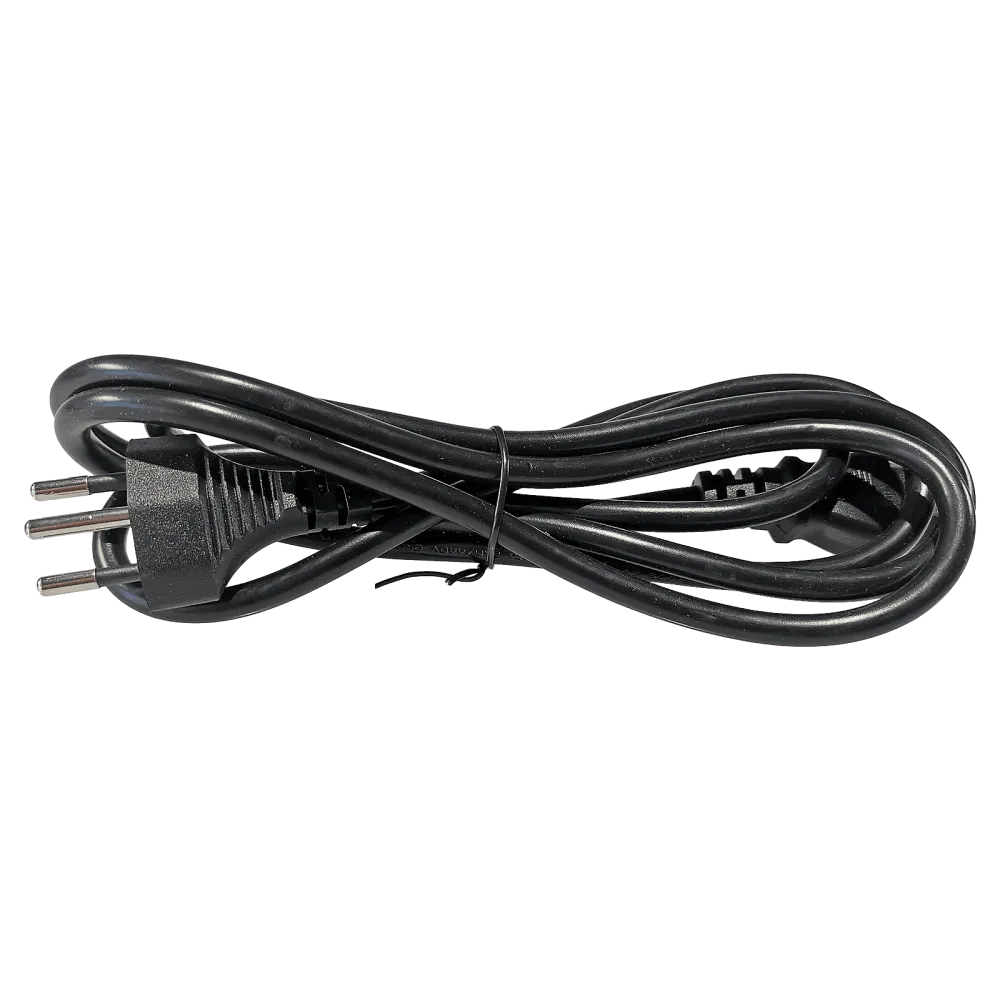

• CH power cable
