About the product

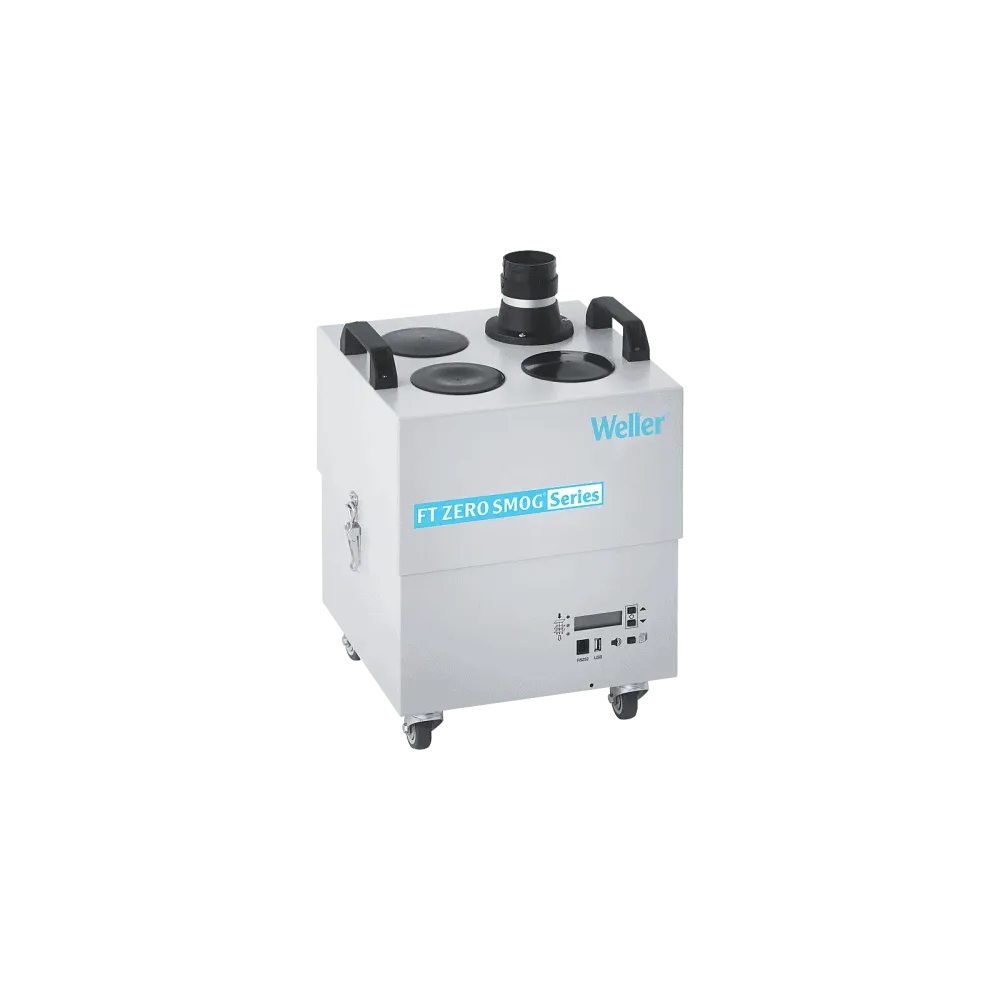

The ZS 4V extraction unit is equipped with a broadband gas filter for extracting adhesive vapors. The device is easy to install and can be operated as a compact, centralized system. A powerful, maintenance-free turbine guarantees continuous fume extraction with a maximum flow rate of up to 230 m3/h. The CFC function automatically regulates the turbine speed and optimizes the required suction power, thereby reducing noise and energy consumption. The extraction unit is suitable for use at up to 4 workstations.
Technical data
- Noise level (distance 1 m) dB(A): 48
- Number of workstations: 1-4
- Max. Vacuum (Pa): 2'700
- Flow rate (m³/h): 230
- Dimensions L x W x H (mm): 345 x 325 x 505
Scope of delivery
- Zero Smog 4V for adhesive vapors
- Fine dust filter F7 for WFE 2S, Zero Smog 4V
- Broadband gas filter for Zero Smog 4V, WFE 2ES, WFE 2S
- CH Mains cable
Product specifications
| Manufacturer | Weller |
| ESD safe | Yes |
| Sets | No |
| Up to max. workstations | 4 |
| Application | Bonding, cleaning, casting |
Data sheets
