About the product

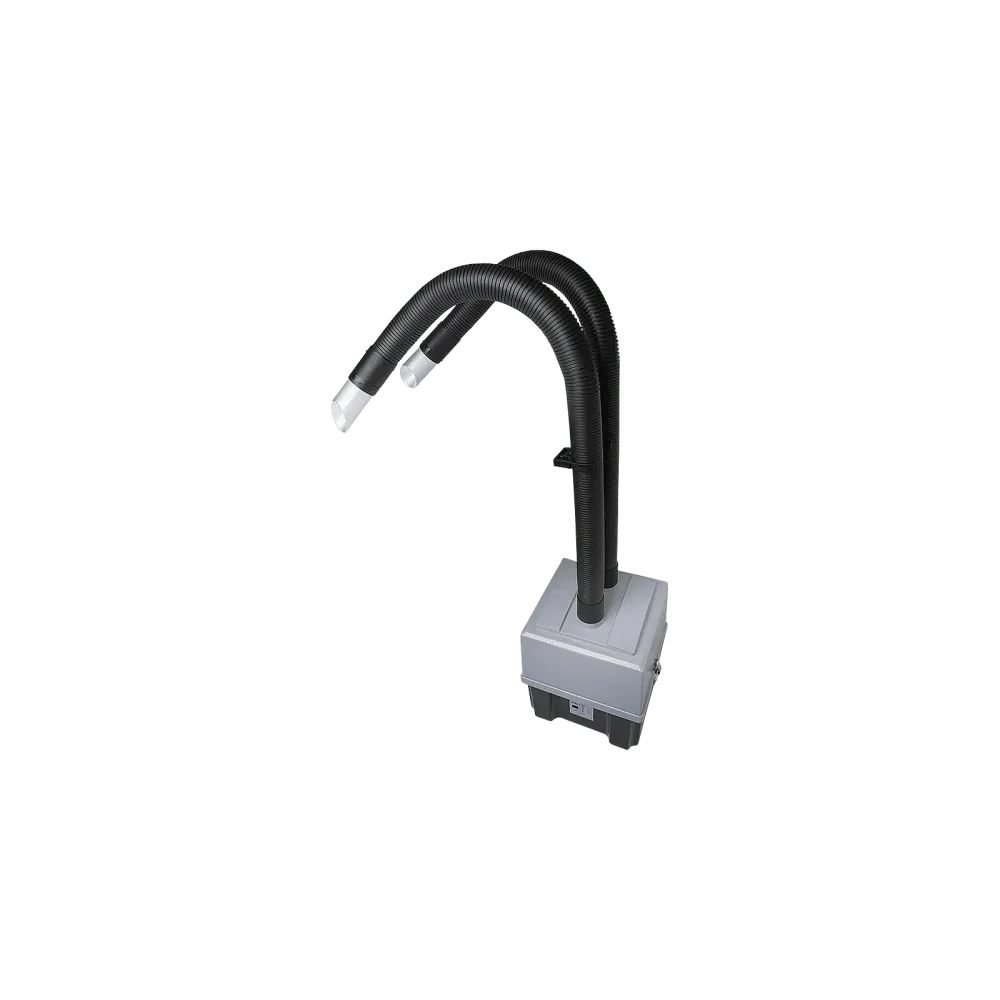

Suction unit with flexible suction arm, suction hose, shut-off valve with table attachment, remote switch and funnel nozzle.

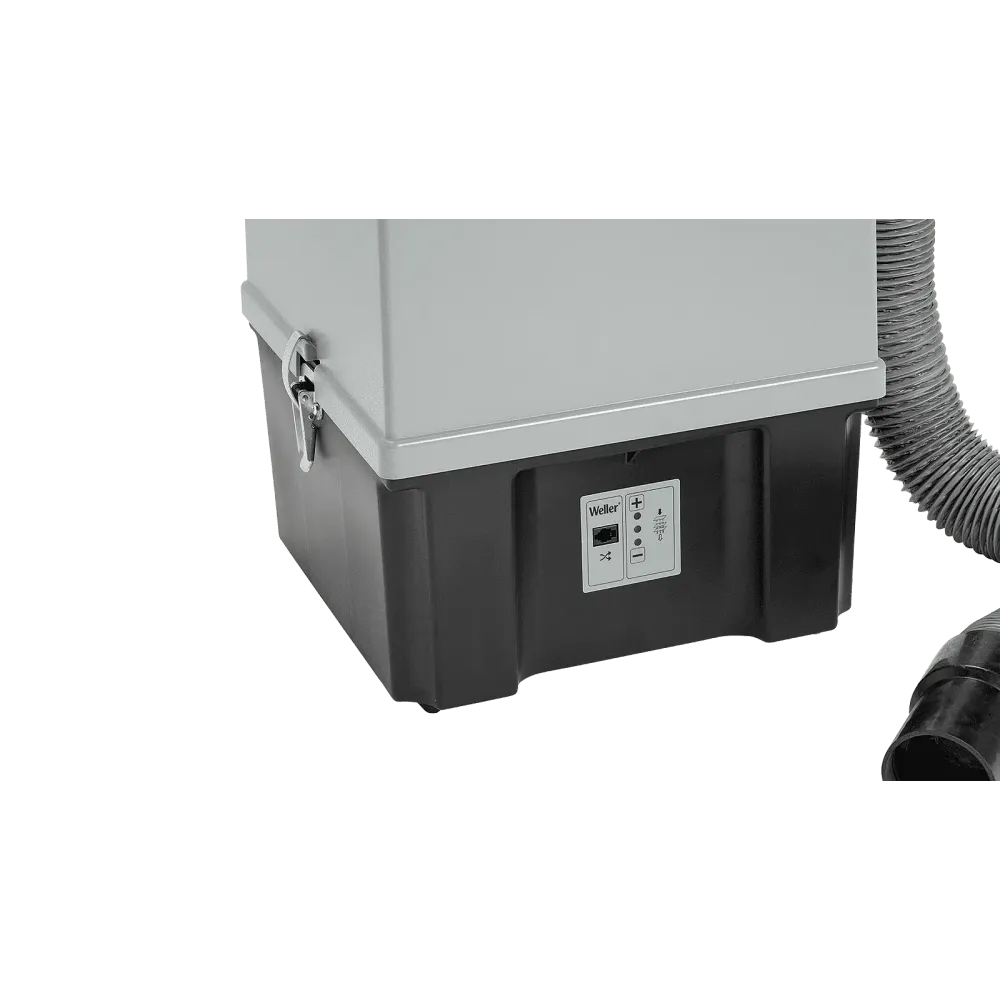

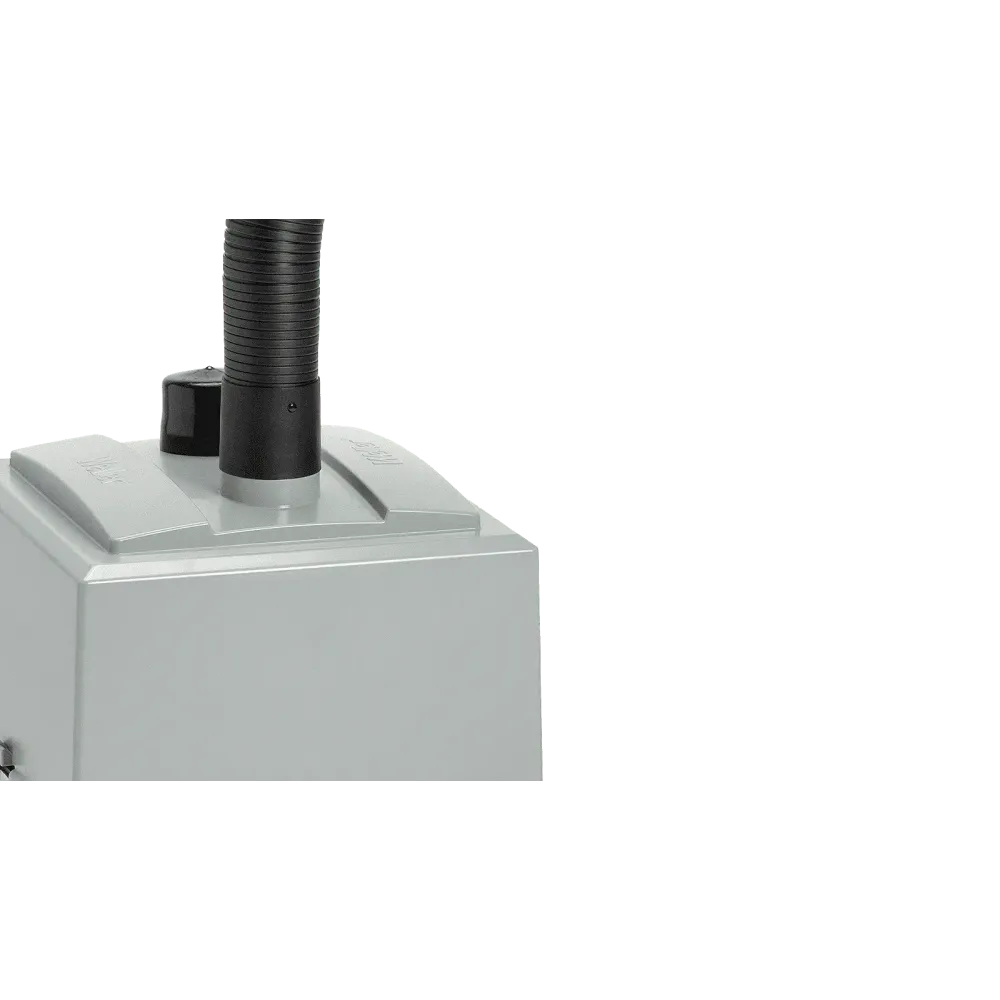

The Zero Smog TL extraction system is specially designed for continuous operation in industrial environments. With its small footprint, it is perfect for use as a small central system and cleans the air at up to 2 workstations. The maintenance-free brushless EC turbine ensures continuous fume extraction.
Technical data
- Noise level (distance 1 m) dB(A): 50
- Applications: Hand soldering
- Number of workstations: 1-2
- Max. Vacuum (Pa): 3000
- Delivery rate (l/min): 190
- Dimensions L x W x H (mm): 335 x 330 x 445
Scope of delivery
- Zero Smog TL
- On/off switch: ZSRS Zero Smog Remote Switch
- 2 x 0F15 Flexible suction arm: suction arm, flexible, diameter 60 mm, for beveled and funnel-shaped nozzles, total length 1.5 m
- 2 x FT-NL angled nozzle: Easy-Click 60 angled nozzle metal Ø 60 mm, length 130 mm
- 2 x mounting clamp
- Fine dust filter F7
- H13 particle filter and activated carbon granulate filter

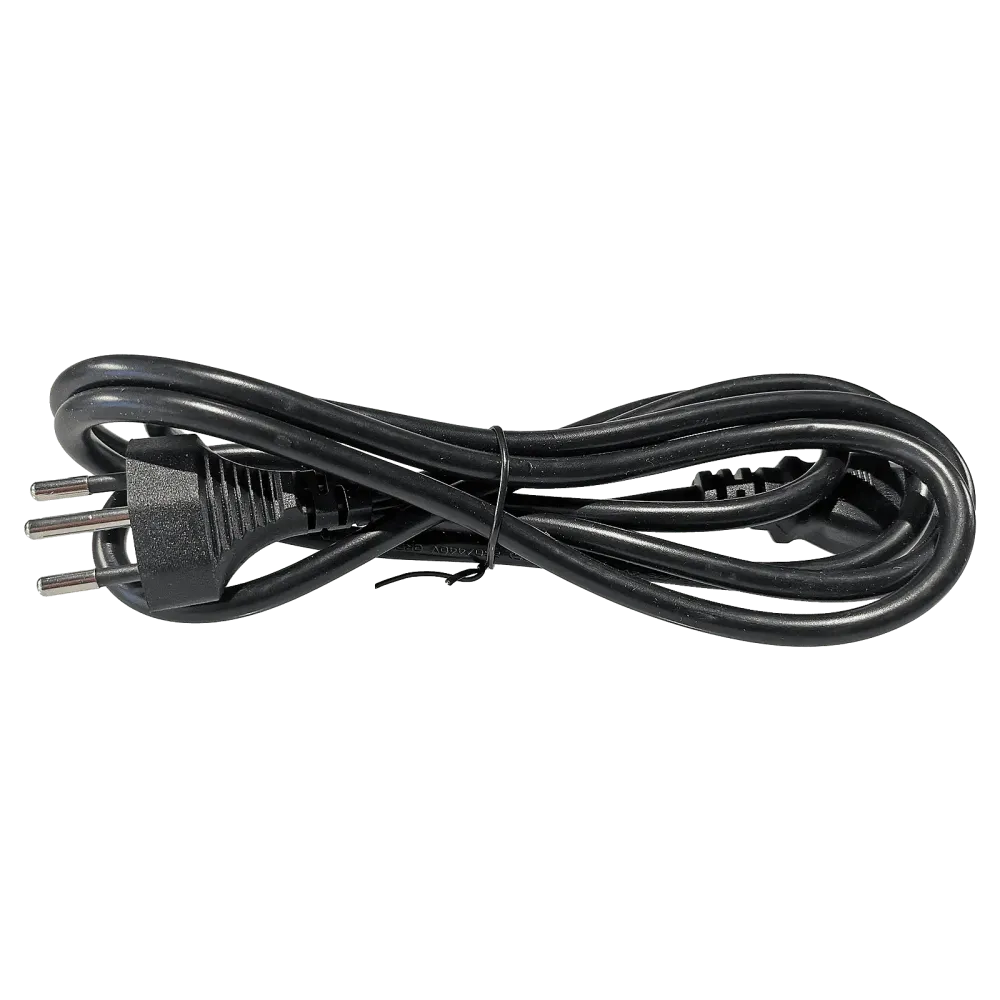

- CH Mains cable
Product specifications
| Manufacturer | Weller |
| Sets | Yes |
| ESD safe | Yes |
| Up to max. workstations | 2 |
| Application | Soldering smoke |
Data sheets
