About the product
The Zero Smog 6V extraction unit for adhesive vapors is extremely user-friendly, both in terms of quick and easy installation and when changing filters. It has low noise emissions and is compact enough to be set up directly in the work area. The high-quality components used keep maintenance costs low and increase the service life. The appliance is equipped with automatic speed control (CFC) to extend the filter service life and increase energy efficiency. This works independently of the number of workstations connected. An external pre-filter can be connected to the Zero Smog 6V to increase the filter capacity. The powerful, maintenance-free turbine with variable speed is electronically controlled.
Technical data
- Noise level (distance 1 m) dB(A): 51
- Applications: Bonding, cleaning, potting
- Number of workstations: 1-8
- Max. Vacuum (Pa): 3000
- Dimensions L x W x H (mm): 460 x 460 x 665
Scope of delivery
- Zero Smog 6V
- Broadband gas filter for adhesive, paint and solvent vapors for Zero Smog 6V, Zero Smog 20T, WFE 4S
- Fine dust filter F7 for Zero Smog 20T, WFE 20D, WFE 4S, Zero Smog 6V, FC 800
- Easy-Click 60 hose connection straight

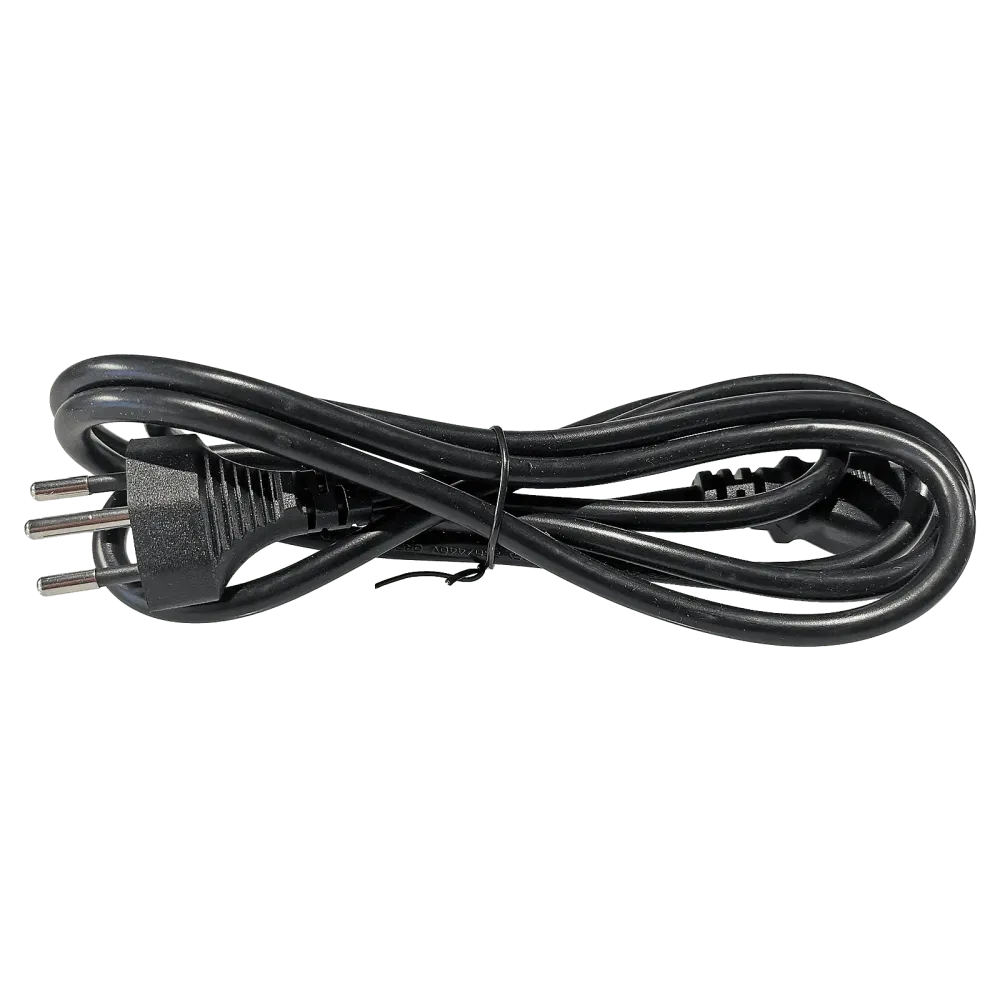

- CH Mains cable
Product specifications
| Manufacturer | Weller |
| ESD safe | Yes |
| Sets | No |
| Up to max. workstations | 8 |
| Application | Bonding, cleaning, casting |
