Item ID: 51397

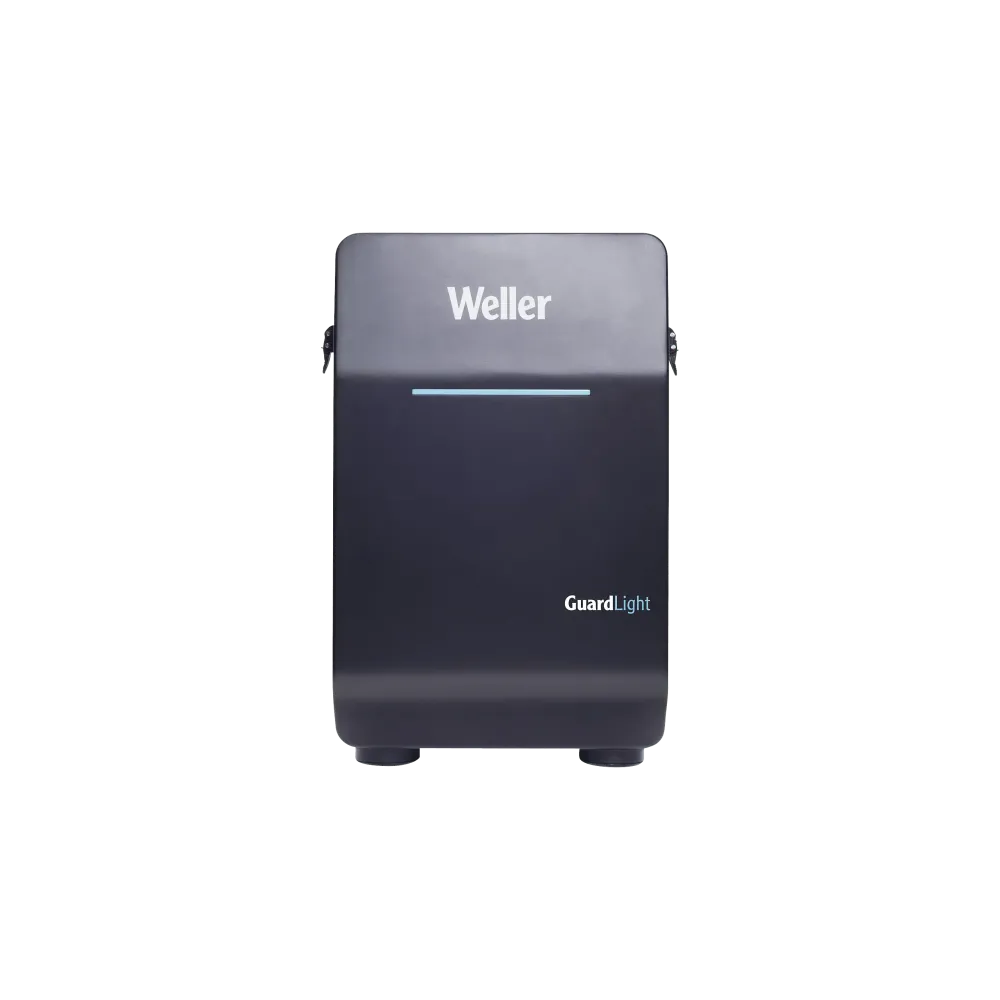

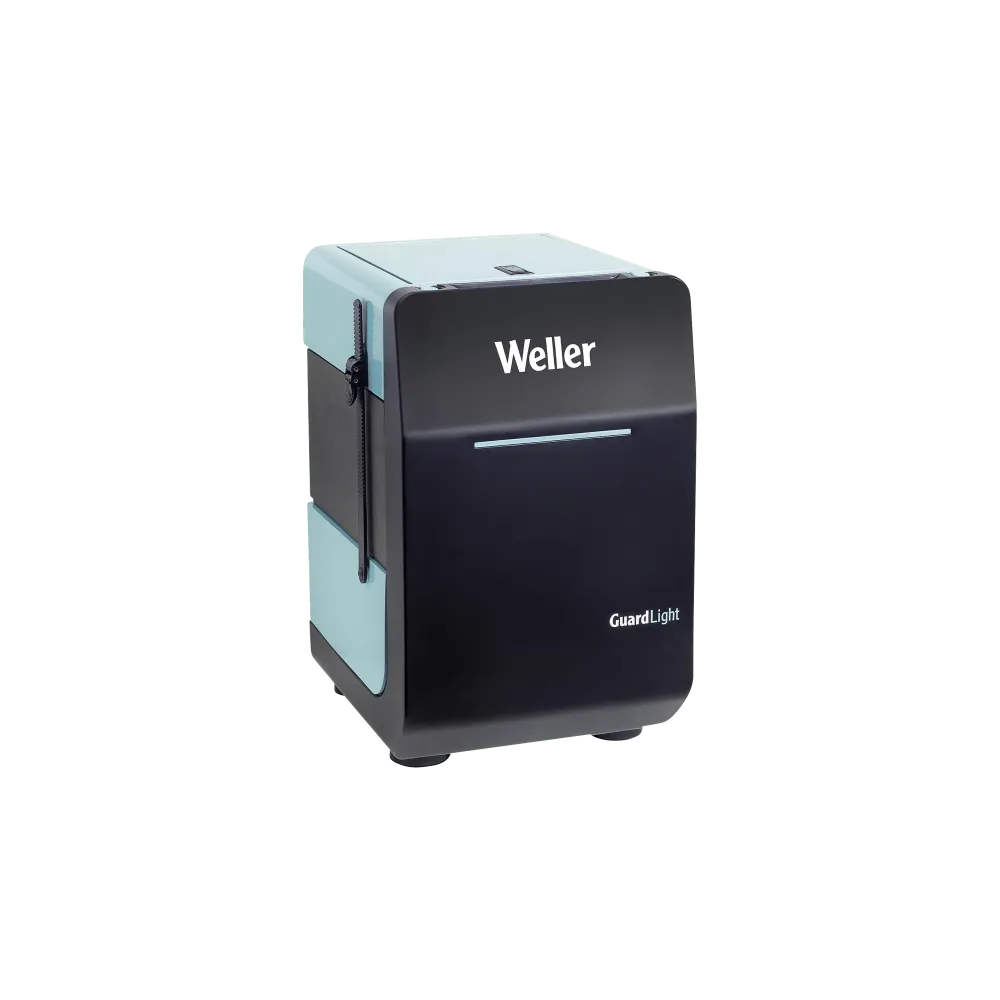

Weller Zero Smog GUARD LIGHT, 74 W

Delivery at your place between May 20 and Jun 24 2025

About the product

You can breathe easy with the Weller ZeroSmog Guard, the quietest filter unit on the market. This first-class filter unit ensures that your workplace remains clean, quiet and fresh. Thanks to its compact design, it can be easily stored under the workbench without taking up valuable space. Your health comes first here. You can concentrate on your work and work in a quiet environment without having to worry about air quality. Improve your working environment and protect your well-being with this efficient and reliable solder fume extraction solution.

  • Clean and healthy air
    . Ensures excellent air quality through highly efficient filtering of soldering particles and gases with a large filter surface (H13 HEPA particle filter, activated carbon).
  • Unique experience
    . The lowest noise level on the market ensures a healthy, pleasant and comfortable working environment.
  • Quick and easy filter change.
    . User-friendly thanks to quick and easy change of pre-filter and main filter.
  • Compact design
    . Saves space with a compact design under the workbench, ideal for use by one person.
  • Powerful extraction
    . The robust fan ensures sufficient suction pressure for the entire service life of the filter and thus a high volume flow for effective capture of all flue gases.
  • Entry-level single-user filter unit for 1 user
    . 60 W, 230 V
    . Filtration at the highest level - for clean and healthy air
    . Highly effective particle and gas filtration
    . Odor removal during soldering
    . Constant suction pressure over the entire service life of the filter thanks to powerful fan
    . Easily accessible on/off switch
    . ESD-safe
    . Compatible with Weller Easy-Click 60 hose system
Scope of delivery
  • ZeroSmog-Guard Light, 230 V

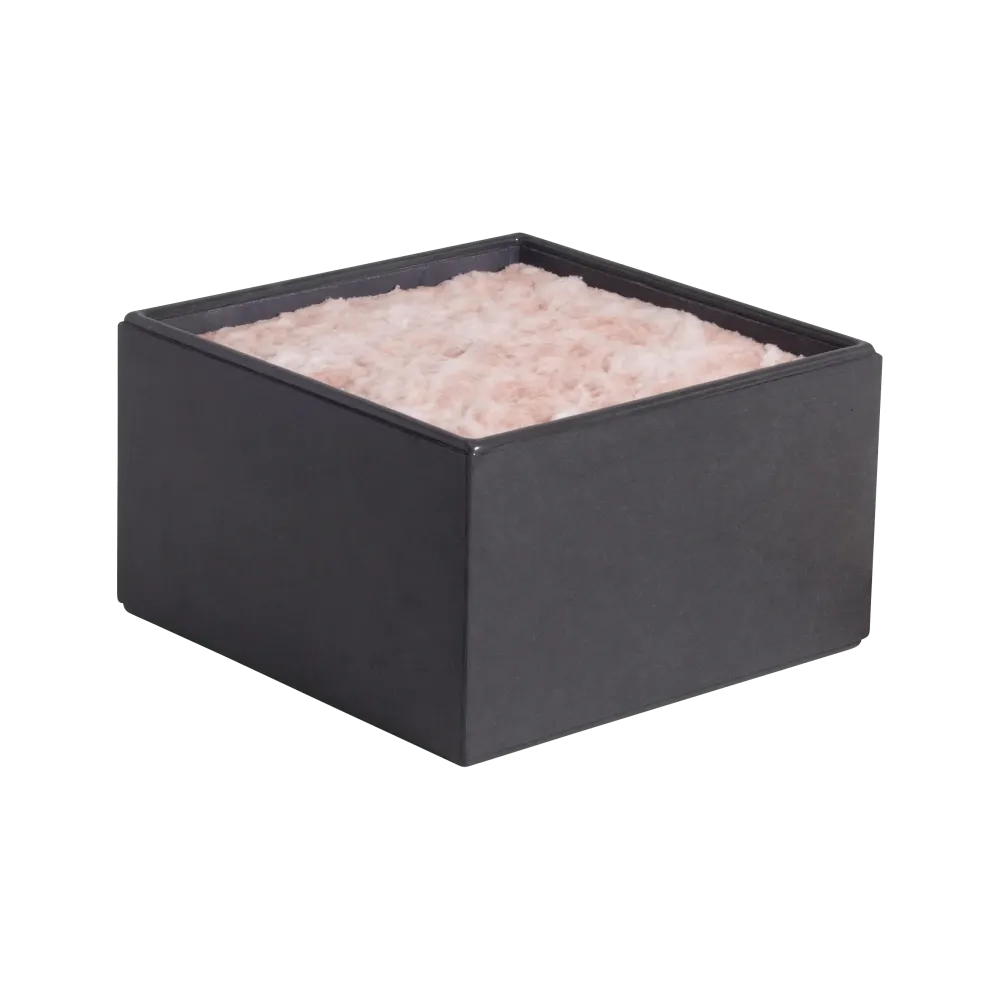

  • Main filter (HEPA H13 and activated carbon)
  • ePM1-75 % Pre-filter

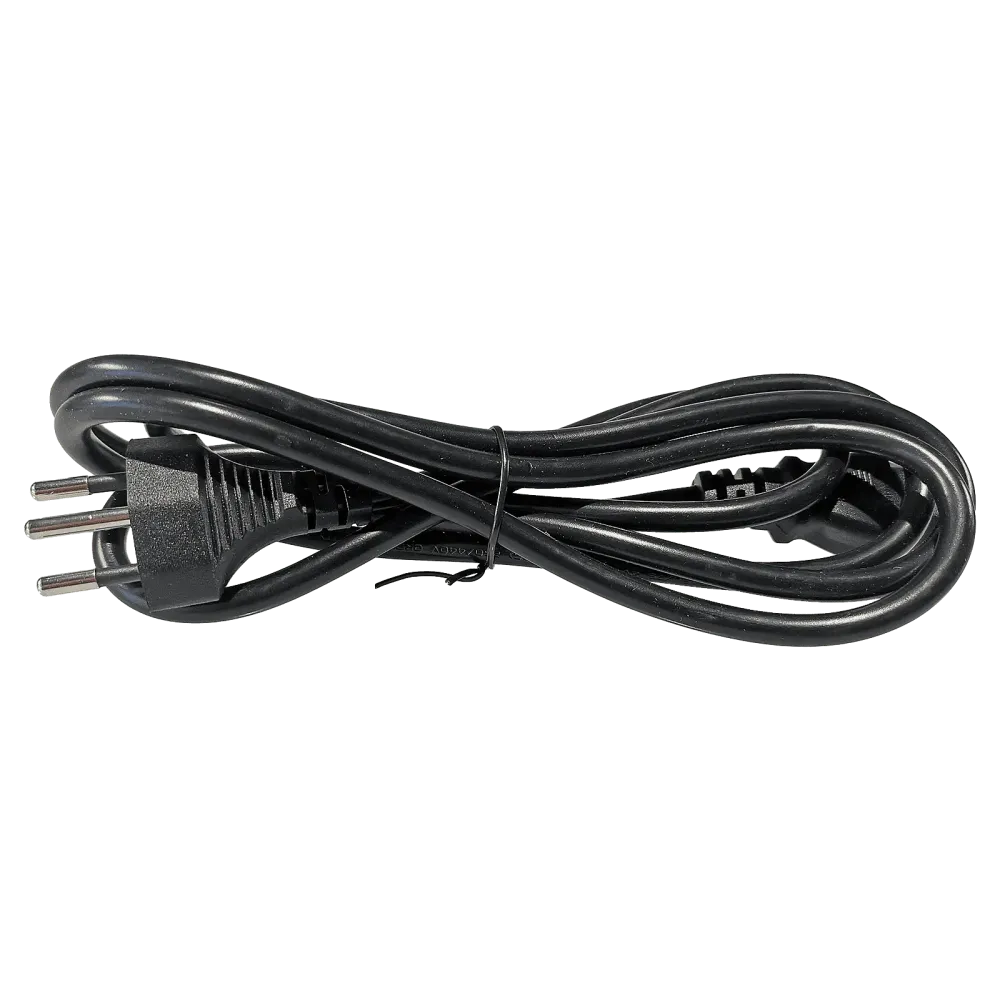

  • CH Mains cable
Technical data
Dimensions L x W x H270 x 336 x 435 mm 10.63 x 13.23 x 17.13 in
ESD-safeYes
Max. Capacity100 (m³/h)
Max vacuum2700 Pa/V
Noise level (distance 1 m) dB(A)70 dBA
Performance74 W (220-240 V~)
UPC037103378811
Tension(220-240 V~) 50/60 Hz

Product specifications

Manufacturer Weller
ESD safe Yes
Sets No
Up to max. workstations 1
Application Soldering smoke
